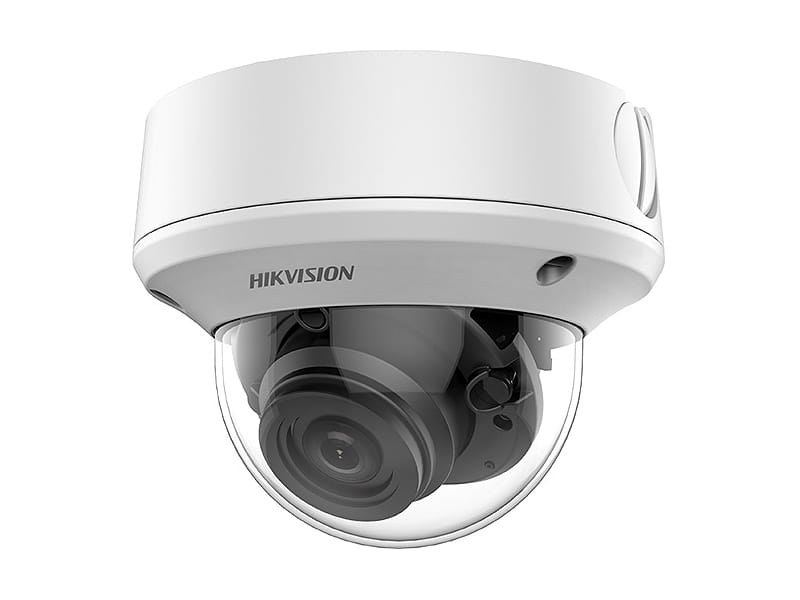

DS-2CE5AD0T-VPIT3ZF(2.7-13.5mm)

Kamera Turbo HD w obudowie kopułowej. Rozdzielczość 2MP (max 1920x1080;30kl/s), Przetwornik progressive scan CMOS, czułość: 0.005Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 70m, obiektyw z moto-zoom: 2.7-13.5mm, kąt widzenia 102st. do 31st.. EXIR 2.0, dzień/noc ICR, 3D DNR, HLC, BLC, Smart IR, IP67, IK10, 3-osiowa regulacja położenia. Funkcje obrazu: jasność, ostrość, odbicie lustrzane. 1 analogowe wyjście HD wideo, 4w1 format wideo (TVI/AHD/CVI/CVBS). Wymairy 84.5 mm x 92 mm x 255.1 mm. Waga 830g. Zakres temperatur: -40st.~60st.. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
* 2 MP high-performance CMOS
* Ultra low light
* 1920 x 1080 resolution
* 2.7 mm to 13.5 mm motorized varifocal lens, auto focus
* EXIR 2.0, smart IR, up to 70 m IR distance
* OSD menu, 3D DNR, day/night switch
* 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
* IP67, IK10
* Up the coax (HIKVISION-C)



DS-2CE5AD0T-VPIT3ZF
2 MP EXIR Dome Camera






Specification
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Video Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x1080 (V)
Min. Illumination 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.7 mm to 13.5 mm
Horizontal Field of View 102° to 31°
Lens Mount Φ 14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355°
Synchronization Internal synchronization
Menu
AGC High/Medium/Low
D/N Mode Auto/Color/BW (Black and White)
Image Mode STD/HIGH-SAT
HLC (Highlight Compensation) Yes
BLC (Backlight Compensation) Yes
3D DNR Level 1 to 9
Language English
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption
Max. 7.7 W
-A: Max. 9.7 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 70 m
Dimensions 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
Weight
Approx. 830 g (1.83 lb.)
-A: Approx. 870 g (1.92 lb.)




Order Model
DS-2CE5AD0T-VPIT3ZF
Dimension








Accessory







DS-1273ZJ-140-DM45
Wall Mount
DS-1280ZJ-DM45
Junction Box
DS-1281ZJ-DM45
Inclined Ceiling Mount
DS-1271ZJ-140-DM45
Pendant Mount





DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
