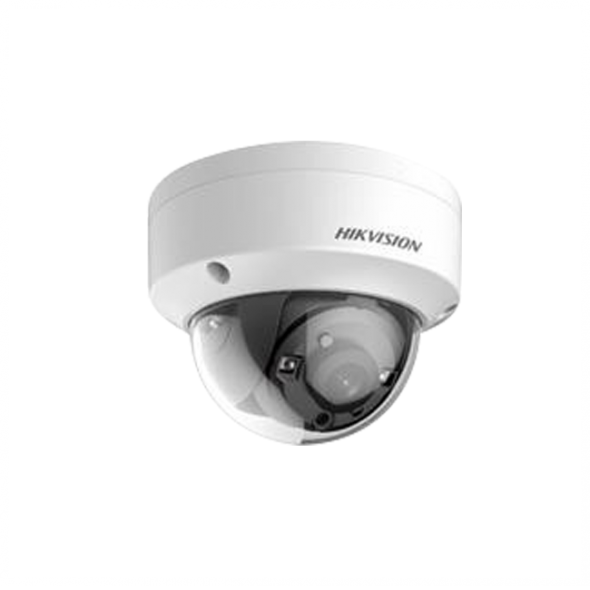

DS-2CE57U7T-VPITF(6mm)

Kamera TurboHD w obudowie kopułowej, rozdzielczość 8.3MP @ 12.5fps (domyślnie), 5MP @ 20fps, 4MP @ 25fps (P130dB Prawdziwe WDR, 3D DNR, EXIR, 60m IR, Zewnętrzna kula wylotowa, ICR, 0,003 Lux / F1.2, 12VDC, Inteligentne IR, 130dB True WDR , 3D DNR, menu OSD (w górę kabla koncentrycznego), obiektyw IP67,6mm, obsługa wyjścia sygnału wideo TVI / AHD / CVI / CVBS...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
 8.29 MP, 3840 x 2160 resolution
 Ultra-low light
 130 dB true WDR, 3D DNR
 2.8 mm, 3.6 mm, 6 mm fixed lens
 Smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67, IK10

DS-2CE57U7T-VPITF
8 MP Ultra-Low Light Camera






Camera
Image Sensor 8.29 MP CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,
1080P@30fps
AHD: 8MP@12.5fps, 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps
CVBS: P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm)
Lens Mount M16
Day & Night ICR
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode Global/BLC/HLC/WDR
Noise Reduction 3D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 4.2 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Dimensions Φ 111 mm x 82.4 mm (Φ 4.4" x 3.2")
Weight Approx. 480 g (1.06 lb.)
Specification



Order Model
DS-2CE57U7T-VPITF
Dimension


Ø

1
0
0
.
4

m
m

(
4
'
'
)
1
7
.
2

m
m

(
0
.
6
8
"
)
47.2 mm (1.86")
8.7 mm (0.34")
3
2
.
5

m
m

(
1
.
2
8
"
)
38.6 mm (1.52")
Ø 111 mm (4.4'')
8
2
.
4

m
m

(
3
.
2
'
'
)
Ø 79.1 mm (3.1'')
3-5.0 mm (0.2")




Accessory









DS-1259ZJ
Inclined Ceiling Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110B
Wall Mount
DS-1272ZJ-110
Wall Mount










DS-1280ZJ-DM18
Junction Box
DS-1258ZJ
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
