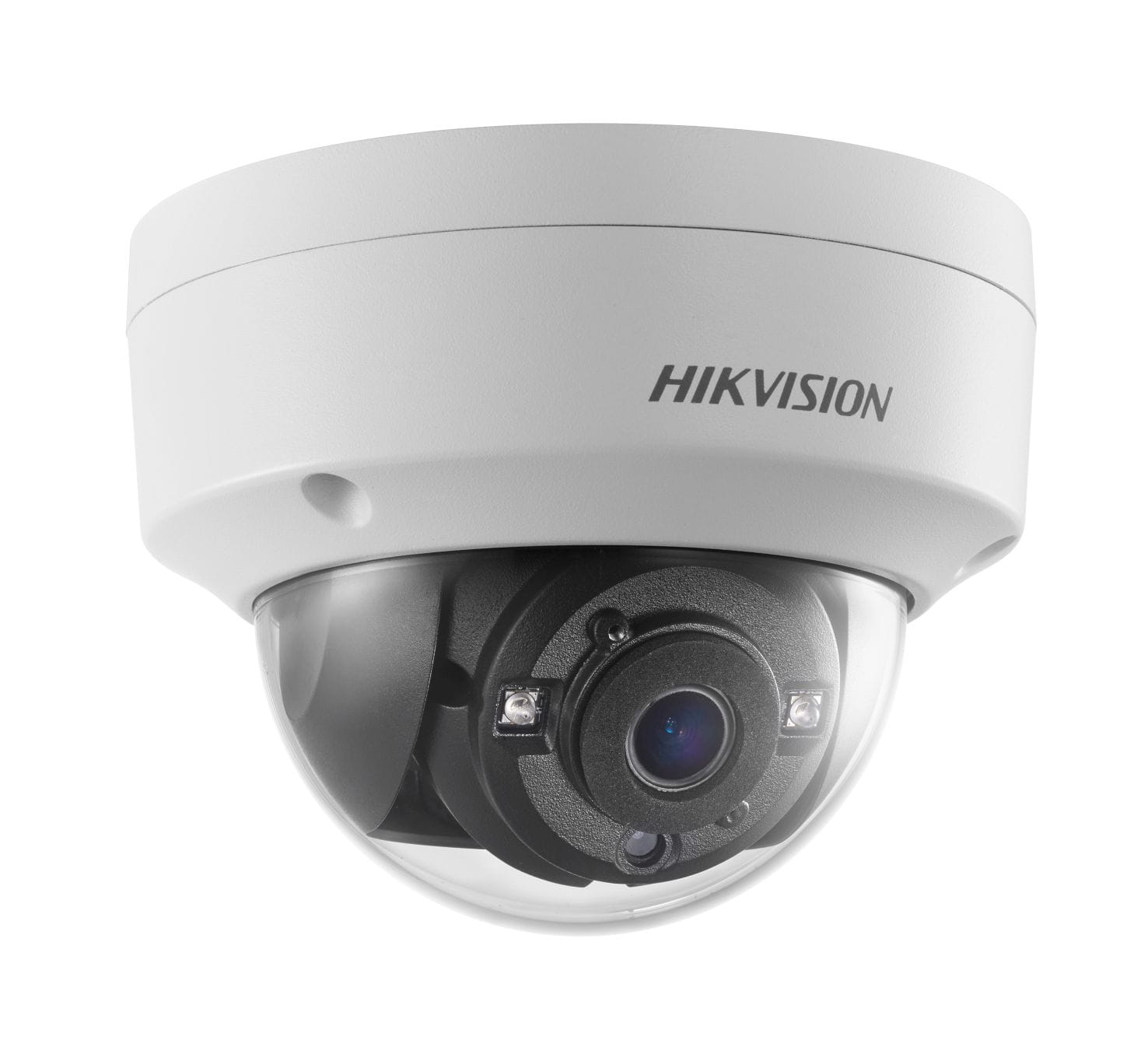

DS-2CE57U1T-VPITF(2.8mm)

Kamera Turbo-HD Hikvision w obudowie kopułowiej. Rozdzielczość 8.3MP @12.5fps, Przetwornik 8MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, promiennik typu EXIR 2.0, dzień/noc ICR, Smart IR, DWDR, AGC, DNR, WB (ATW/MWB), BLC, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw: 2.8mm, kąt widzenia 45st.. IP67, IK10, 3-osiowa regulacja położenia. Wymiary: śr.111x82.4mm, waga 350g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 8.29 MP high performance CMOS
 3840 x 2160 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67, IK10
 Up the coax (HIKVISION-C)

DS-2CE57U1T-VPITF
8 MP Dome Camera






Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
DWDR (Digital Wide Dynamic Range) 105 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 5.3 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 111 mm x 82.4 mm (Ø 4.4" x 3.2" )
Weight Approx. 495 g (1.09 lb.)
Specification



Order Model
DS-2CE57U1T-VPITF
Dimension


Ø

1
0
0
.
4

m
m

(
4
'
'
)
1
7
.
2

m
m

(
0
.
6
8
"
)
47.2 mm (1.86")
8.7 mm (0.34")
3
2
.
5

m
m

(
1
.
2
8
"
)
38.6 mm (1.52")
Ø 111 mm (4.4'')
8
2
.
4

m
m

(
3
.
2
'
'
)
Ø 79.1 mm (3.1'')
3-5.0 mm (0.2")




Accessory









DS-1259ZJ
Inclined Ceiling Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110B
Wall Mount
DS-1272ZJ-110
Wall Mount










DS-1280ZJ-DM18
Junction Box
DS-1258ZJ
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
