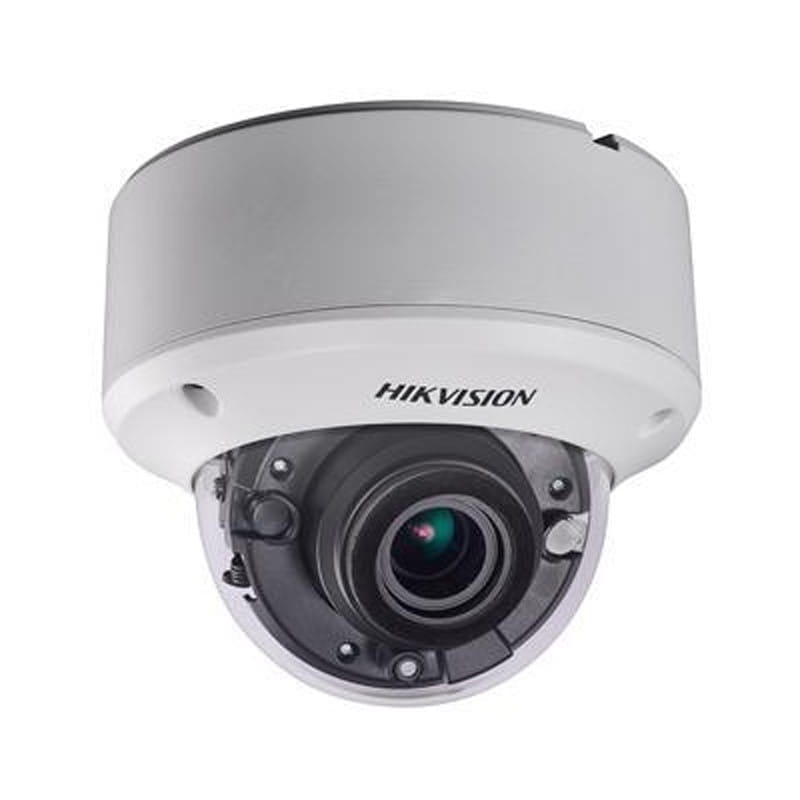

DS-2CE56H0T-VPITE(3.6mm)

Kamera Turbo-HD Hikvision w obudowie typu turret. Przetwornik 5MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, EXIR, dzień/noc ICR, DNR, Smart IR, obiektyw: 3.6mm, kąt widzenia 103st.. IP66, 3-osiowa regulacja położenia, wandaloodporna. Wymairy śr.89.6x59.1mm. Waga 340g. Zakres temperatur: -40st.~60st.. Zasilanie 12VDC/PoC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 20 m IR distance
 OSD menu, 2D DNR, DWDR
 PoC.af
 IP67, IK10
 Up the coax (HIKVISION-C)

DS-2CE56H0T-VPITE
5 MP Dome Camera






Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355°
Synchronization Internal synchronization
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, PoC.af
Power Consumption Max. 5.4 W
Protection Level IP67, IK10
Material Metal
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 111 mm x 82.4 mm (Ø 4.4" x 3.2")
Weight Approx. 505 g (1.11 lb.)



Order Model
DS-2CE56H0T-VPITE
Dimension


Ø

1
0
0
.
4

m
m

(
4
'
'
)
1
7
.
2

m
m

(
0
.
6
8
"
)
47.2 mm (1.86")
8.7 mm (0.34")
3
2
.
5

m
m

(
1
.
2
8
"
)
38.6 mm (1.52")
Ø 111 mm (4.4'')
8
2
.
4

m
m

(
3
.
2
'
'
)
Ø 79.1 mm (3.1'')
3-5.0 mm (0.2")




Accessory










DS-1259ZJ
Inclined Ceiling Mount
DS-1271ZJ-110
Pendant Mount
DS-1272ZJ-110B
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount







DS-1280ZJ-DM18
Junction Box
DS-1258ZJ
Wall Mount
