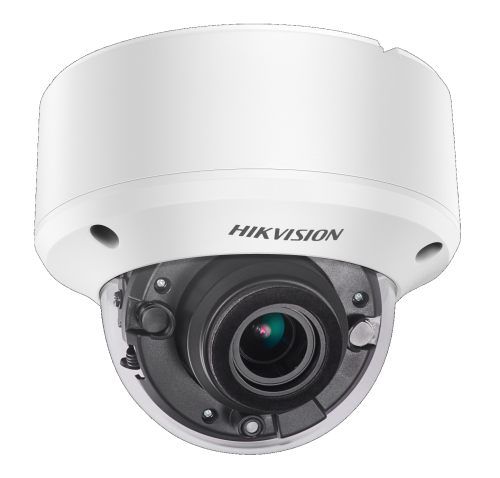

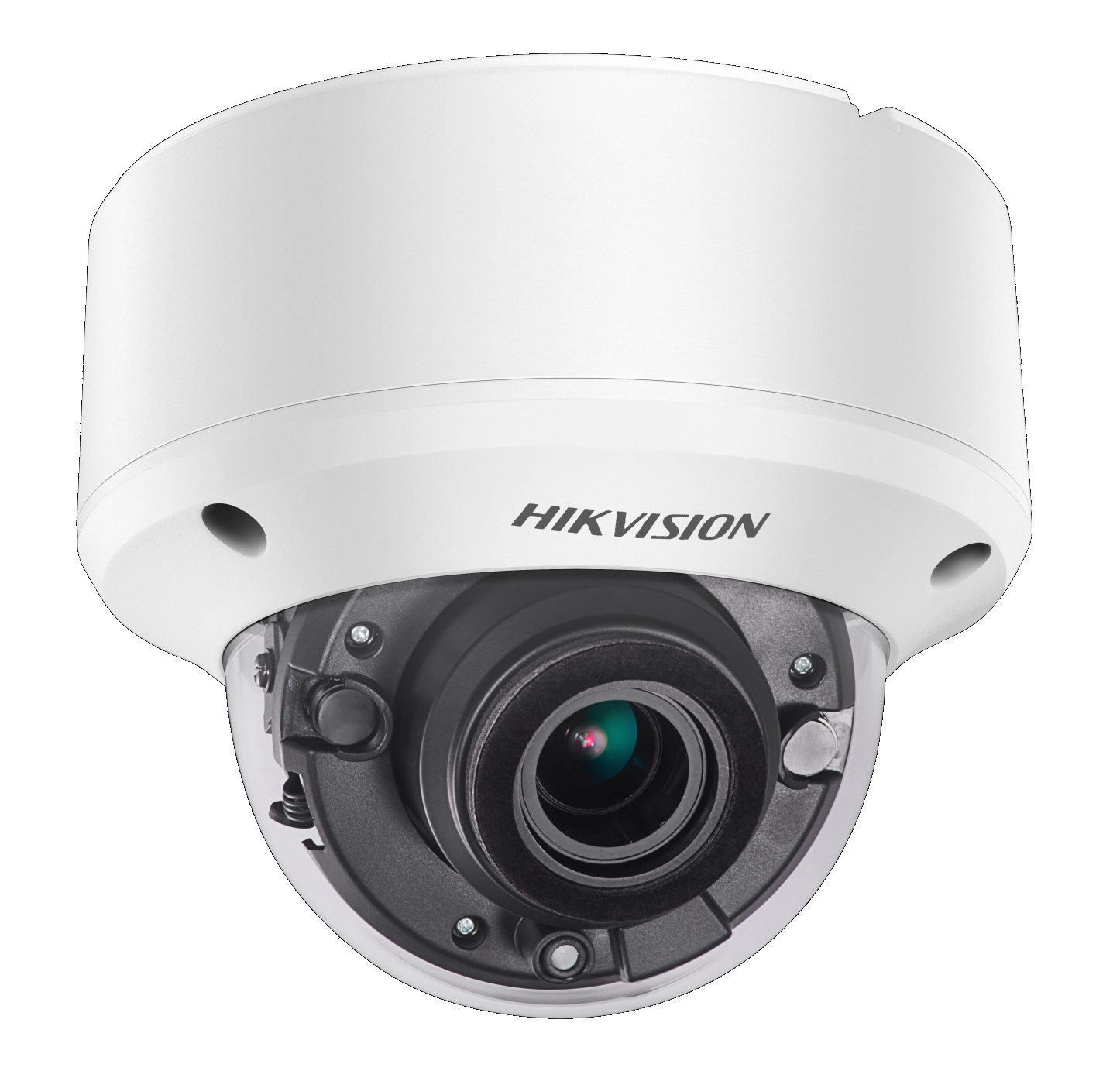

DS-2CE56H0T-AITZF(2.7-13.5mm)

Kamera Turbo-HD Hikvision w obudowie kopułowej. Rozdzielczość2560x1944@20kl/s, 4MP@25kl/s (P)30kl/s(N) Przetwornik 5MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR, dzień/noc ICR, Smart IR, DWDR, AGC, DNR, WB (ATW/MWB), BLC, menu OSD, obiektyw: 2.7-13.5 mm, kąt widzenia 95.7st.-29.1st., 3-osiowa regulacja położenia. Wymiary: śr.136x101.9mm, waga 445g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC & 24 VAC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 40 m IR distance
 OSD menu, 2D DNR, DWDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 Up the coax (HIKVISION-C)

DS-2CE56H0T-(A)ITZF
5 MP Dome Camera






Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 95.7° to 29.1°
Lens Mount Φ 14






Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±15%, 24 VAC ±15%
Power Consumption
DS-2CE56H0T-ITZF: Max. 4.4 W
DS-2CE56H0T-AITZF: Max. 6.0 W
Material Plastic
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 136 mm x 101.9 mm ( Ø 5.35" x 4.01")
Weight
DS-2CE56H0T-ITZF: 410 g (0.90 lb.)
DS-2CE56H0T-AITZF: 445 g (0.98 lb.)


Order Model
DS-2CE56H0T-ITZF, DS-2CE56H0T-AITZF
Dimension






8
3
.
5

m
m

(
3
.
2
9
"
)
46 mm (1.81")
99.9 mm (3.93")
1
0
1
.
9

m
m

(
4
.
0
1
"
)
Ø 136 mm (5.35")




Accessory









DS-1275ZJ-SUS
Vertical Pole Mount
DS-1273ZJ-130B
Wall Mount
DS-1276ZJ-SUS
Corner Mount
DS-1271ZJ-130
Pendant Mount











DS-1273ZJ-130
Pendant Mount
DS-1249ZJ
In-ceiling Mount










0100001080116
