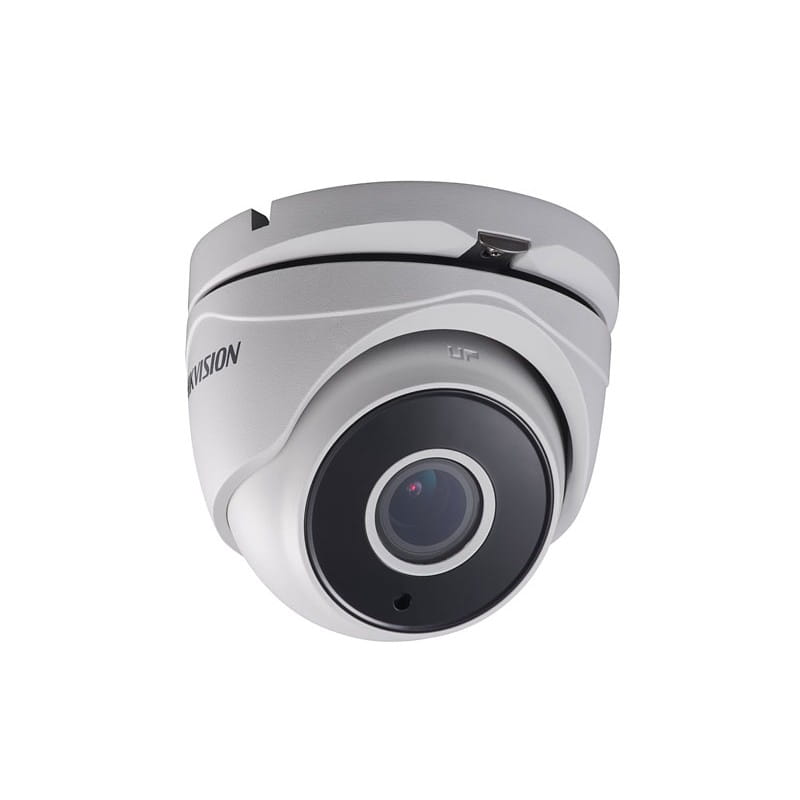

DS-2CE56D8T-IT1F(6mm)

Kamera TurboHD w obudowie kopułowej, rozdzielczość 2M Smart FSI CMOS, EXIR, 30 m IR, zewnętrzny kopułka Vandal Proof, ICR, 0,003 Lux / F1.2, 12 VDC, Smart IR, 3D DNR, menu OSD , 130dB True WDR, IP67, Obiektyw 2.8/3.6/6mm, obsługa wyjścia sygnału wideo TVI / AHD / CVI / CVBS...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 130 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE56D8T-IT1F
2 MP Ultra-Low Light EXIR Turret Camera



Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm, fixed focal lens
Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Support
Day/Night Mode Auto/Color/BW (Black White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D/2D
Language English
Functions Brightness, Sharpness, Mirror, Smart IR, HLC
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 2.6 W
Ingress Protection IP67
Material
Enclosure: Plastic
Main Body: Metal
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 110 mm x 93.2 mm (Φ 4.33" x 3.67")
Weight Approx. 315 g (0.69 lb.)
Specification


Order Models
DS-2CE56D8T-IT1F
Dimension
3-Φ 4.2 mm (0.17")
120°
93
.
2
mm
(
3
.
67
")
Φ 85 mm (3.35")
Φ 110 mm
(4.33")





Accessory



DS-1272ZJ-110-TRS
Wall Mount

DS-1275ZJ-SUS
Vertical Pole Mount

DS-1276ZJ-SUS
Corner Mount

DS-1280ZJ-S
Junction Box



DS-1281ZJ-S
Inclined Ceiling Mount
