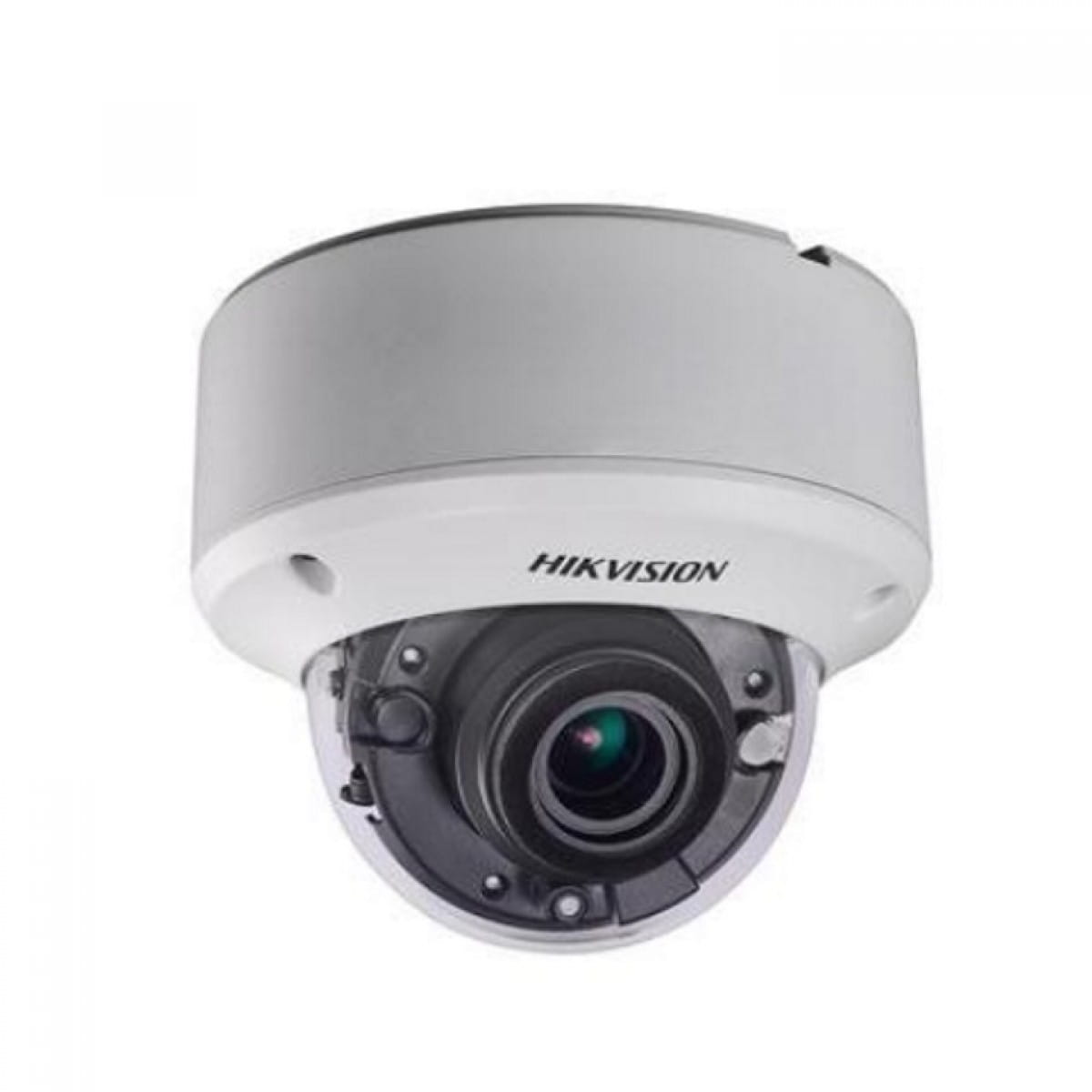

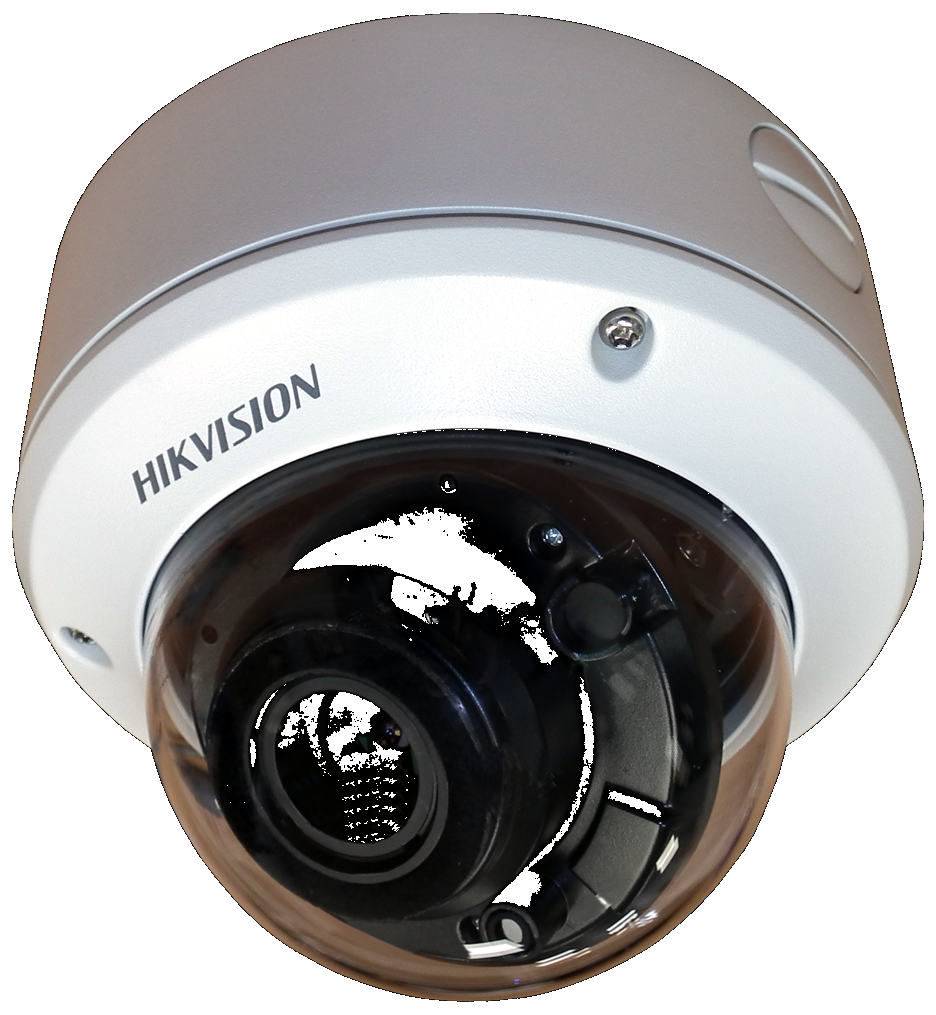

DS-2CE56D7T-AVPIT3Z(2.8-12mm)

Kamera Turbo-HD Hikvision w obudowie kopułowej. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR, dzień/noc ICR, WDR 120dB, Smart IR, AGC, DNR, WB (ATW/MWB), BLC, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw typu motozoom: 2.8-12mm, kąt widzenia 35.1°~114.5°. IP66, IK10. 3-osiowa regulacja położenia. Wymiary: śr.145.2x124.1mm, waga około 1600g. Temperatura pracy -40°C~60°C, Zasilanie 12 VDC/ 24VAC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56D7T-(A)VPIT3Z
HD1080P Motorized VF Vandal Proof EXIR Dome Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* 2.8-12mm motorized vari-focal lens
* True Day/Night
* OSD menu, DNR, Smart IR
* True WDR, up to 120dB
* EXIR technology, up to 40m IR distance
* IP66 weatherproof & vandal proof
* Up the Coax(HIKVISION-C)
Key Features










Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1928(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25s to 1/50,000s
Lens Motorized VF lens; 2.8 - 12 mm @ F1.2
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° - 340°; Tilt:0° - 75°; Rotate: 0° - 355°
Synchronization Internal Synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
AGC Support
D/N Mode Color/BW/SMART
White Balance ATW/ MWB
BLC Support
Functions Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%; -A: 12 VDC/24 VAC±15%
Power Consumption Max. 4.5W; -A: Max. 6.5W
Protection Level IP66
IR Range Up to 40m
Impact Protection IK10
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions φ145.2mmx124.1mm (φ5.72”x4.89”)
Weight Approx. 1600g ( 3.53lb)




Dimensions


DS-1273ZJ-140 DS-1275ZJ DS-1276ZJ DS-1271ZJ-140
Wall Mounting Vertical Pole Mounting Corner Mounting Pendant Mounting



DS-1273ZJ-140B DS-1241ZJ DS-1240ZJ
Wall Mounting In-ceiling Mounting Inclined Ceiling Mounting


Order Models
46
(
1
.
8
''
)
83.5(3.3'')
46(1.8'')
83
.
5
(
3
.
3
''
)
124
.
1
(
4
.
9
)
Unit: mm

20160127
Accessories
DS-2CE56D7T-VPIT3Z, DS-2CE56D7T-AVPIT3Z
