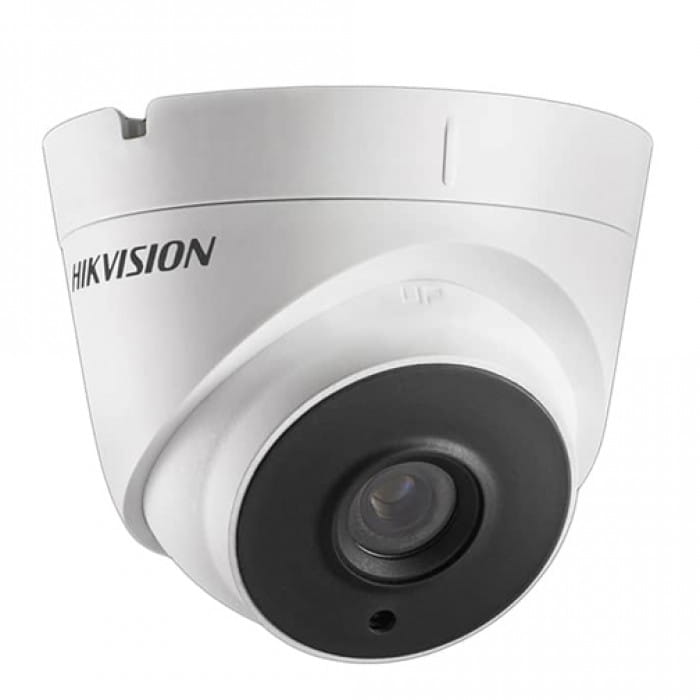

DS-2CE56D0T-IT1F(2.8mm)(C)

Kamera HD-TVI/AHD/CVI/CVBS w obudowie kopułowej. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, dzień/noc ICR, DNR, Smart IR, obiektyw: 2.8mm. 3-osiowa regulacja położenia. Wymairy śr.110x93.2mm. Waga 350g. IP66. Zakres temperatur: -40st.~60st.. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56D0T-IT1F
2 MP Camera




• 2 MP, 1920 x 1080 resolution
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• Smart IR, up to 30 m IR distance
• IP67



Specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) x 1080 (V)

Frame Rate
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeDWDR/BLC/HLC/Global
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Smart IR
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 2.2 W
Protection LevelIP67
MaterialPlastic
IR RangeUp to 30 m
CommunicationHIKVISION-C


General
DimensionsΦ 110 mm x 93.2 mm (Φ 4.33" x 3.67")
WeightApprox. 211 g (0.47 lb.)

Available Model
DS-2CE56D0T-IT1F
Dimension

Accessory

DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-S
Junction Box















DS-1281ZJ-S
Inclined Ceiling Mount
DS-1280ZJ-TR13
Junction Box
