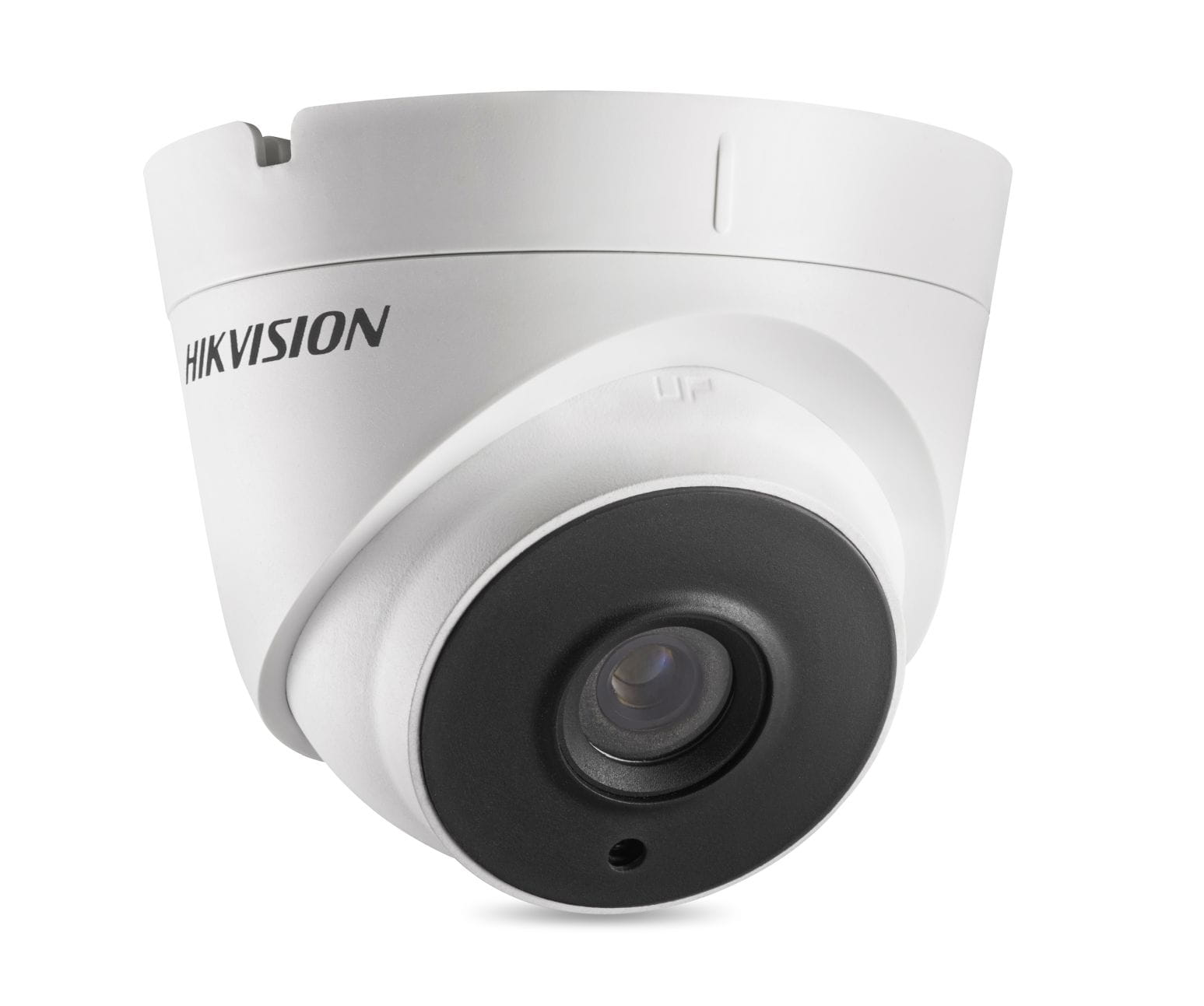

DS-2CE56D0T-IT1E(3.6mm)

Kamera Turbo HD w obudowie typu turret . Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, diody EXIR, dzień/noc ICR, DNR, Smart IR, obiektyw: 3.6mm, kąt widzenia 82.63st.. IP66, 3-osiowa regulacja po...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56D0T-IT1F
HD 1080p EXIR Turret Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* True Day/Night,
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66


Key Features







Specifications




Camera
Image Sensor 2 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimension Φ 110 mm x 93.2 mm (4.33" x 3.67")
Weight 350 g (0.77 lb.)
Order Model
DS-2CE56D0T-IT1F







9
3.
2

m
m

(
3
.
6
7"
)
3-Φ 4.2 mm (0.17")
1
2
0

°

Φ 85 mm (3.35")
Φ 110 mm (4.33")



Accessories

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun



X41T DS-1280ZJ-S DS-1281ZJ-S
Camera Tester Junction Box Inclined Ceiling Mounting Bracket




0100001061107

Dimensions
