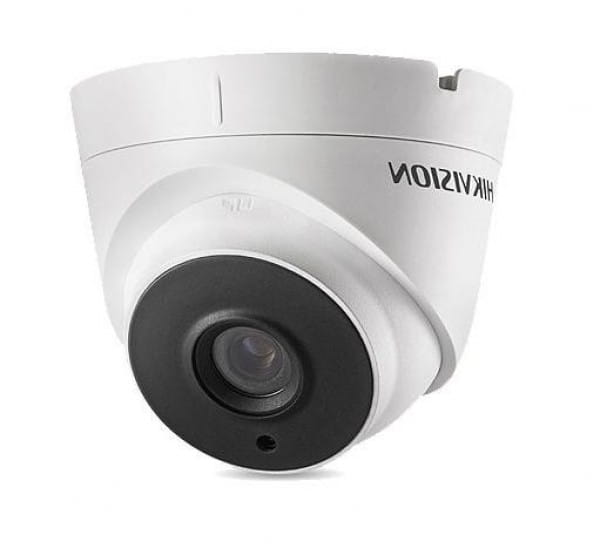

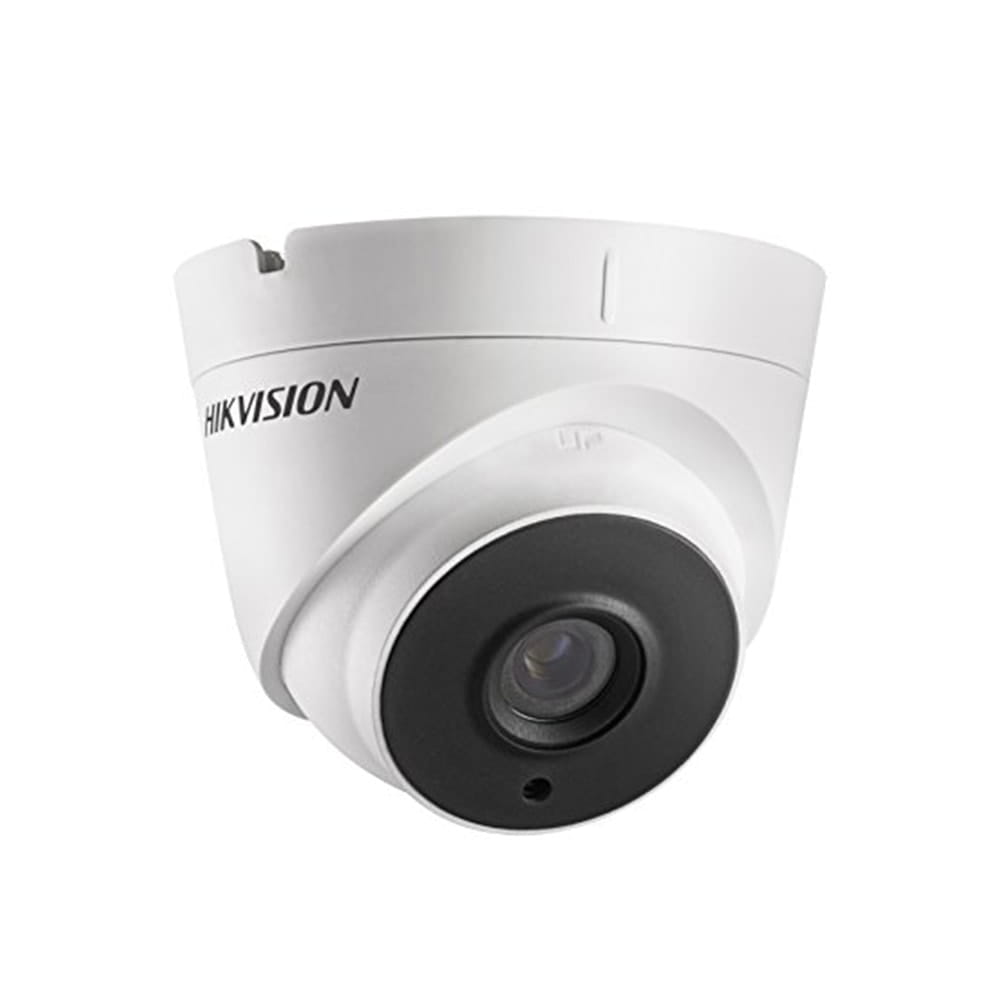

DS-2CE56D0T-IT1(3.6mm)

Kamera analogowa, obudowa kopułowa. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 20m, EXIR, dzień/noc ICR, DNR, Smart IR, obiektyw: 3.6mm, kąt widzenia 82.2st.. IP66, 3-osiowa regulacja położenia. Wymairy śr.89.9x70.1mm. Waga 280g. Zakres temperatur: -40st.~60st.. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56D0T-IT1
HD1080P EXIR Turret Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* True Day/Night, Smart IR
* EXIR technology, up to 20m IR distance
* IP66 weatherproof


Key Features








Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m
Dimension Φ110 x 93.2 mm(Φ4.33” x 3.67”)
Weight 350 g
Order Models
DS-2CE56D0T-IT1





Dimensions

20150918
Accessories



DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Vertical Pole Mounting Corner Mounting Video Balun



X41T DS-1280ZJ-S DS-1281ZJ-S
Camera Tester Junction box Inclined Ceiling Mounting
