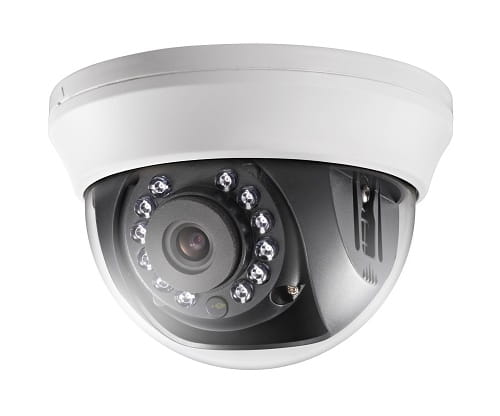

DS-2CE56D0T-IRMM(6mm)

Kamera HD1080p,2MP CMOS Sensor, 12 pcs LEDs, 20m IR, Indoor IR Dome, ICR, 0.1 Lux/F1.2, 12 VDC, Smart IR, DNR, 6mm Lens...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56D0T-IRMMF
HD 1080p Indoor IR Dome Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* Day/Night switch
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
Key Features







Specifications




Camera
Image Sensor 2 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 350°, Tilt: 0° to 70°, Rotation: 0° to 350°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
IR Range Up to 20 m
Dimension Φ 98 mm x 65.4 mm (3.86" x 2.57")
Weight 240 g (0.53 lb.)
Order Model
DS-2CE56D0T-IRMMF






Φ

9
8

m
m

(
3
.
8
6"
)
Φ

8
3.
4

m
m

(
3
.
2
8"
)
2
-

Φ

4
.
5

m
m

(
0
.
1
8"
)
6
5.
4

m
m

(
2
.
5
7"
)
4
1.
1

m
m

(
1
.
6
2"
)












Dimensions

Accessories

DS-1H18 X41T
Video Balun Camera Tester



0100001061107
