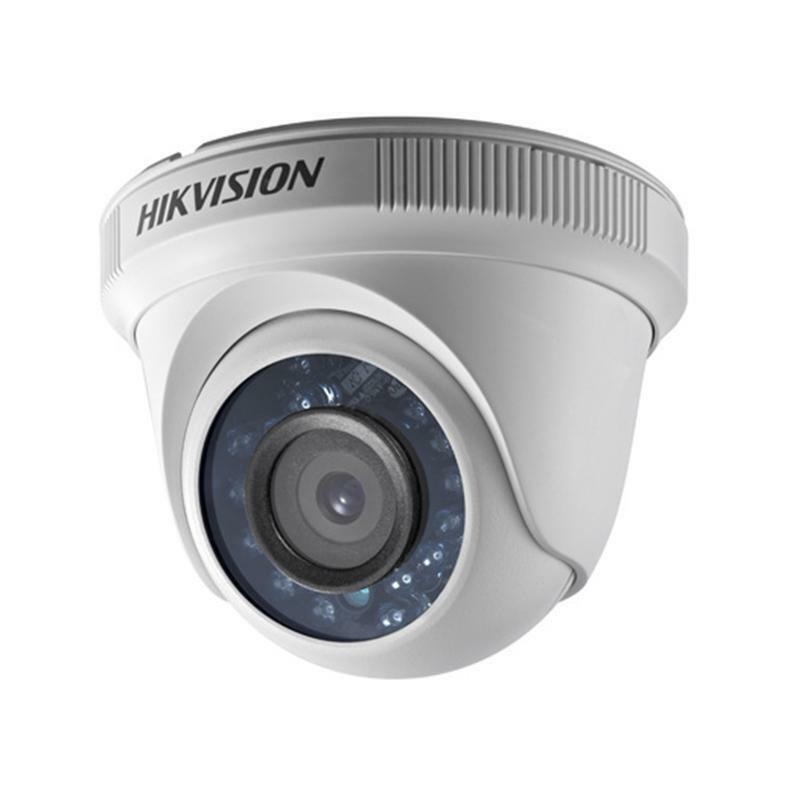

DS-2CE56D0T-IRF(2.8mm)

Kamera analogowa TVI/AHD/CVI/CVBS, obudowa kopułowa. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 20m, dzień/noc ICR, DNR, Smart IR, obiektyw: 2.8mm. IP66, 3-osiowa regulacja położenia. Wymairy śr.89.9x70.1mm. Waga 280g. Zakres temperatur: -40st.~60st.. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CE56D0T-IRF(2.8mm)(C)

Kod produktu zamiennego: 300613461

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56D0T-IRF
HD1080p IR Turret Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* Day/Night switch
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

Key Features








Specifications




Camera
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens 3.6 mm, 2.8 mm, 6 mm fixed lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Menu
AGC Low/middle/high
Day/Night Mode Smart/color/BW(Black and White)
Backlight Compensation Yes
DWDR Yes
Language English, Chinese
Functions Brightness, Sharpness, DNR, Mirror
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±15%
Power Consumption Max. 4 W
Ingress Protection IP66
Material
Enclosure: Plastic
Main Body: Metal
IR Range Up to 20 m
Dimension Φ 89.9 mm x 70.1 mm (3.54" x 2.76")
Weight Approx. 280 g (0.62 lb.)
Order Model
DS-2CE56D0T-IRF







7
0.
1

m
m

(
2
.
7
6"
)
Φ

8
9.
9

m
m

(
3
.
5
4"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)
Φ

7
2

m
m

(
2
.
8
3"
)
1
2
0
°


Dimensions

Accessories

DS-1272ZJ-110-TRS DS-1275ZJ-SUS DS-1276ZJ-SUS DS-1H18
Wall Mount Vertical Pole Mount Corner Mount Video Balun



DS-1280ZJ-XS
Junction Box
