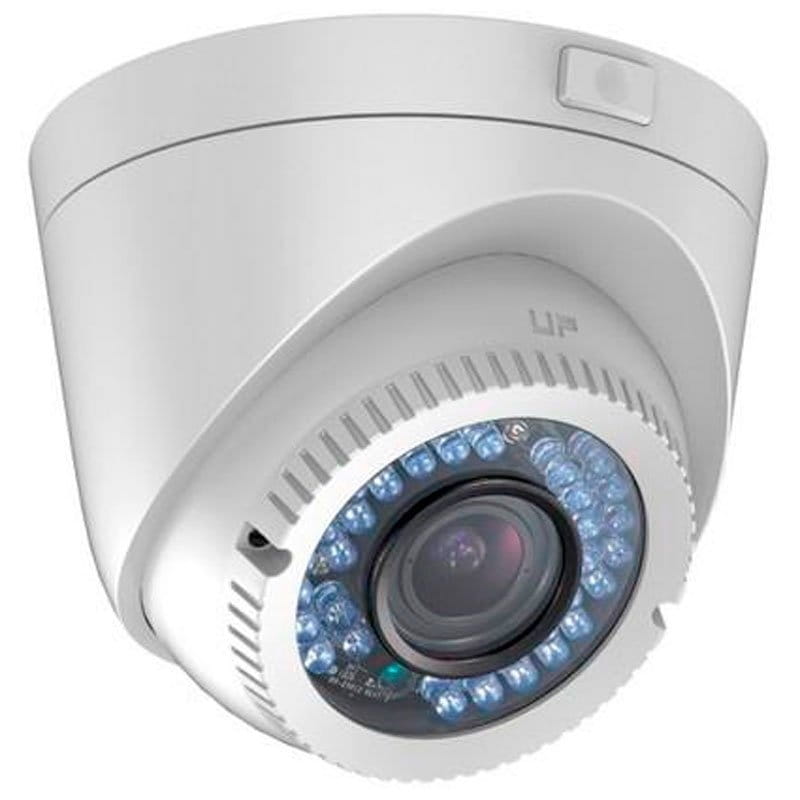

DS-2CE56C2T-VFIR3(2.8-12MM)(C)

Kamera Turbo-HD Hikvision w obudowie turret, przetwornik 1/3" Progressive Scan CMOS: rozdzielczość 720p@30kl/s., czułość 0.014Lux(F1.4, wł. AGC), 0 Lux z IR, zasięg IR 30~40m, dzień/noc ICR, obiektyw regulowany: 2.8-12mm (F1.4). Funkcje: AGC, BLC, DNR, DWDR (automatyczna adaptacja). Obudowa IP66. Wymiary: śr. 130.54 × 102.4 mm, waga 565g. Temperatura pracy -40°C~60°C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CE56C2T-VFIR3


Key Features
 1.3 Megapixel high-performance CMOS
 Turbo HD output, up to 720P resolution
 2.8 – 12mm vari-focal lens
 True Day/Night
 DNR, Smart IR
 Up to 40m IR distance
 IP66 weatherproof
Specification
Model
Parameter
DS-2CE56C2T-VFIR3
720p Vari-focal Turbo HD Turret Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Effective Pixels 1280(H)*720(V)
Min. Illumination 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
2.8 - 12 mm @ F1.4
Angle of view: 80° - 27.2°
Lens Mount φ14
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization



©2006 – 2014 by HIKVISION. All rights reserved.
2
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Turbo HD output
S/N Ratio More than 52dB
General
Working
Temperature/Humidity
-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4.5W
Weather Proof Ratings IP66
IR Range Up to 40m
Dimension Φ130.54 x 102.4mm (Φ5.1” x 4.0”)
Weight 565g
Order Model
DS-2CE56C2T-VFIR3
Dimension
3-4.5(0.2")
112.4(4.4")
130.54(5.1")
102.4(4")
