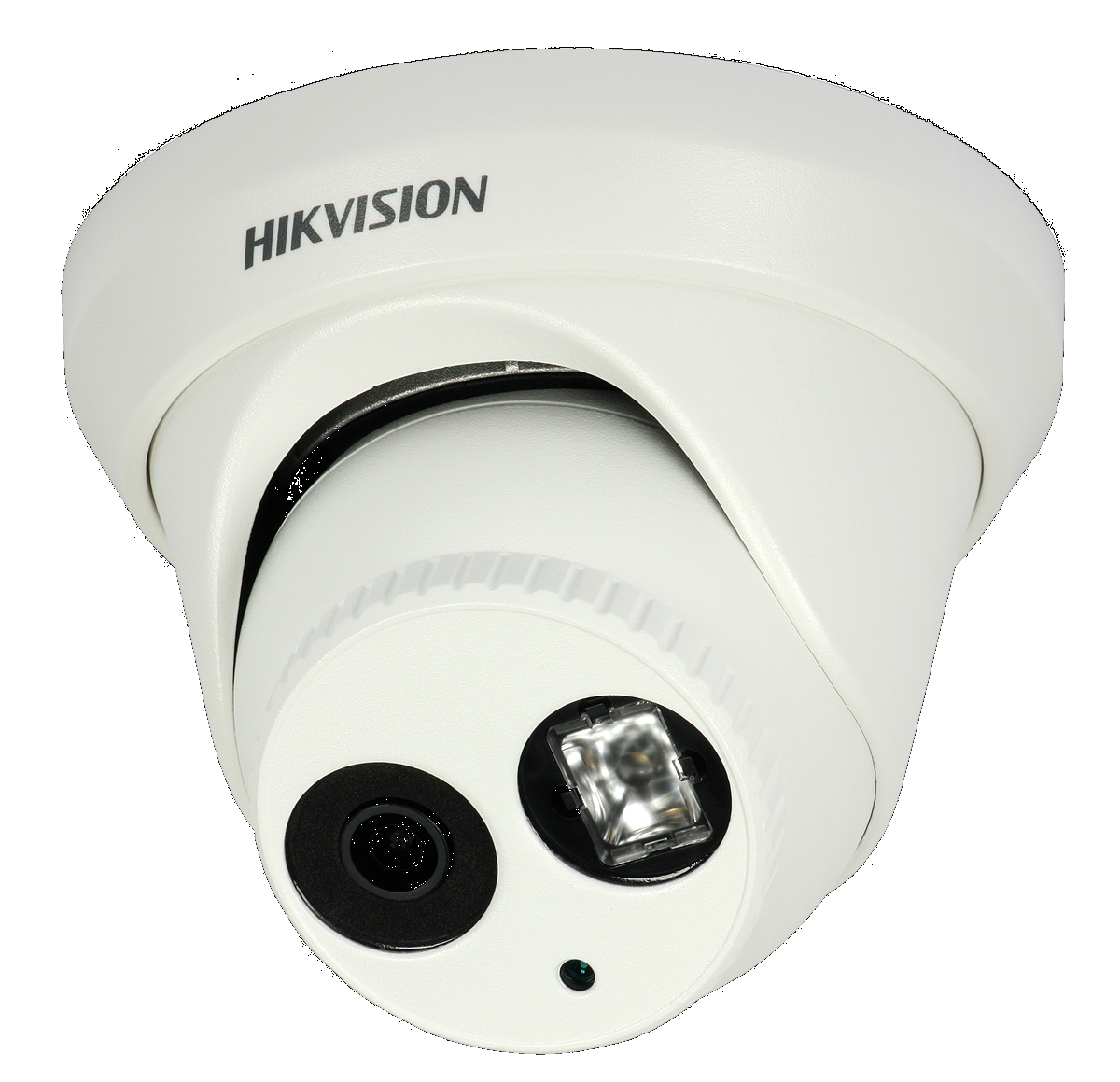

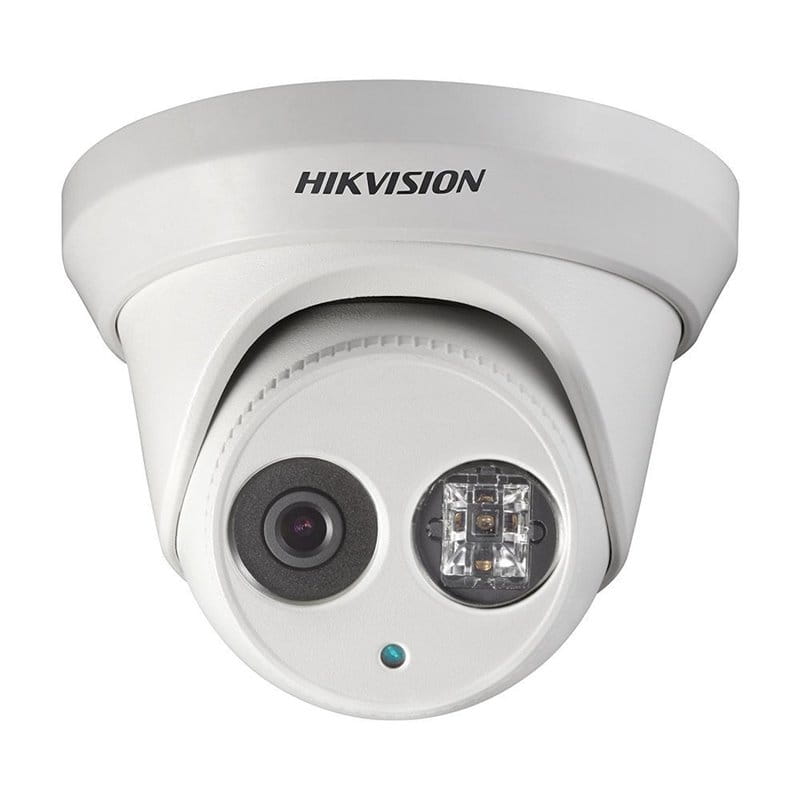

DS-2CE56C2T-IT3(2.8mm)

Kamera Turbo-HD Hikvision w obudowie typu turret, przetwornik 1/3" Progressive Scan CMOS: rozdzielczość 720p@30kl/s., czułość 0.0014Lux (F1.4, wł. AGC), 0 Lux z IR, oświetlacz IR, zasięg 30~40m, SMART IR, dzień/noc ICR, obiektyw 2.8mm (F1.2). Wyjście BNC: 1xTurbo-HD. Funkcje: AGC, BLC, DNR, DWDR (automatyczna adaptacja). Obudowa IP66. Wymiary: śr.114.6×89.1mm, waga 300g. Temperatura pracy -40°C~60°C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56C2T-IT3
HD720P EXIR Turret Camera

* 1.3 Megapixel high-performance CMOS
* Analog HD output, up to 720P resolution
* True Day/Night
* DNR, Smart IR
* EXIR technology, up to 40m IR distance
* IP66 weatherproof

Key Features










Specifications




Camera
Image Sensor 1.3MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1280(H)*960(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm), 34.5°(8mm), 22.1°(12mm), 17.2°(16mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m
Dimensions Φ114.6 x 89.1mm(Φ4.5” x 3.5”)
Weight 450 g

Order Models
DS-2CE56C2T-IT3





Dimensions

20150918
Accessories
Unit: mm


DS-1272ZJ-110 DS-1275ZJ DS-1280ZJ-S DS-1258ZJ
Wall Mounting Vertical Pole Mounting Junction Box Wall Mounting




DS-1281ZJ-S DS-1H18 X41T DS-1271ZJ-110
Inclined Ceiling Mounting Video Balun Camera Tester Pendant mounting
