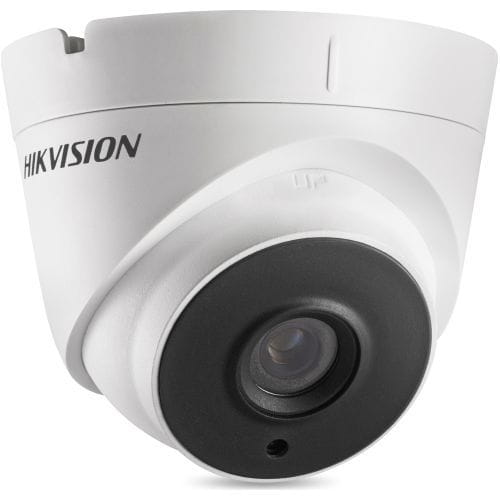

DS-2CE56C0T-IT1F(3.6mm)

Kamera analogowa TVI/AHD/CVI/CVBS, obudowa turret. Rozdzielczość 720p, Przetwornik 1MP CMOS, czułość: 0.1Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 20m, dzień/noc ICR, DNR, Smart IR, obiektyw: 3.6mm. IP66, 3-osiowa regulacja położenia. Wymiary śr.110×93.2mm. Waga 350g. Zakres temperatur: -40°~60°. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56C0T-IT1F
HD 720p EXIR Turret Camera

* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

Key Features









Specifications




Camera
Image Sensor 1 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
3.6 mm (2.8 mm, 6 mm, 8 mm optional)
Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm), 38.6°(8 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions Φ 110 mm x 93.2 mm (4.33" x 3.67")
Weight 350 g (0.77 lb.)

Order Model
DS-2CE56C0T-IT1F







9
3.
2

m
m

(
3
.
6
7"
)
3-Φ 4.2 mm (0.17")
1
2
0

°

Φ 85 mm (3.35")
Φ 110 mm (4.33")



Dimensions

Accessories

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun



X41T DS-1280ZJ-S DS-1281ZJ-S
Camera Tester Junction Box Inclined Ceiling Mounting Bracket




0100001061107
