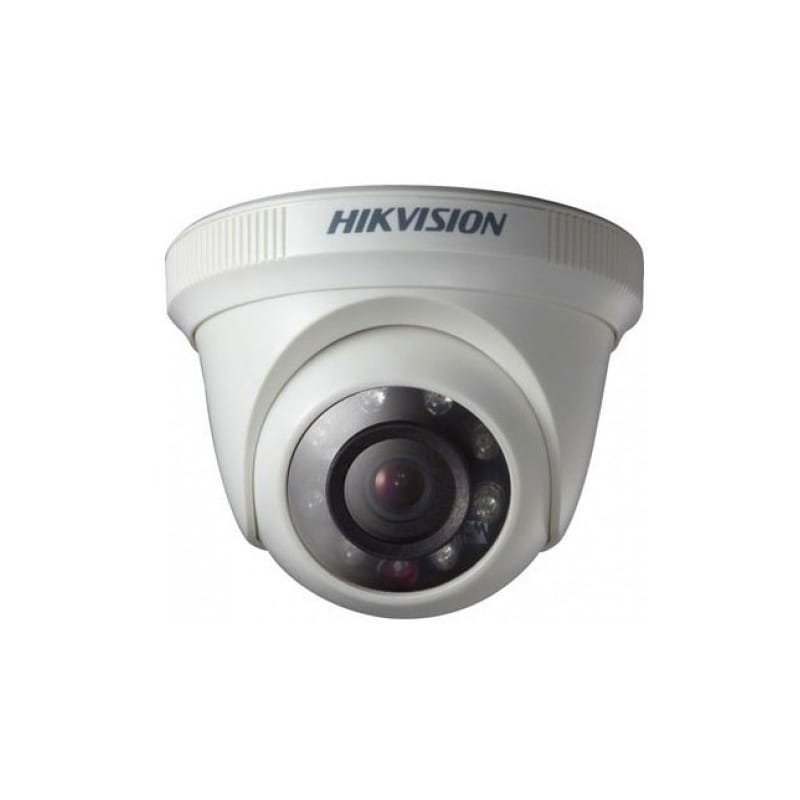

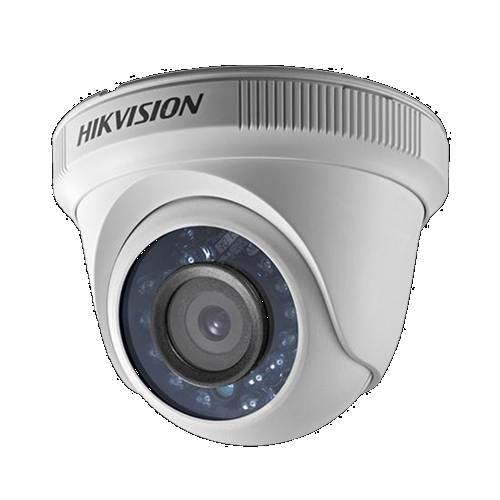

DS-2CE56C0T-IRPF(3.6mm)

Kamera analogowa TVI/AHD/CVI/CVBS, obudowa kopułowa. Rozdzielczość 720p, Przetwornik 1MP CMOS, czułość: 0.1Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 20m, dzień/noc ICR, DNR, Smart IR, obiektyw: 3.6mm. 3-osiowa regulacja położenia. Wymiary śr.89.9×70.1mm. Waga 250g. Zakres temperatur: -40°~60°. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE56C0T-IRPF
HD 720p Indoor IR Turret Camera

* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS


Key Features









Specifications




Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9°(3.6 mm), 92°(2.8 mm), 56.7°(6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
IR Range Up to 20 m
Dimensions Φ 89.9 mm x 70.1 mm (3.54" x 2.76")
Weight 250 g (0.55 lb.)

Order Model
DS-2CE56C0T-IRPF







7
0.
1

m
m

(
2
.
7
6"
)
Φ

8
9.
9

m
m

(
3
.
5
4"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)
Φ

7
2

m
m

(
2
.
8
3"
)
1
2
0
°


Dimensions

Accessories

DS-1272ZJ-110-TRS DS-1275ZJ DS-1276ZJ DS-1H18
Wall Mounting Bracket Vertical Pole Mounting Bracket Corner Mounting Bracket Video Balun



X41T DS-1280ZJ-XS
Camera Tester Junction Box



0100001061107
