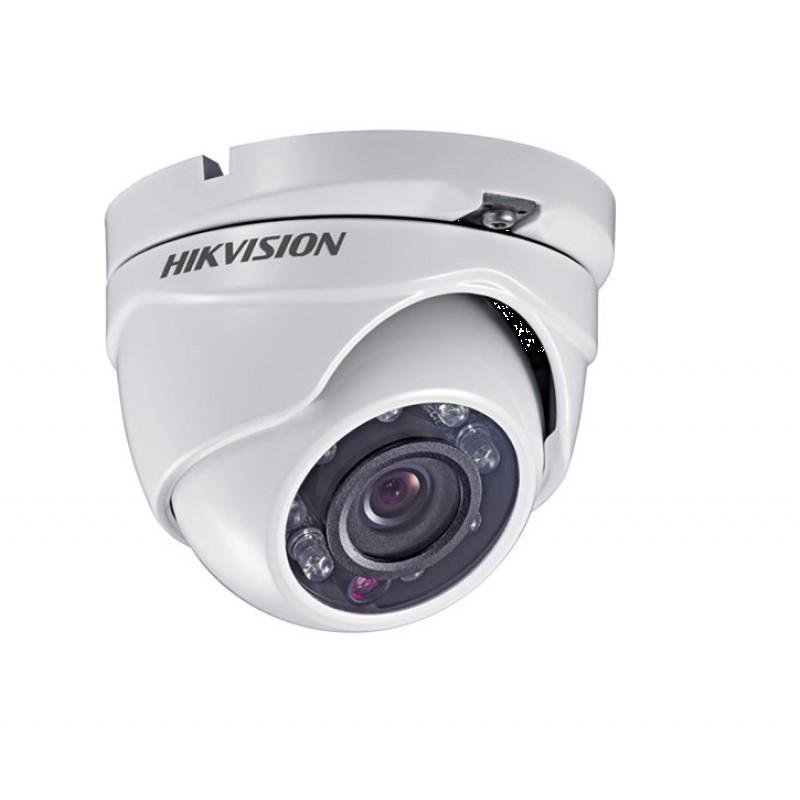

DS-2CE56C0T-IRMF(6mm)

Kamera analogowa TVI/AHD/CVI/CVBS, obudowa kopułowa. Rozdzielczość 720p, Przetwornik 1MP CMOS, czułość: 0.1Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 20m, dzień/noc ICR, DNR, Smart IR, obiektyw: 6mm. IP66, 3-osiowa regulacja położenia. Wymiary śr.89.47×67.6mm. Waga 340g. Zakres temperatur: -40°~60°. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
* 1 megapixel high performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

DS-2CE56C0T-IRMF
HD 720p IR Turret Camera







Specification
Camera
Image Sensor 1 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions 89.47 x 67.6 mm (3.52" x 2.7")
Weight 340 g (0.75 lb.)


Order Model
DS-2CE56C0T-IRMF





Dimensions
3
-
Φ

4
.
5
(
0
.
1
8"
)
Φ

6
0

m
m

(
2
.
3
6"
)
Φ

8
2.
5
8

m
m

(
3
.
2
5"
)
6
7.
6

m
m

(
2
.
7
"
)
1
2
0
°
8
9.
4
7

m
m

(
3
.
5
2"
)



Accessories


DS-1272ZJ-110-TRS
Wall Mounting Bracket
DS-1275ZJ
Vertical Pole Mounting Bracket
DS-1276ZJ
Corner Mounting Bracket
DS-1H18
Video Balun



X41T
Camera Tester
DS-1280ZJ-XS
Junction Bo
