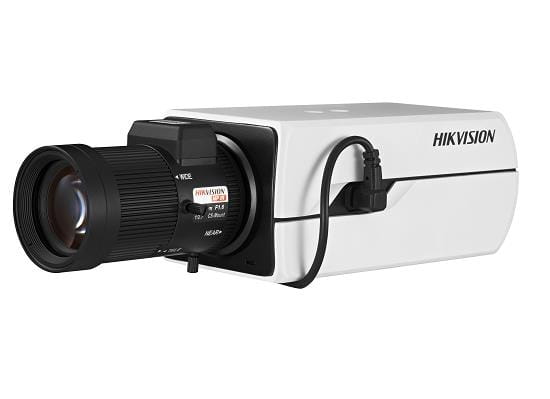

DS-2CE37U8T-A

Kamera Turbo-HD Hikvision w obudowie BOX. Rozdzielczość 8Mpix@12.5kl/s (PAL), przetwornik 8.29Mpix CMOS, czułość (kolor): 0.003Lux (F1.2, wł. AGC), obiektyw C/CS, sterowanie przesłony DC, dzień/noc ICR, WDR 120dB, AGC, 3D DNR, WB (ATW/MWB), BLC/HLC, 4 maski prywatności, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI). Dodatkowe wyjścia: analogowe BNC, RS-485. Wymiary: 145.14x58x69.8mm, waga 955g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC/24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CC12D8T-AMM

Kod produktu zamiennego: 300509533

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 8.29 MP high performance CMOS
 Ultra-low light
 3840 x 2160 resolution
 Auto-Iris
 120 dB true WDR, 3D DNR
 Alarm, and RS-485 Interfaces
 Dual video output: TVI/CVBS
 Dual voltage input: 12 VDC ±25%/24 VAC ±25%
 Up the coax (HIKVISION-C)

DS-2CE37U8T-A
4K Ultra-Low Light Box Camera




Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution 3840 (H) x 2160 (V)
Min. illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s
Lens Mount C/CS mount
Auto-iris DC drive
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual/Natural
Privacy Mask ON/OFF, 4 programmable privacy masks
BLC (Backlight Compensation) Support
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English
Functions Contrast, Sharpness, Saturation, Mirror, Defog, HLC
Interface
TVI Video Output 1 HD analog output
CVBS Video Output 1 CVBS output (75Ω/BNC)
Communication Interface 1 RS-485 interface
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, 24 VAC ±25%
Power Consumption Max. 10 W
Material Metal
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 145.14 mm x 58 mm x 69.8 mm (5.71" x 2.28" x 2.75")
Weight Approx. 520 g (1.15 lb.)
Specification



Order Model
DS-2CE37U8T-A
Dimension
145.14 mm (5.71")
69.8 mm (2.75")
5
8

m
m

(
2
.
2
8
"
)
61.6 mm (2.43")
14 mm
(0.55")
67.1 mm (2.64")
14 mm
(0.55")
2-¼-20 UNC
7.5 mm (0.3")
2-¼-20 UNC
7.5 mm (0.3")


Accessory

HV3816D-8MPIR
Manual Focusing 8 MP IR Lens

HV1140D-8MPIR
Manual Focusing 8 MP IR Lens

DS-1330HZ
Indoor Housing

DS-1331HZ
Outdoor Housing

DS-1332HZ
Indoor Housing

DS-1H18
Video Balun

DS-1292ZJ
Wall Mount

X41T
Camera Tester
