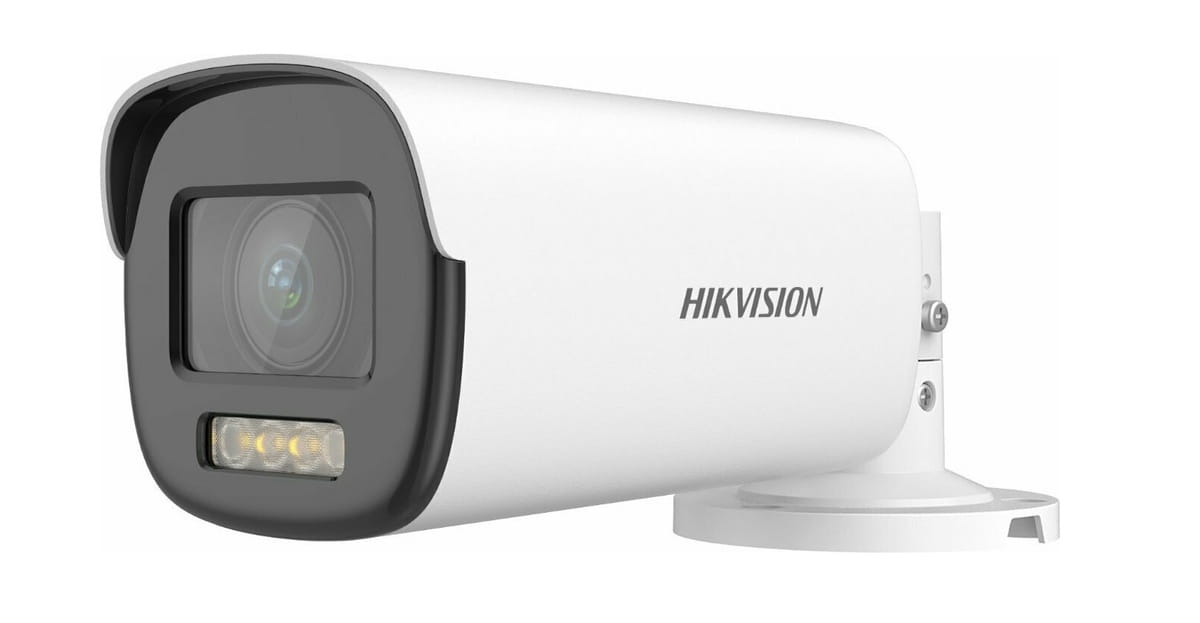

DS-2CE19DF8T-AZE(2.8-12mm)

Kamera Analogowa typu Bullet PoC 2MP, 1/1.8" 2 MP CMOS, Rozdzielczość: 1920 (H) × 1080 (V); min. Oświetlenie: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux dla światła białego; obiektyw: 2.8 mm do 12 mm motorized, auto Focus; HFOV: 92.3° do 34.2°, VFOV: 48.4° do 19°, DFOV: 112.2° do 39.2°; WDR ≥130 dB, WDR, BLC, HLC, Global, HLS, 4 programowalne maski prywatności, 3D DNR/2D DNR, 4 programowalne obszary ruchu, 1 wyjście analogowe HD ; Temp.pracy: -40°C do 60°C; Zasilanie: 12 VDC/24 VAC±20%/PoC.at, IP68, Zasięg światła białego do 40m; Wymiary: 89.5 mm × 85.6 mm × 237.1 mm; Waga 1020g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE19DF8T-AZE
2 MP ColorVu PoC Motorized Varifocal Bullet








 High quality imaging with 2 MP, 1920 x 1080 resolution
 24/7 color imaging
 Clear imaging against strong back light due to 130 dB true
WDR technology

 3D DNR technology delivers clean and sharp images
 2.8 mm to 12 mm varifocal lens, auto focus
 Smart Light, up to 40 m white light distance
 Water and dust resistant (IP68)





 Specification
Specification
Image Sensor 1/1.8" 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate TVI: 1080p @ 25 fps/30 fps
Min. Illumination 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white Light
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm to 12 mm motorized, auto focus
Field of View horizontal FOV: 92.3° to 34.2°, vertical FOV: 48.4° to 19°, diagonal FOV: 112.2° to 39.2°
Lens Mount Φ24
Day & Night Color
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment Pan:0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Menu
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR, BLC, HLC, Global, HLS
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Noise Reduction 3D DNR/2D DNR
Language English
Function Brightness, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
Video Output 1 HD analog output
General
Operating Conditions -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC/24 VAC±20%/PoC.at
Consumption Max: 12.2 W
Protection Level IP68
Material Metal
White Light Range Up to 40 m
Communication HIKVISION-C
Dimension 89.5 mm x 85.6 mm x 237.1 mm (3.52" x 3.37" x 9.33")
Weight Approx. 1020 g (2.25 lb.)

 Dimension











Accessory
 Optional
DS-1276ZJ-SUS
Corner mount
DS-1275ZJ-SUS
Vertical pole mount
DS-1280ZJ-S
Junction box


















 Available Model
DS-2CE19DF8T-AZE(2.8-12mm)
