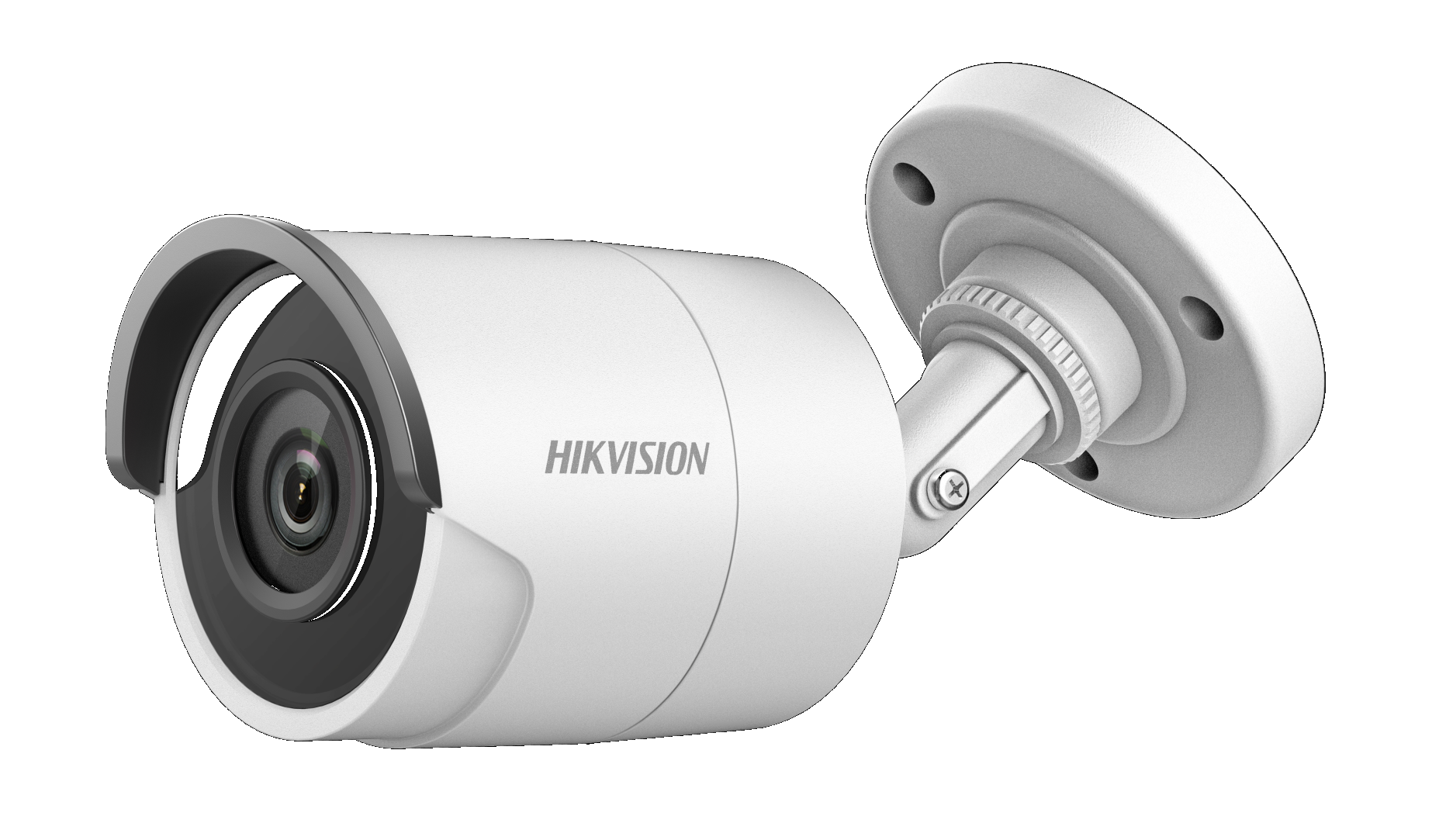

DS-2CE17U8T-IT(3.6mm)

Kamera Turbo-HD Hikvision w obudowie typu bullet. Rozdzielczość 8Mpix@12.5kl/s (PAL), przetwornik 8.29Mpix CMOS, czułość: 0.003Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, promiennik typu EXIR 2.0, dzień/noc ICR, WDR 120dB, Smart IR, AGC, 3D DNR, WB (ATW/MWB), BLC/HLC, 4 maski prywatności, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw: 3.6mm, kąty: 102.2st.. IP67, 3-osiowa regulacja położenia. Dodatkowe wyjście analogowe BNC. Wymiary: śr.70x159.8mm, waga 420g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CE16U7T-ITF(3.6mm)

Kod produktu zamiennego: 300511262

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 8.29 MP high performance COMS
 Ultra-low light
 3840 x 2160 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 40 m IR distance
 IP67
 Up the coax (HIKVISION-C)

DS-2CE17U8T-IT
4K Ultra-Low Light Bullet Camera




Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Resolution 3840 (H) x 2160 (V)
Min. illumination Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/10,000 s
NTSC: 1/15 s to 1/10,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual/Natural
Privacy Mask ON/OFF, 4 programmable privacy masks
BLC (Backlight Compensation) Support
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English
Functions Contrast, Sharpness, Saturation, Mirror, Defog, HLC
Interface
TVI Video Output 1 HD analog output
CVBS Video Output 1 CVBS output (75Ω/BNC)
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.8 W
Protection Level IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 70 mm x 159.8 mm (Ø 2.76" x 6.29" )
Weight Approx. 420 g (0.93 lb.)
Specification



Order Models
DS-2CE17U8T-IT
Dimension
159.8 mm (6.29" )
6
0
.
7

m
m

(
2
.
3
9
"

)
3-Ø 55 mm
(2.17" )
Ø 70 mm
(2.76" )
3-Ø 4.2 mm
(0.17" )


Accessory

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun




010000171027
