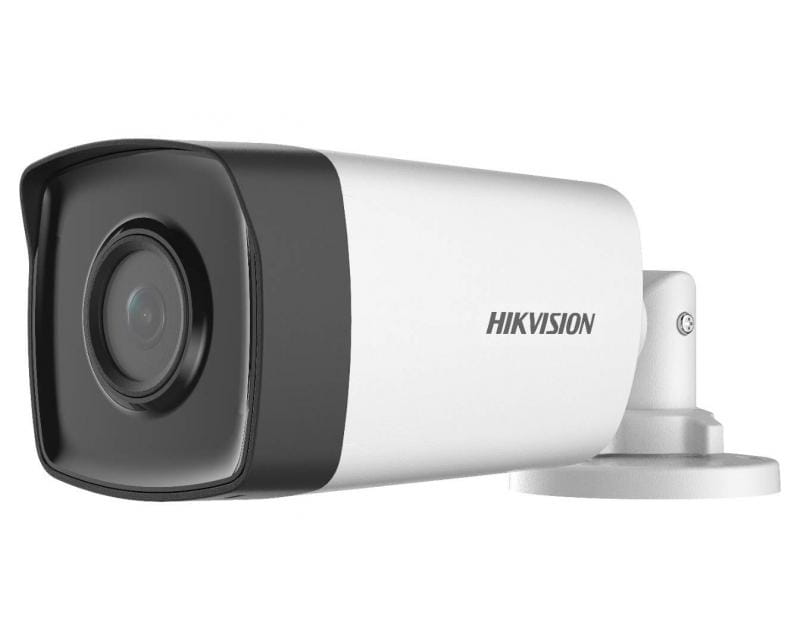

DS-2CE17D0T-IT3FS(3.6mm)

Kamera analogowa 2 MP typu bullet , Matryca: 2 MP CMOS, Signal system: PAL/NTSC, Liczba klatek na sekundę: TVI: 1080p @ 25 fps/30 fps CVI: 1080p @ 25 fps/30 fps AHD: 1080p @ 25 fps/30 fps CVBS: PAL/NTSC, Min. owietlenie: 0.01 Lux @ (F1.2, AGC ON), 0 Lux z IR, wolna migawka: max 16 razy, FOV: 3.6 mm, HFOV: 79.6°, VFOV: 43.5°, DFOV: 93.7°, Day&night: ICR, WDR: Digital WDR, tryb obrazu: STD/HIGH-SAT, AGC, Tryb dzień/noc: Auto/kolorowy/Czarno-biały, Balans bieli: Automatyczny i ręczny, AE:DWDR, BLC, HLC, Global, Redukcja szumów: 2D DNR, Ustawienia: jasność, inteligentne IR, ostrość, Wyjście wideo: TVI/AHD/CVI/CVBS, warunki eksploatacji: -40°C do 60°C (-40°F do 140°F), Wilgotność: 90% lub mniej (bez kondensacji), źródło zasilania: 12 VDC ± 25%, Pobór mocy: Max. 4.2 W, Materiał: Przednia osłona: metal, reszta: plastik, wymiary: 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53"), waga: około 328g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE17D0T-IT3FS
2 MP Audio Fixed Bullet Camera









 High quality imaging with 2 MP, 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 Up to 40 m IR distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)
 High quality audio with audio over coaxial cable, built-in
mic






 Specification
Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
TVI: 1080p @ 25 fps/30 fps
CVI: 1080p @ 25 fps/30 fps
AHD: 1080p @ 25 fps/30 fps
CVBS: PAL/NTSC
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
Language English
Function Brightness, Smart IR, Sharpness
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%,
Consumption Max. 4.2 W
Protection Level IP67
Material Front cover: Metal, Main body: Plastic
IR Range Up to 40 m
Communication HIKVISION-C
Dimension 78.9 mm x 75.4 mm x 216.6 mm (3.10" x 2.97" x 8.53")
Weight Approx. 328 g (0.72 lb.)

 Dimension






 Accessory
 Optional
DS-1280ZJ-XS
Junction box


















 Available Model
DS-2CE17D0T-IT3FS
