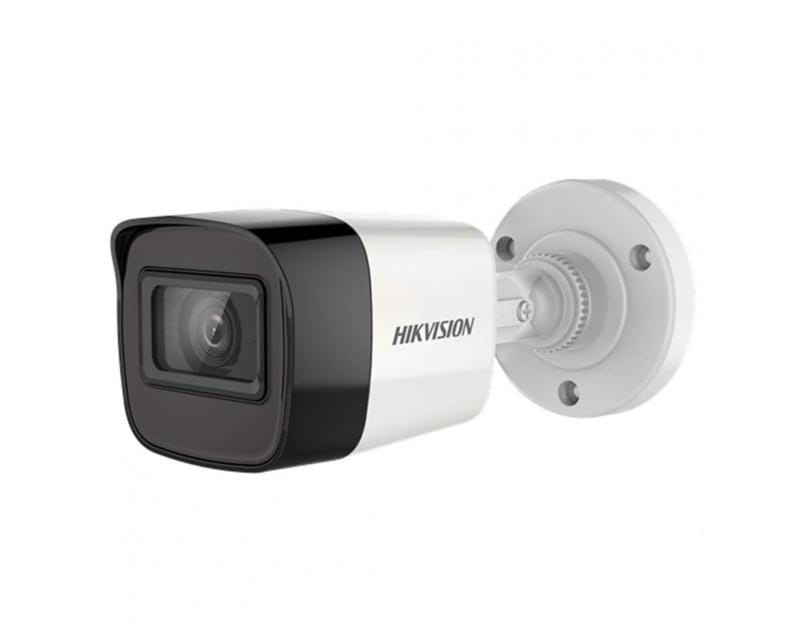

DS-2CE16U7T-ITF(3.6mm)

Kamera Turbo HD w obudowie tulejowej. Rozdzielczość 8.3MP @12.5fps, Przetwornik 8MP CMOS, czułość: 0.003Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, Smart IR, WDR: 130dB, AGC, DNR, WB (ATW/MWB), BLC, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw: 3.6mm. IP67, 3-osiowa regulacja położenia. Wymiary 58 mm x 61 mm x 158.6 mm. Waga około 345g. Temperatura pracy -40st.C~60st.C, IP67. Zasilanie 12VDC, wyjście wideo 4w1 (TVI/AHD/CVI/CVBS)....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
 8.29 MP, 3840 x 2160 resolution
 Ultra-low light
 130 dB true WDR, 3D DNR
 2.8 mm, 3.6 mm, 6 mm fixed lens
 Smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67

DS-2CE16U7T-ITF
8 MP Ultra-Low Light Camera




Camera
Image Sensor 8.29 MP CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,
1080P@30fps
AHD: 8MP@12.5fps, 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps
CVBS: P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm)
Lens Mount M16
Day & Night ICR
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode Global/BLC/HLC/WDR
Noise Reduction 3D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 4.2 W
Protection Level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Dimensions 58 mm x 61 mm x 158.6 mm (2.28" x 2.40" x 6.42")
Weight Approx. 345 g (0.76 lb.)
Specification



Order Model
DS-2CE16U7T-ITF
Dimension
120°
158.6 mm (6.42" )
80.6 mm (3.35" )61 mm (2.40" )
58
mm
(2
.28
" )
Ø 55 mm
(2.17" )


Accessory




DS-1280ZJ-XS
Junction Box


0100001081127
