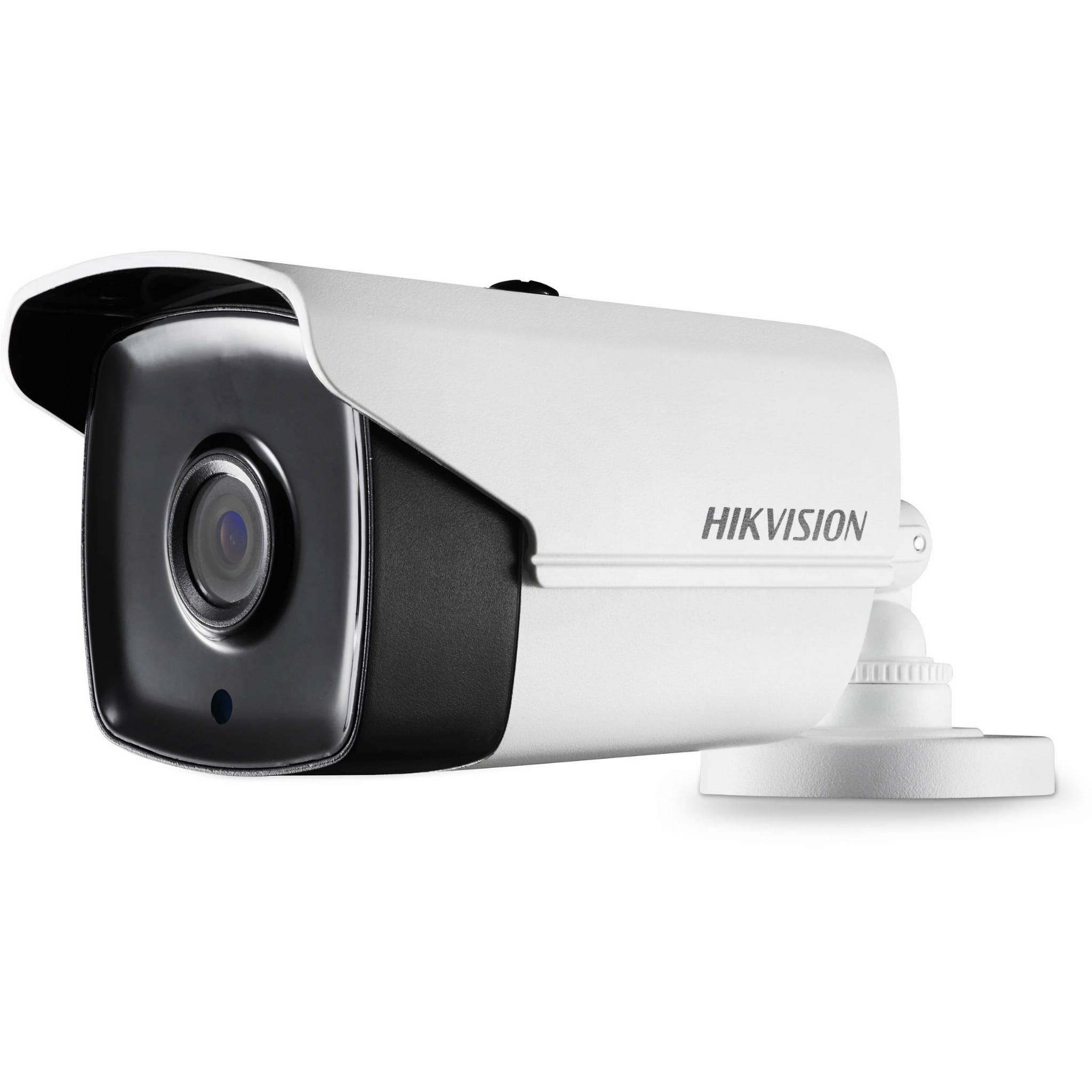

DS-2CE16H5T-IT3(6mm)
Opis
Kamera 5MP@20fps, 4MP@25fps(P)/30fps(N)(Default), EXIR, 40m IR, Outdoor EXIR Bullet, ICR, 0.008 Lux/F1.2, 12 VDC, Smart IR, DNR, OSD Menu(Up the Coax), IP67, 3.6/6/8/12/16mm Lens...
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
Key Features
5 megapixel high-performance CMOS
HD analog output, up to 5 MP resolution
2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
True Day/Night
OSD menu, DNR, Smart IR
EXIR technology, up to 40 m IR distance
IP67
Up the Coax (HIKVISION-C)
DS-2CE16H5T-IT3
5 MP Ultra-Low Light EXIR Bullet Camera
Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Horizontal Field of View 91° (2.8 mm), 70° (3.6 mm), 45° (6 mm), 41° (8 mm), 26° (12 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2560 x 1944 @ 20fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 V DC ±25%
Power Consumption Max. 3.5 W
Protection Level IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.41" x 3.23" x 8.67")
Weight Approx. 680 g (1.5 lb.)
Specification
Order Models
DS-2CE16H5T-IT3
Dimension
Accessory
DS-1280ZJ-XS
Junction Box
DS-1H18
Video Balun
010000170307
226 mm (8.9")
86.7 mm (3.4")
8
1
.
6
m
m
(
3
.
2
"
)
Φ 55 mm
(2.2")
120°
120°
3-Φ 4.2 mm
(0.17")
0100001070527
