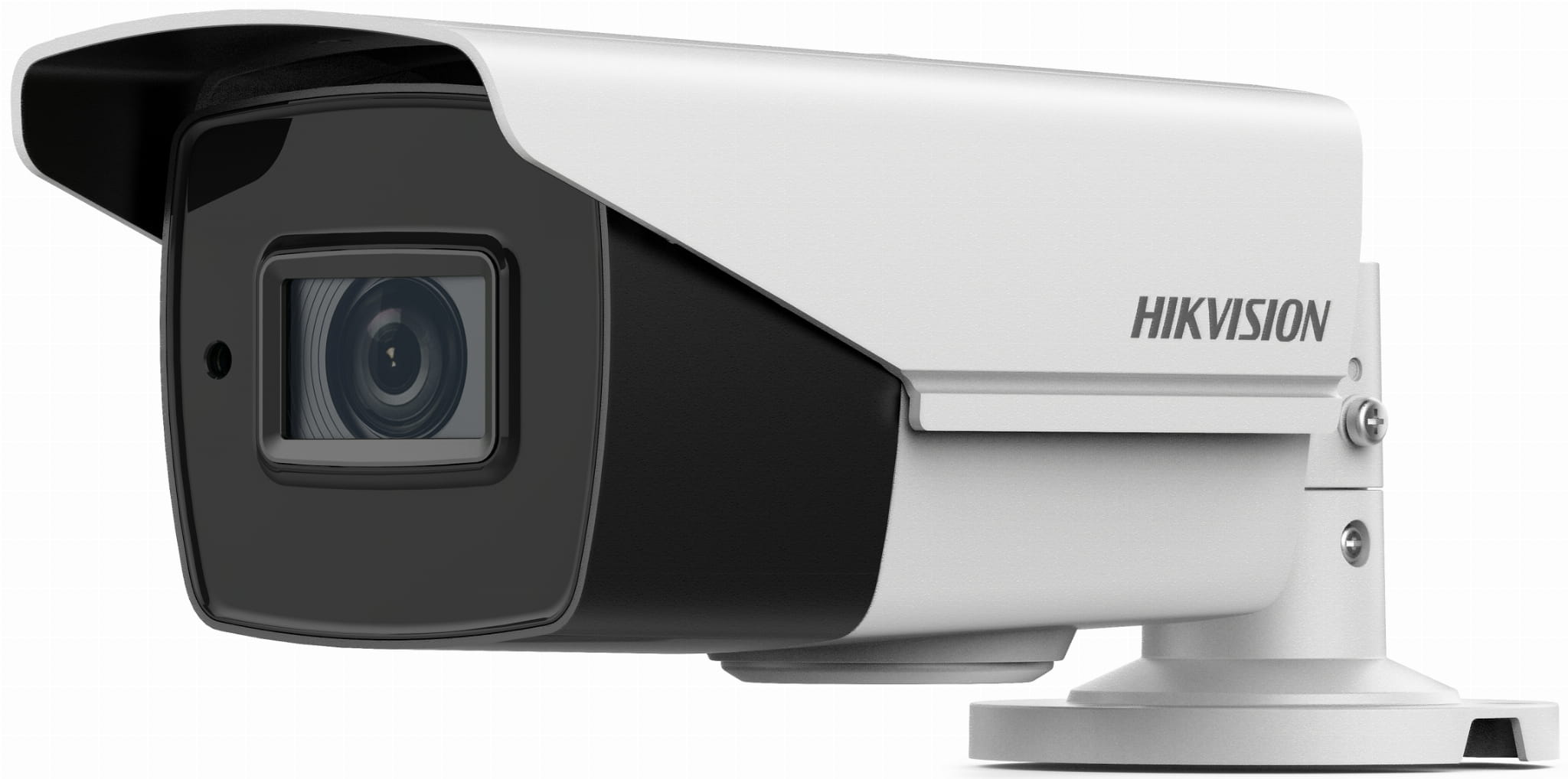

DS-2CE16H5T-AIT3Z(2.8-12mm)

Kamera Turbo HD w obudowie tulejowej. Rozdzielczość 2560x1944@20fps, Przetwornik 5MP CMOS, czułość: 0.008Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR 2.0, dzień/noc ICR, Smart IR, DWDR, AGC, DNR, WB (ATW/MWB), BLC, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw: 2.8~12mm, kąt widzenia 94st.~32st.. IP67, 3-osiowa regulacja położenia. Wymiary 92x89x269.6mm. Waga około 900g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC/24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 5 megapixel high-performance CMOS
 HD analog output, up to 5 MP resolution
 2.8 mm to 12 mm motorized vari-focal lens
 True Day/Night
 OSD menu, DNR, Smart IR
 EXIR technology, up to 40 m IR distance
 IP67
 Up the Coax (HIKVISION-C)

DS-2CE16H5T-(A)IT3Z
5 MP Ultra-Low Light VF EXIR Bullet Camera




Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View 102° to 31°
Lens Mount Φ14
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt:0° to 90°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate 2560 x 1944 @ 20fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English, Chinese
Functions Brightness, Sharpness, Digital noise reduction, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 V DC ±25%
-A: 12 V DC ±25%, 24 V AC ±25%
Power Consumption
Max. 9 W
-A: Max. 9.5 W
Protection Level IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 92 mm x 89 mm x 269.6 mm (3.62" x 3.5" x 10.6")
Weight Approx. 900 g (1.98 lb.)
Specification



Order Models
DS-2CE16H5T-IT3Z, DS-2CE16H5T-AIT3Z
Dimension
92 mm (3.6")
8
9

m
m

(
3
.
5
"
)
269.6 mm (10.6")
155.6 mm (6.2")
241.3 mm (9.5")
3-Ø 4.3 mm(0.17")
120°
120°
3 x 10-24UNC-2A
Ø 85.3 mm(3.36")
Ø 70 mm(2.76")


Accessory

DS-1280ZJ-S
Junction Box

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1H18
Video Balun
