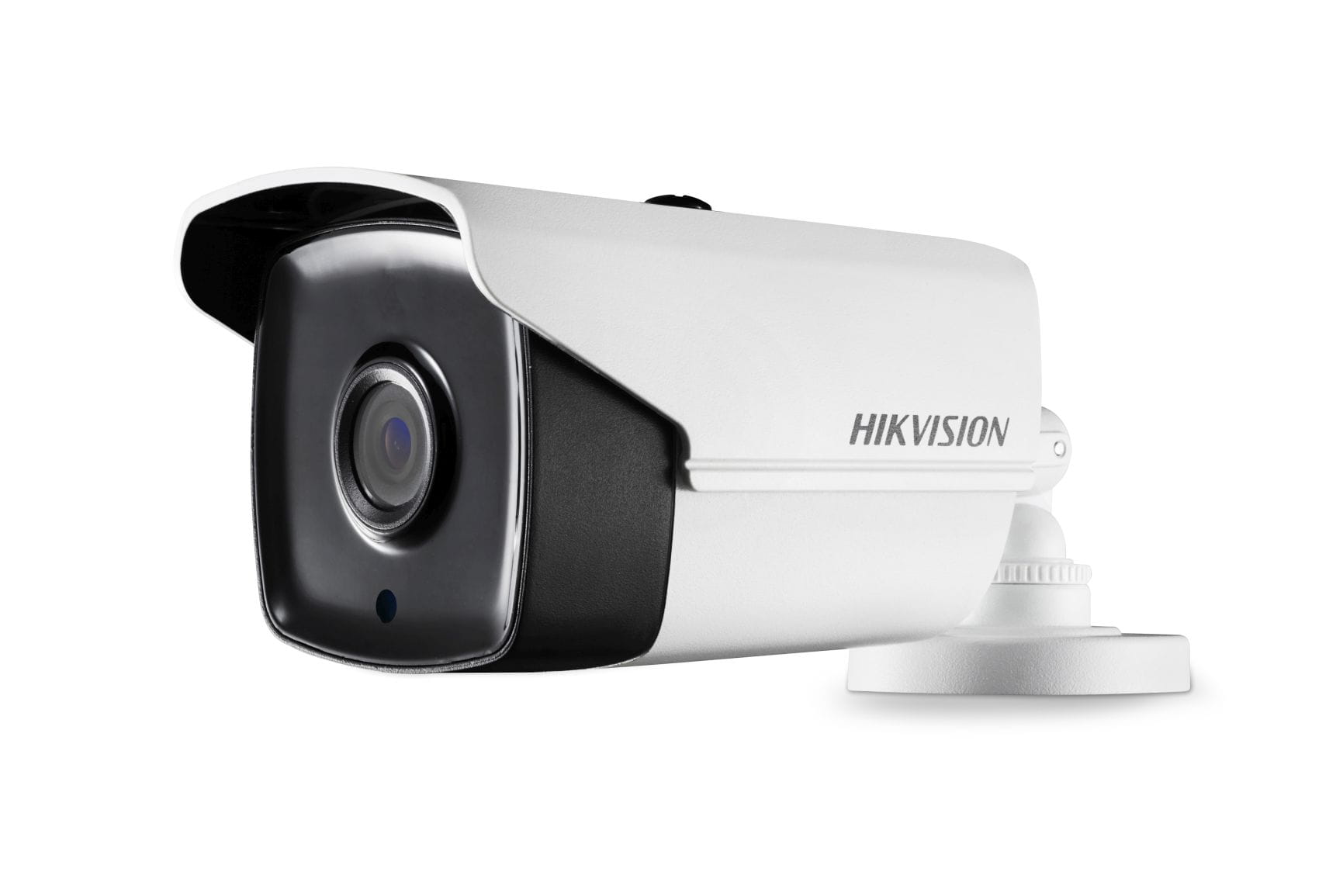

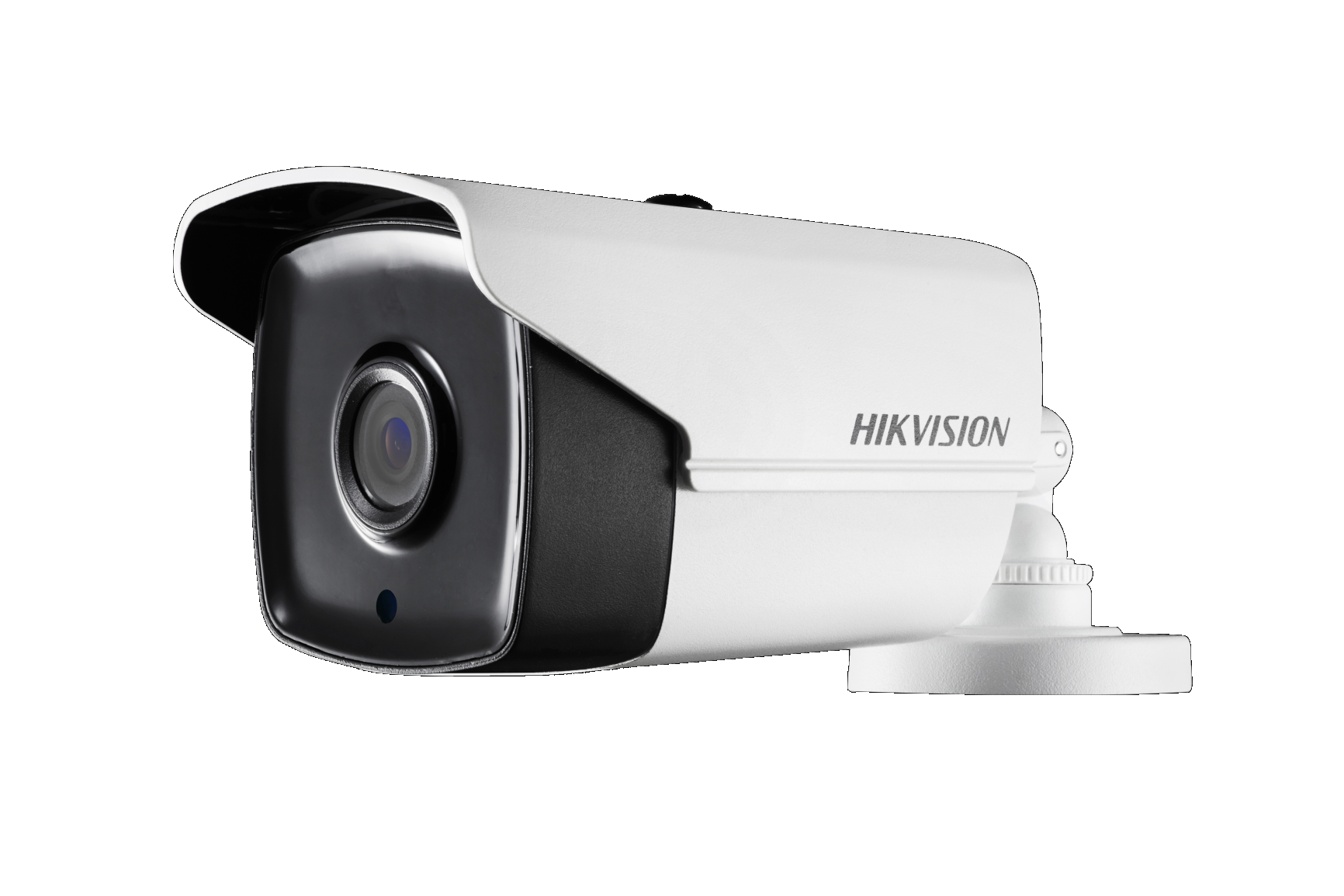

DS-2CE16H0T-ITF(2.8mm)

Kamera Turbo-HD Hikvision w obudowie typu Bullet. Rozdzielczość2560x1944@20kl/s, 4MP@25kl/s (P)30kl/s(N) Przetwornik 5MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, promiennik typu EXIR, dzień/noc ICR, Smart IR, DWDR, AGC, DNR, WB (ATW/MWB), BLC, obiektyw: 2.8mm, kąt widzenia 85.5st.. IP67, 3-osiowa regulacja położenia. Wymiary: 58x61x163mm, waga 350g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CE16H0T-ITF(2.8mm)(C)

Kod produktu zamiennego: 300512117

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 20 m IR distance
 OSD menu, 2D DNR, DWDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE16H0T-ITF
5 MP Bullet Camera




Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Language English
Functions Brightness, Sharpness, DNR , Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.3 W
Protection Level IP67
Material Metal
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 58 mm x 61 mm x 163 mm (2.28" x 2.40" x 6.42")
Weight Approx. 350 g (0.77 lb.)
Specification



Order Model
DS-2CE16H0T-ITF
Dimension
163 mm (6.42")
85 mm (3.346")
5
8

m
m

(
2
.
2
8
3
"
)
3
-
Ø

4
.
2

m
m

(
0
.
1
7
"
)
Ø
55
m
m

(2
.17
")
120°
1
2
0
°
Ø

7
0

m
m

(
2
.
7
6
"
)
61 mm
(2.40")


Accessory







DS-1280ZJ-XS Junction Box





0100001071122
