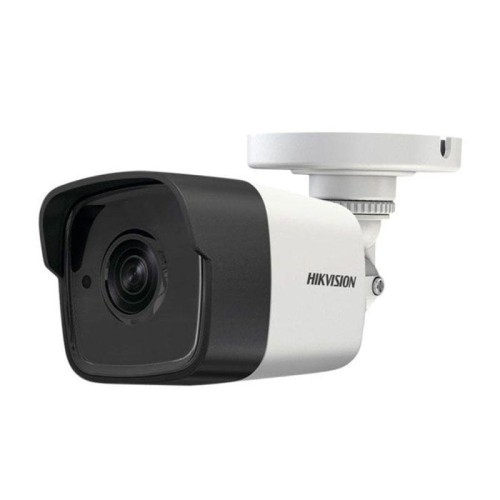

DS-2CE16H0T-ITE(3.6mm)(C)

Kamera analogowa typu mini Bullet 5MP PoC , przetwornik 5 MP CMOS, rozdzielczość 2560 (H) × 1944 (V); Min. Oświetlenie: 0.01 Lux @ (F2.0, AGC ON), 0 Lux dla IR; Obiektyw: 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105° Cyfrowy WDR, BLC, HLC, 2D DNR; 1 wyjście analogowe HD; Zasięg IR do 30m, Temp pracy - 40°C do 60°C; Zasilanie 12 VDC ±25%/PoC.af; IP67, Wymiary: 158.6 mm × Ø 70 mm; Waga 337 g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.8 mm, 3.6 mm, 6 mm fixed lens
 EXIR 2.0, smart IR, up to 20 m IR distance
 OSD menu, 2D DNR, DWDR
 PoC.af
 IP67
 Up the coax (HIKVISION-C)

DS-2CE16H0T-ITE
5 MP Bullet Camera




Camera
Image Sensor 5 MP CMOS image sensor
Resolution 2560 (H) x 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed focal lens
Horizontal Field of View 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
Frame Rate
PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR , Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%, PoC.af
Power Consumption Max. 5.4 W
Protection Level IP67
Material Metal
IR Range Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 58 mm x 61 mm x 163 mm (2.28" x 2.40" x 6.42")
Weight Approx. 350 g (0.77 lb.)
Specification



Order Model
DS-2CE16H0T-ITE
Dimension
163 mm (6.42")
85 mm (3.346")
5
8

m
m

(
2
.
2
8
3
"
)
3
-
Ø

4
.
2

m
m

(
0
.
1
7
"
)
Ø
5
5

m
m

(2
.1
7"
)
120°
1
2
0
°
Ø

7
0

m
m

(
2
.
7
6
"
)
61 mm
(2.40")


Accessory







DS-1280ZJ-XS Junction Box





0100001080326
