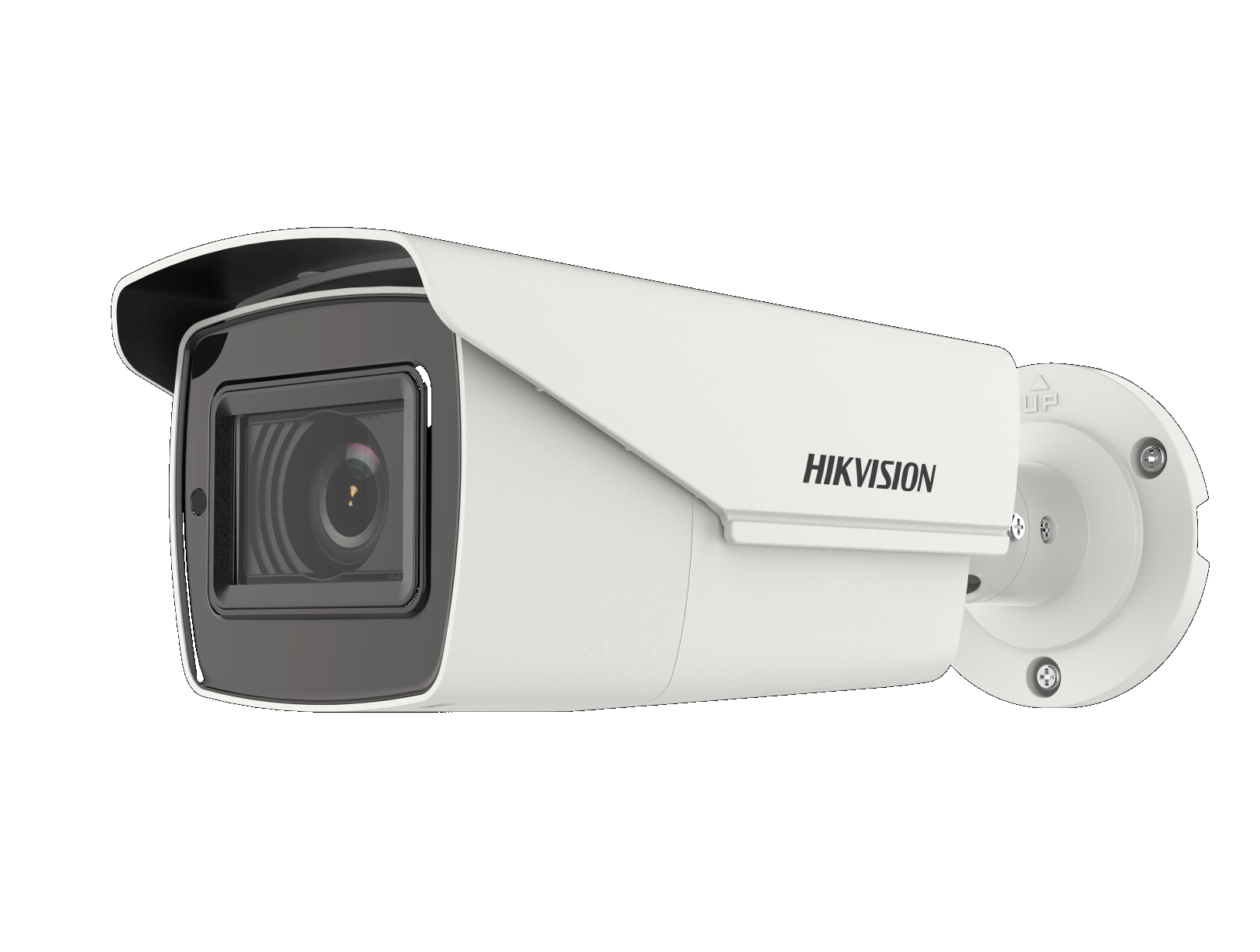

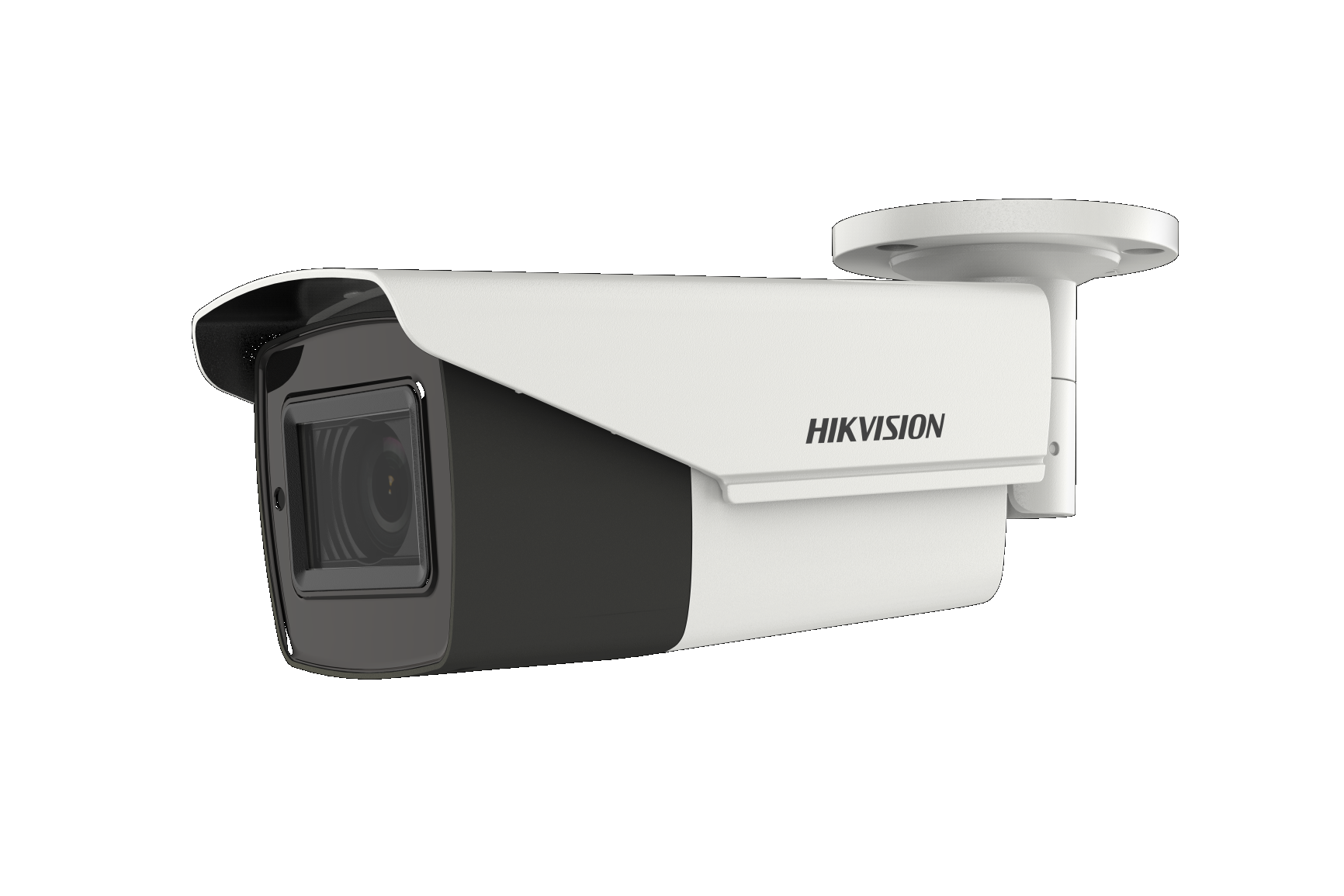

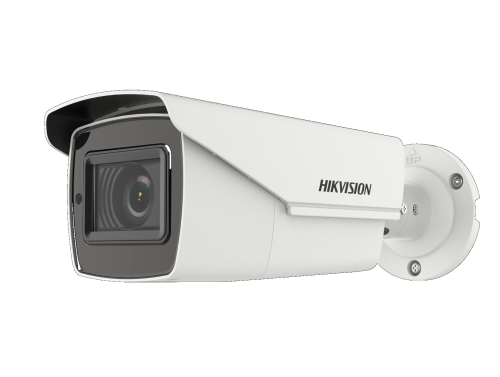

DS-2CE16H0T-AIT3ZF(2.7-13.5mm)

Kamera Turbo-HD Hikvision w obudowie typu Bullet. Rozdzielczość2560x1944@20kl/s, 4MP@25kl/s (P)30kl/s(N) Przetwornik 5MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR, dzień/noc ICR, Smart IR, DWDR, AGC, DNR, WB (ATW/MWB), BLC, menu OSD, obiektyw: 2.7-13.5 mm, kąt widzenia 95.7st.-29.1st.. IP67, 3-osiowa regulacja położenia. Wymiary: 84.5x92x255.1mm, waga 705g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC & 24 VAC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 5 MP high performance COMS
 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 40 m IR distance
 OSD menu, 2D DNR, DWDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE16H0T-(A)IT3ZF
5 MP Bullet Camera






Camera
Image Sensor 5 MP CMOS image sensor
Effective Pixels 2560 (H) x 1944 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 95.7° to 29.1°
Lens Mount Φ 14






Menu
AGC Support
D/N Mode Auto/Color/BW (Black and White)
White Balance ATW/MWB
BLC Support
DWDR (Digital Wide Dynamic Range) Support
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±15%, 24 VAC ±15%
Power Consumption
DS-2CE16H0T-IT3ZF: Max. 6.3 W
DS-2CE16H0T-AIT3ZF: Max. 8.9 W
Protection Level IP67
Material
Front cover: Metal
Main body: Plastic
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 84.5 mm x 92 mm x 255.1 mm (3.33" x 3.62" x 10")
Weight
DS-2CE16H0T-IT3ZF: Approx. 665 g (1.47 lb.)
DS-2CE16H0T-AIT3ZF: Approx. 705 g (1.55 lb.)


Order Model
DS-2CE16H0T-IT3ZF, DS-2CE16H0T-AIT3ZF
Dimension
92 mm (3.62" )
8
4
.
5

m
m

(
3
.
3
3
"

)255.1 mm (10" )
240.7 mm (9.47" )
155 mm (6.1" )
Ø 85.3 mm
(3.36" )
Ø 70 mm
(2.76" )
3 x 10-24UNC-2A
1
2
0
°

















Accessory















DS-1280ZJ-S
Junction Box
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
