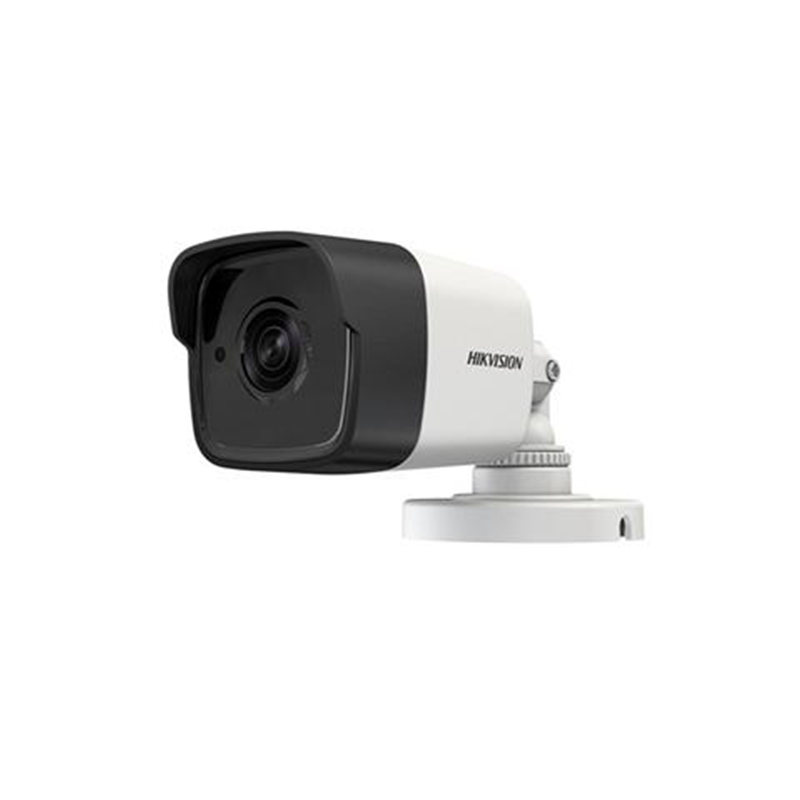

DS-2CE16D8T-ITPF(3.6mm)

Kamera Turbo HD w obudowie tulejowej. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.003Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 30m, promiennik typu EXIR, dzień/noc ICR, WDR 130dB, Smart IR, AGC, 3D DNR, WB (ATW/MWB), BLC/HLC, 4 maski prywatności, 4 strefy detekcji ruchu, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw: 3.6mm, kąt widzenia 79.1st.. IP67, 3-osiowa regulacja położenia. Wymiary 58x61x163mm. Waga około 185g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC, wyjście wideo 4w1 (TVI/AHD/CVI/CVBS), plastikowa obudowa....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm fixed focal lens
 130 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)


DS-2CE16D8T-ITPF
2 MP Ultra-Low Light Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm
Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Support
Day/Night Mode Auto/Color/BW (Black White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D/2D
Language English
Functions Brightness, Sharpness, Mirror, Smart IR, HLC
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 2.6 W
Ingress Protection IP67
Material Plastic
IR Range Up to 30 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 58 mm x 61 mm x 163 mm (2.28" x 2.40" x 6.42")
Weight Approx. 185 g (0.41 lb.)
Specification



Order Models
DS-2CE16D8T-ITPF
Dimension
163 mm (6.42")
85 mm (3.346")
58
mm
(2
.283
")
120°
61 mm
(2.40")


Accessory


DS-1280ZJ-XS Junction Box





010000180927
