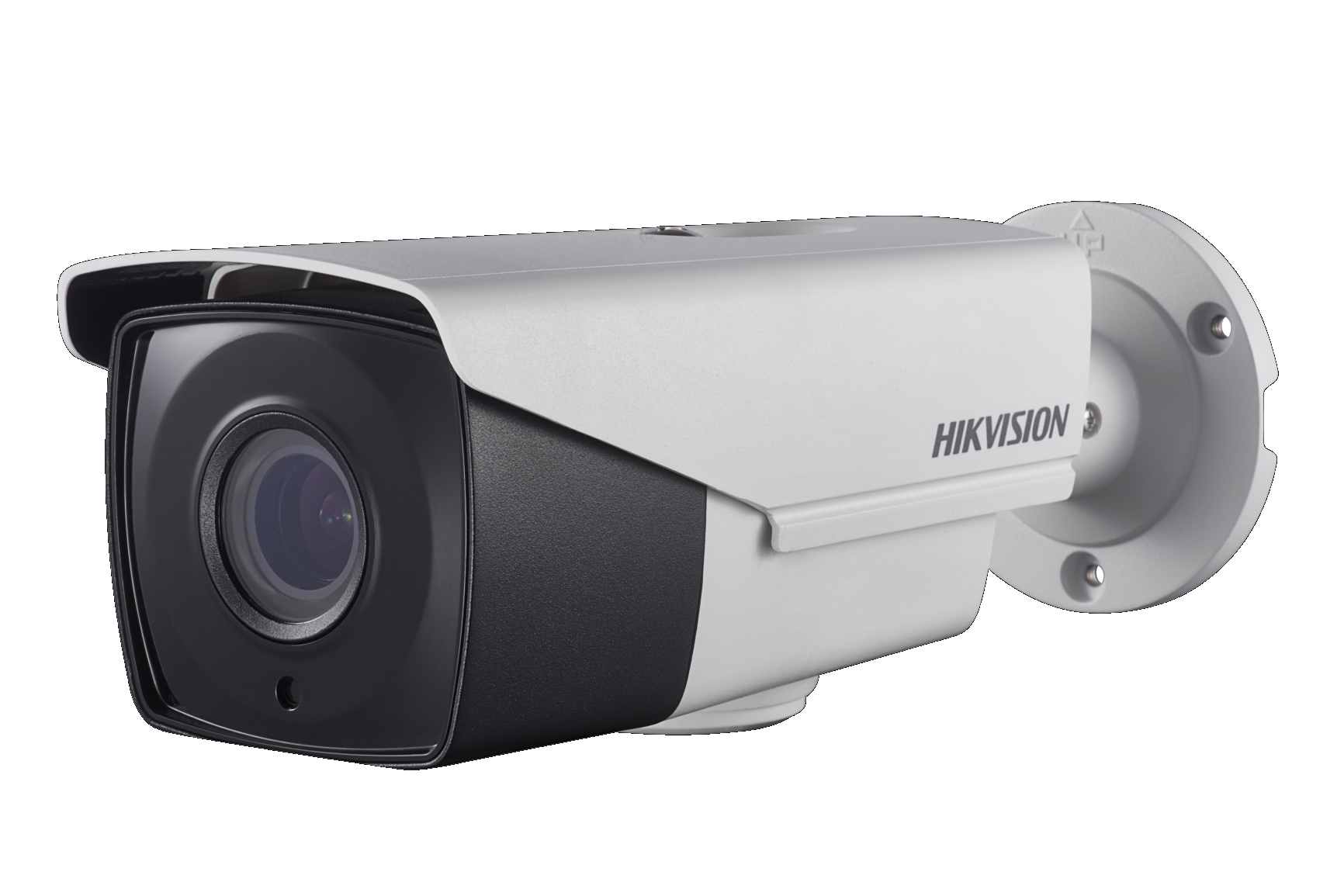

DS-2CE16D8T-AIT3ZE(2.8-12mm)

Kamera Turbo-HD Hikvision w obudowie typu Bullet. Rozdzielczość: PAL:1080p@25kl/s, NTSC: 1080p@30kl/s Przetwornik 2MP CMOS, czułość: 0.005Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR, dzień/noc ICR, Smart IR, 120dB true WDR, AGC, DNR, WB, BLC, obiektyw: 2.8-12mm, kąt widzenia 103-32.1st.. IP67, 3-osiowa regulacja położenia. Wymiary: 92 mm x 89 mm x 269.6 mm , waga 900g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC, 24VAC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2.0 megapixel high-performance CMOS
 HD analog output, up to 1080p resolution
 2.8 mm to 12 mm motorized vari-focal lens
 True Day/Night
 120 dB true WDR
 OSD menu, DNR, Smart IR
 EXIR 2.0, up to 40 m IR distance
 IP67
 PoC.at
 Up the Coax (HIKVISION-C)

DS-2CE16D8T-(A)IT3ZE
2 MP Ultra Low-Light VF PoC EXIR Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max.: 16 times
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View 32.1° to 103°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 90°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) On
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC±25%/ PoC.at
-A: 12 VDC±25%, 24 VDC±25%/ PoC.at
Power Consumption Max. 9 W
Ingress Protection IP67
Material Metal
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 92 mm x 89 mm x 269.6 mm (3.62" x 3.5" x 3.34")
Weight Approx. 900 g (1.98 lb.)
Specification



Order Models
DS-2CE16D8T-IT3ZE, DS-2CE16D8T-AIT3ZE
* PoC function is only available when cooperating with DS-1TPXXX.
Dimension
Φ 85.3 mm
(Φ 3.36")
Φ 4.3 mm
(Φ 0.17")
Φ 70 mm (Φ 2.76")
120°120°
92 mm (3.6")
8
9

m
m

(
3
.
5
"
)
269.6 mm (10.6")
155.6 mm
(6.2")
241.3 mm (9.5")


Accessory

DS-1280ZJ-S
Junction Box

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1H18
Video Balun
