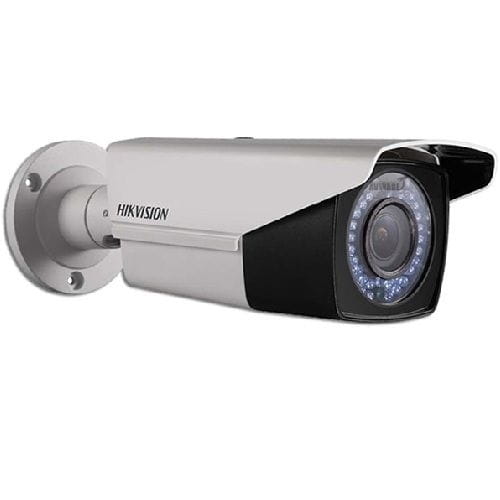

DS-2CE16D5T-AIR3ZH(2.8-12mm)

Kamera Turbo-HD Hikvision w obudowie tulejowej. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, dzień/noc ICR, WDR 120dB, strefa prywatności: 8 stref, detekcja ruchu: 4 strefy, AGC, DNR, WB (ATW/AWC-SET/ręczny), BLC, Smart IR, zoom cyfrowy (62x), Defog, Smart D-ZOOM, sterowanie po kablu koncentrycznym: Pelco-C (CVBS), Hikvision-C (HD-TVI); dwa złącza wideo (HD-TVI, CVBS), obiektyw typu motozoom: 2.8-12mm/F1.4, kąt widzenia 103°-32.1°. IP66, 3-osiowa regulacja położenia, wbudowana grzałka. Wymiary: 92x84.8x269.6mm. Waga około 900g. Temperatura pracy: -40°C~60°C. Zasilanie 12VDC/24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE16D5T-AIR3ZH
2MP CMOS Motorized Vari-focal IR Bullet Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* 2.8 – 12mm motorized vari-focal lens
* True Day/Night
* OSD menu, 3D DNR, Smart IR
* True WDR, up to 120dB
* Up to 40m IR distance
* Built-in heater
* IP66 weatherproof
* Up the Coax(HIKVISION-C, Pelco-C protocol)


Key Features





Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1944(H)*1092(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
Motorized VF lens; 2.8 - 12 mm @ F1.4
Angle of view: 103°- 32.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°
Synchronization Internal synchronization
WDR 120dB
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75Ω/BNC)
S/N Ratio ＞62dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On/off (15 characters, position programmable)
AGC Support
D/N Mode Color/BW/EXT
White Balance ATW/ AWC-SET/ Manual
Privacy Mask On/Off, maximum 8 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese,
Dutch, Turkish, Hebrew and Arabic
Functions
HSBLC, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction,
SMART D-ZOOM
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%, 24 VAC±15%,, Heater is available with 24VAC only
Power Consumption Max. 12W
Protection Level IP66
IR Range Up to 40m
Communication Up the coax, Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimensions 92 x 84.8 x 269.6mm(3.62” x 3.34” x 10.6”)
Weight 900 g



120°120°


Dimensions


DS-1H18
Video Balun





DS-1276ZJ
Horizontal Pole Mount


DS-1275ZJ
Vertical Pole Mount




DS-1280ZJ-S
Junction Box


DS-TT-X41T
TVI Tester

20150918
Accessories
Order Models
DS-2CE16D5T-AIR3ZH

92(3.6")269.6(10.6")
241.3(9.5")
155.6(6.2")
84.8(3.34")
Unit: mm
