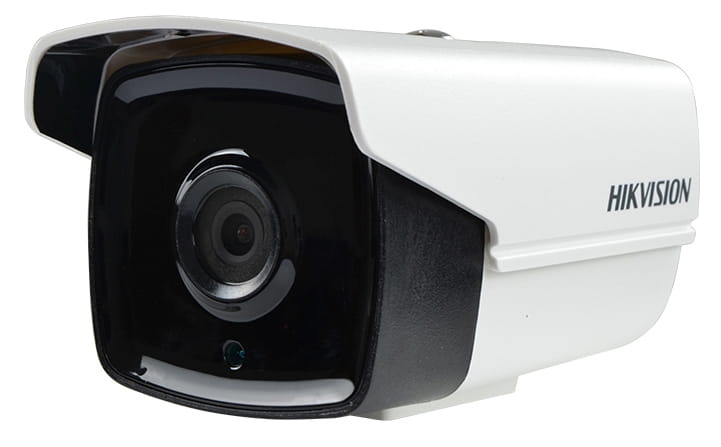

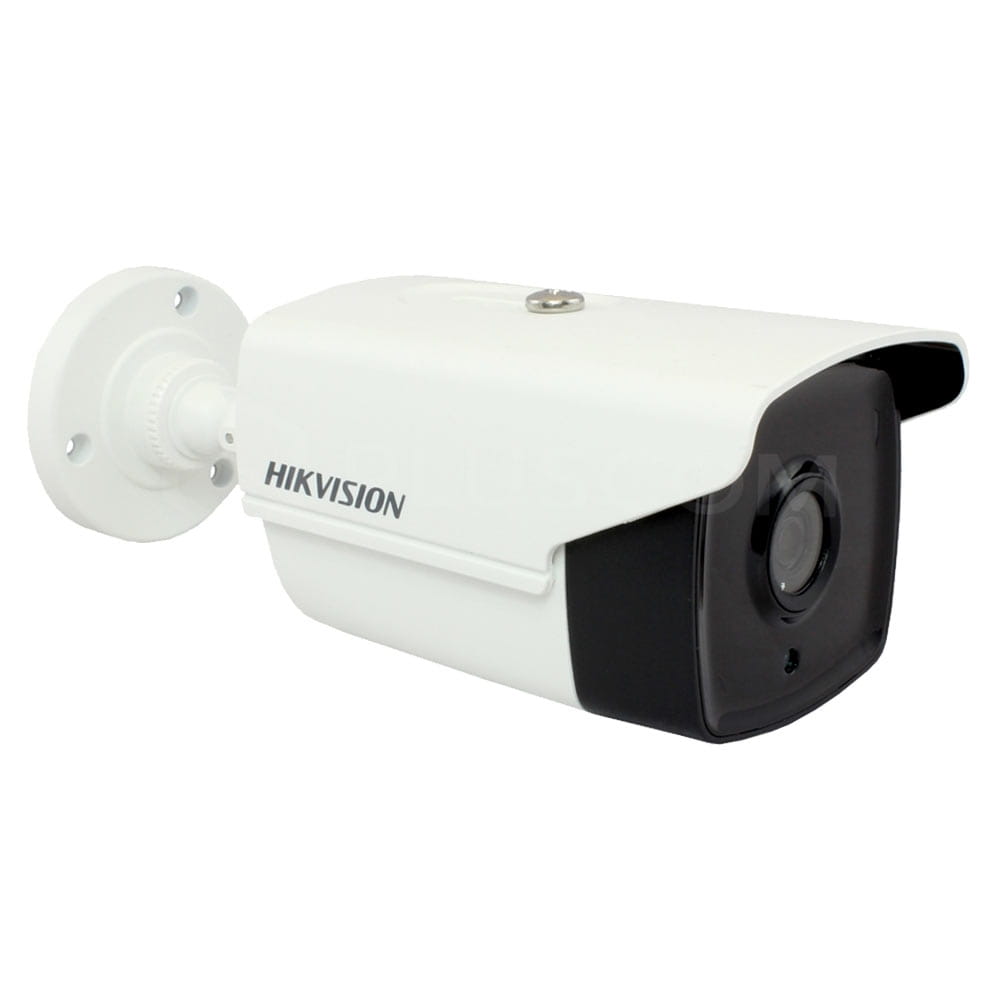

DS-2CE16D1T-IT3(3.6mm)

Kamera Turbo-HD Hikvision w obudowie tulejowej, przetwornik 1/2.7" Progressive Scan CMOS: rozdzielczość 1080p@30kl/s, czułość 0.1Lux(F1.2, wł. AGC), 0 Lux z IR, oświetlacz IR EXIR, zasięg 30~40m, dzień/noc ICR, obiektyw 3.6mm (opcjonalnie: 6/8/12/16mm (F1.2). Funkcje: DWDR, AGC, BLC, DNR, OSD (sterowanie po kablu sygnałowym). Obudowa IP66. Wymiary: 86.22×82.05×220.13mm, waga 430g. Temperatura pracy -40°C~60°C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CE16D1T-IT3


Key Features
 2 Megapixel high-performance CMOS
 Turbo HD output, up to 1080P resolution
 True Day/Night, Smart IR
 EXIR technology, up to 40m IR distance
 IP66 weatherproof
 OSD menu controlled via UTC
Specification
Model
Parameter
DS-2CE16D1T-IT3
Turbo HD1080p EXIR Bullet Camera
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Signal System PAL/NTSC
Effective Pixels 1930(H)*1088(V)
Min. Illumination 0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
3.6mm (6mm, 8mm, 12mm, 16mm optional)
Angle of View: 90°(3.6mm), 55.4°(6mm), 41.6°(8mm), 26.6°(12mm),
20.6°(16mm)
Lens Mount M12
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 turbo HD output
S/N Ratio More than 52dB
Menu
Camera ID On/off (0-255)



©2006 – 2014 by HIKVISION. All rights reserved.
2
AGC Support
D/N Mode Color/BW/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/Off
Language English/Chinese
Functions Digital noise reduction, Mirror
General
Working
Temperature/Humidity
-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range Up to 40m
Communication
Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimensions 86.22x82.05x220.13mm(3.39”x3.23”x8.67”)
Weight 430 g (0.95 lbs)
Order Model
DS-2CE16D1T-IT3
Dimension
