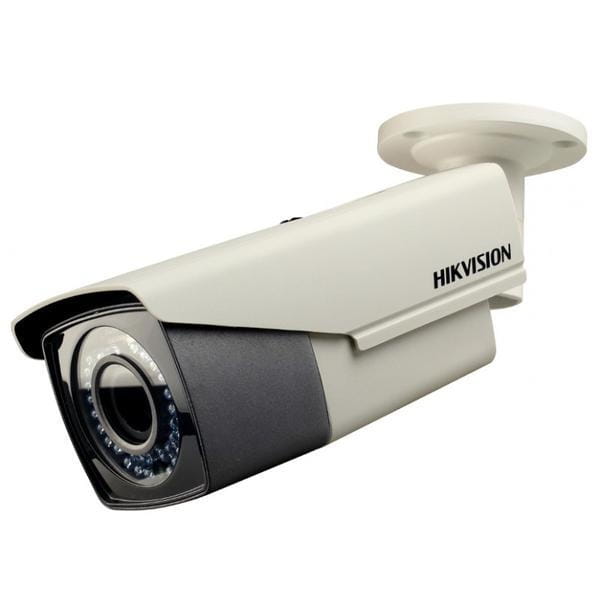

DS-2CE16D1T-AIR3Z

Kamera Turbo HD Hikvision w obudowie tulejowej. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, dzień/noc ICR, strefa prywatności: 2 strefy, detekcja ruchu: 4 strefy, AGC, DNR, BLC (Auto, użytkownika, jedno dotknięcie 8000K, 6000K, 4200K, 3000K), BLC, Smart IR, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw typu motozoom: 2.8~12mm/F1.4, kąt widzenia 114.5°~35.1°. IP66, 3-osiowa regulacja położenia. Wymairy 92×84.8x269.6mm. Waga około 1kg. Zakres temperatur: -40°~60°. Zasilanie 12VDC/24VAC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE16D1T-(A)IR3Z
HD1080P Motorized Vari-focal IR Bullet Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* 2.8 – 12mm motorized vari-focal lens
* True Day/Night, Smart IR
* Up to 40m IR distance
* IP66 weatherproof
* OSD menu
* 24V AC/ 12V DC (-A)
* Up the Coax(HIKVISION-C protocol)

Key Features










Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1930(H)*1088(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR; 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
Motorized VF lens; 2.8 - 12 mm @ F1.4
Angle of view: 114.5°- 35.1°
Lens Mount φ14
Day & Night ICR
Angle Adjustment Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
Menu
Camera ID On/off (0-255)
AGC Support
D/N Mode Color/BW/Auto/EXT
White Balance Auto/User/Push/8000K/6000K/4200K/3000K
Privacy Mask On/Off, maximum 2 zones
Motion Detection On/Off, maximum 4 zones
BLC Support
Anti-flicker On/Off
Language English/Chinese
Functions Digital noise reduction, Mirror
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%; -A: 12 VDC±15% 24 VAC±15%,
Power Consumption Max. 5W; -A: Max. 6W
Protection Level IP66
IR Range Up to 40m
Communication Up the coax, Protocol: HIKVISION-C(TVI output)
Dimensions 92 x 84.8 x 269.6mm(3.62” x 3.34” x 10.6”)
Weight 900 g

Order Models
DS-2CE16D1T-IR3Z, DS-2CE16D1T-AIR3Z



120°120°



Dimensions




DS-1276ZJ
Horizontal Pole Mounting


20150918
Accessories
92(3.6")269.6(10.6")
241.3(9.5")
155.6(6.2")
84.8(3.34")
Unit: mm


DS-1275ZJ DS-1280ZJ-S DS-1H18 X41T
Vertical Pole Mounting Junction Box Video Balun Camera Tester
