DS-2CE16D0T-IT3F(2.8mm)

Kamera HD-TVI/AHD/CVI/CVBS w obudowie tulejowej. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, diody EXIR, dzień/noc ICR, DNR, Smart IR, obiektyw: 2.8mm, kąt widzenia 103st.. IP66, 3-osiowa regulacja położenia. Wymairy 86.22x82.05x220.13mm. Waga 430g. Zakres temperatur: -40st.~60st.. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CE17D0T-IT3F(2.8mm)(????)

Kod produktu zamiennego: 300512834

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE16D0T-IT3F

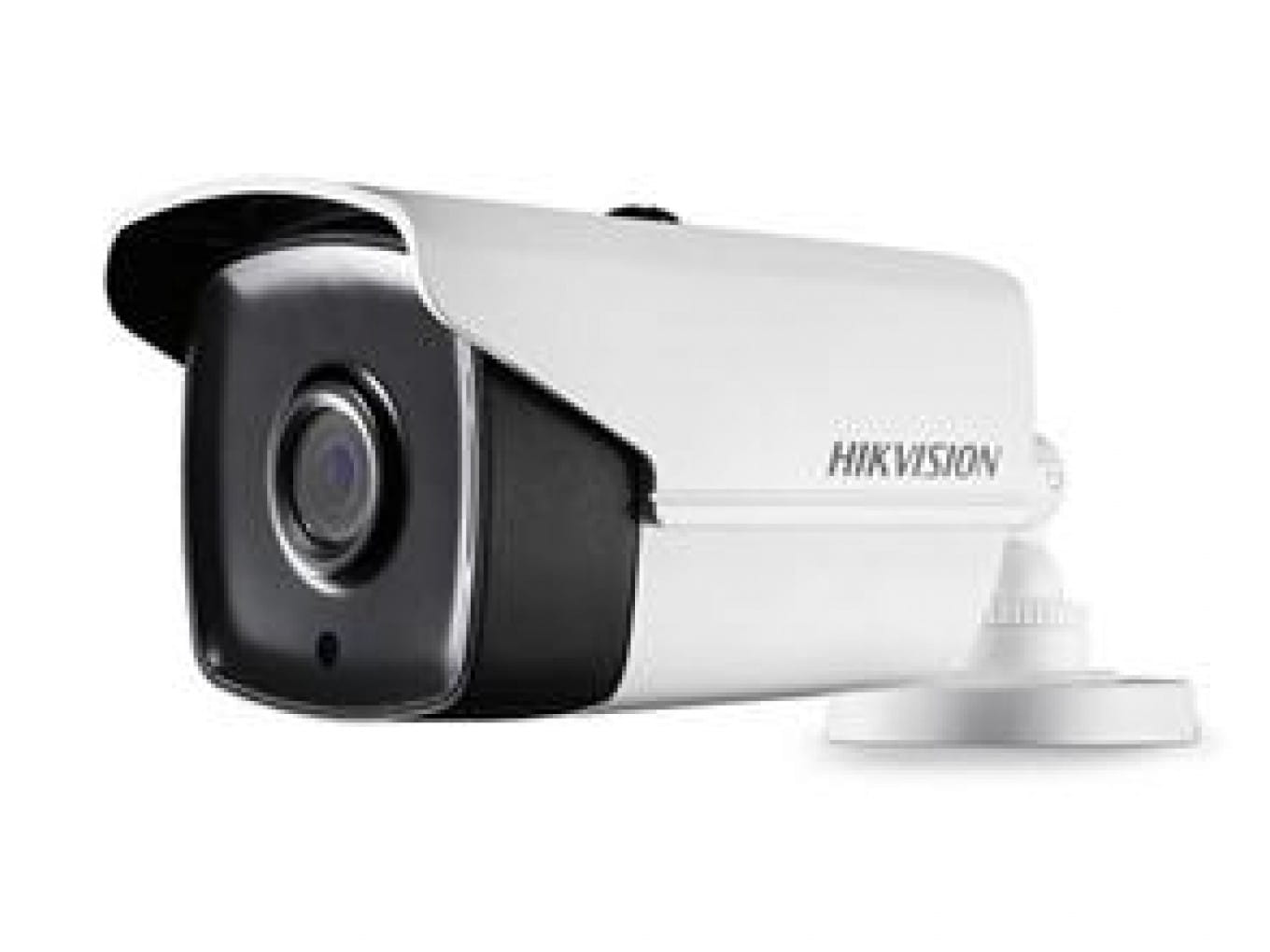

HD 1080p EXIR Bullet Camera

* 2 megapixel high performance CMOS
* Analog HD output, up to 1080p resolution
* Day/Night switch
* Smart IR
* Up to 40 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66

Key Features










Specifications




Camera
Image Sensor 2MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) x 1080 (V)
Min. illumination 0.01 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
3.6 mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional)
Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm), 37.7° (8 mm), 24.2° (3.6 mm), 18.8° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62 dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 40 m
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.4" x 3.2" x 8.9")
Weight 430 g (0.95 lb.)

Order Model
DS-2CE16D0T-IT3F







226 mm (8.9")
86.7 mm (3.4")
8
1.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
3-Φ 4.2 mm
(0.17")
1
2
0

°

1
2
0

°



Accessories



DS-1280ZJ-XS
Junction Box
DS-1H18
Video Balun
X41T
Camera Tester





Dimensions

0100001061107
