DS-2CE16D0T-IT3(16mm)

Kamera HD1080p,2MP CMOS Sensor, 2 pcs EXIR LEDs, 40m IR, Outdoor EXIR Bullet, ICR, 0.1 Lux/F1.2, 12 VDC, Smart IR, DNR, IP66, 16mm Lens...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE16D0T-IT3

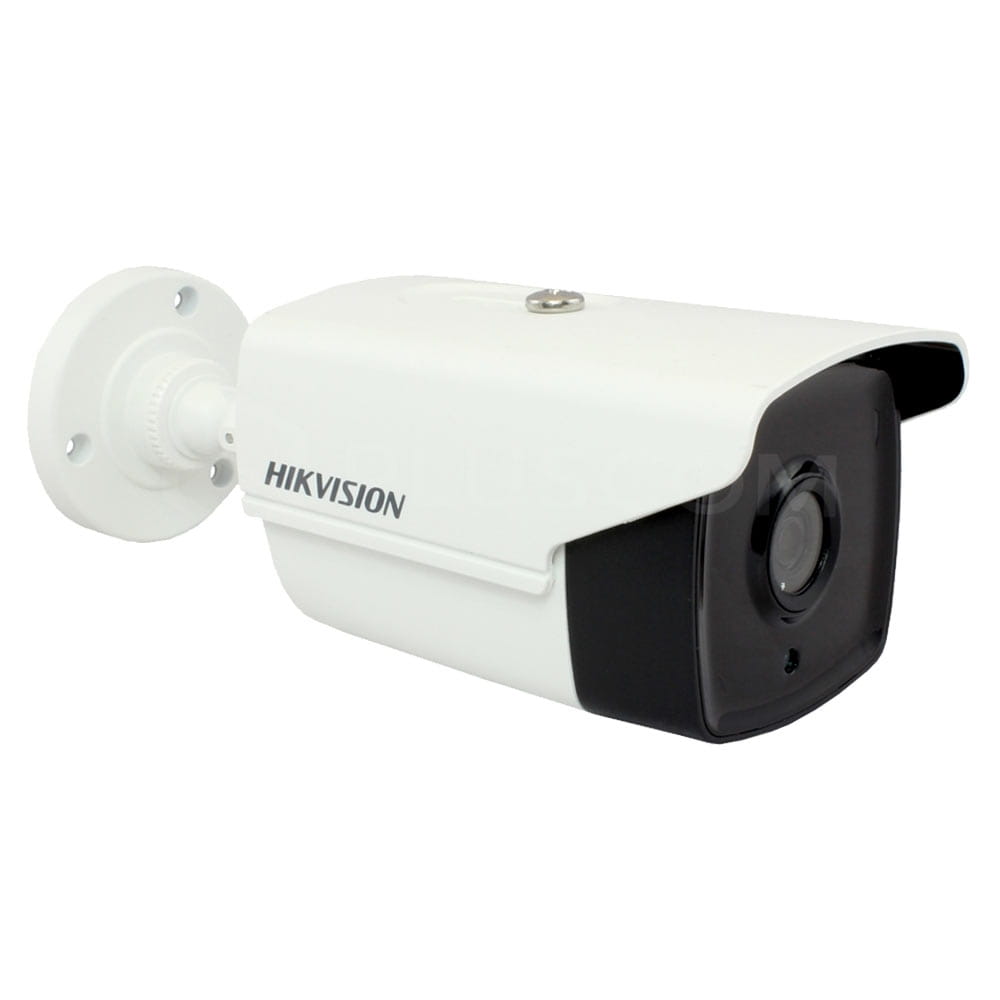

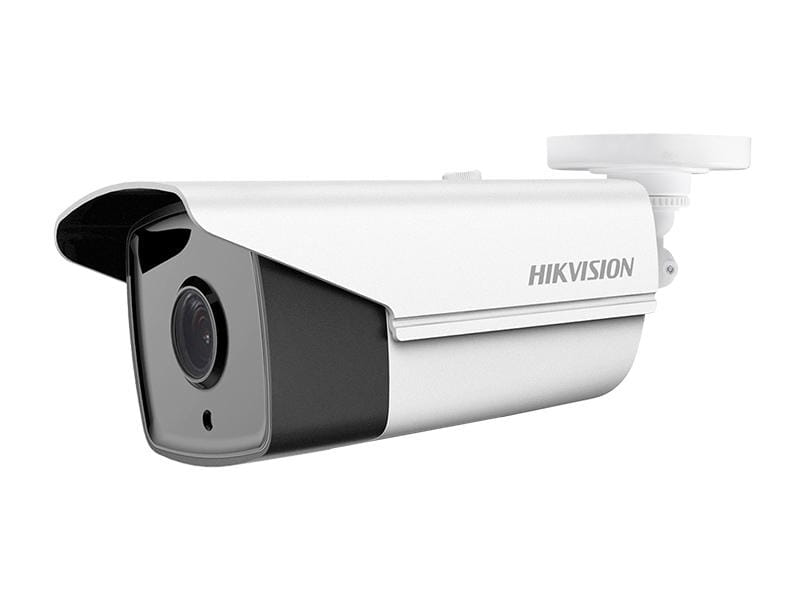

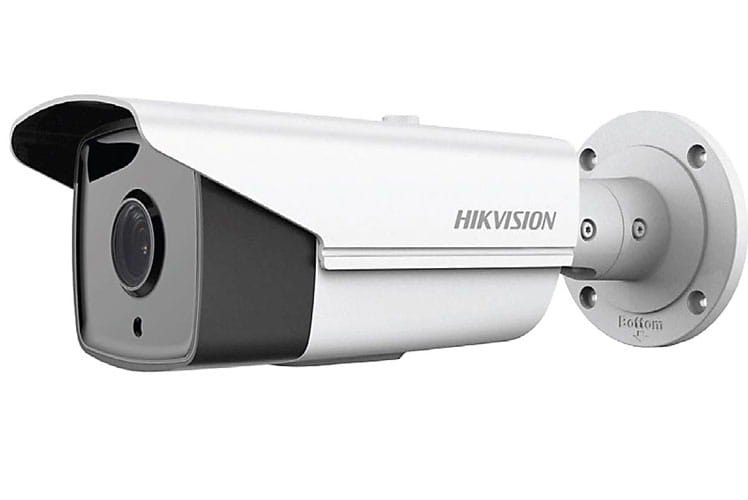

HD1080P EXIR Bullet Camera

2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night, Smart IR
EXIR technology, up to 40m IR distance
IP66 weatherproof

Key Features










Specifications

Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 40m
Dimensions 86.22x82.05x220.13mm(3.39”x3.23”x8.67”)
Weight 430 g (0.95 lbs)

Order Models
DS-2CE16D0T-IT3





Dimensions
20150918
Accessories


DS-1280ZJ-XS DS-1H18 X41T
Junction box Video Balun Camera Tester
