DS-2CE16C0T-IRP(2.8mm)

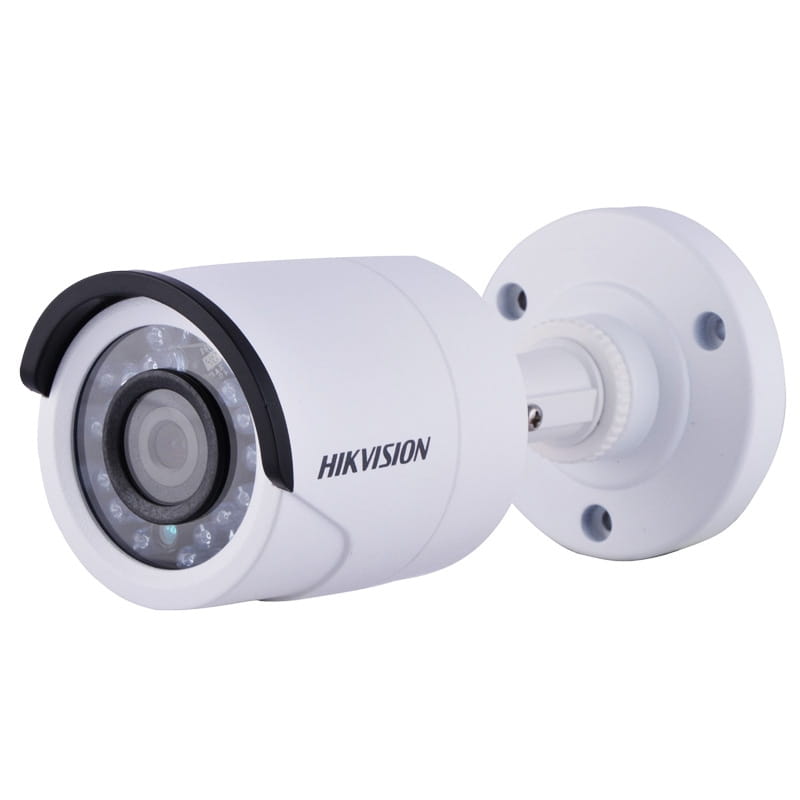

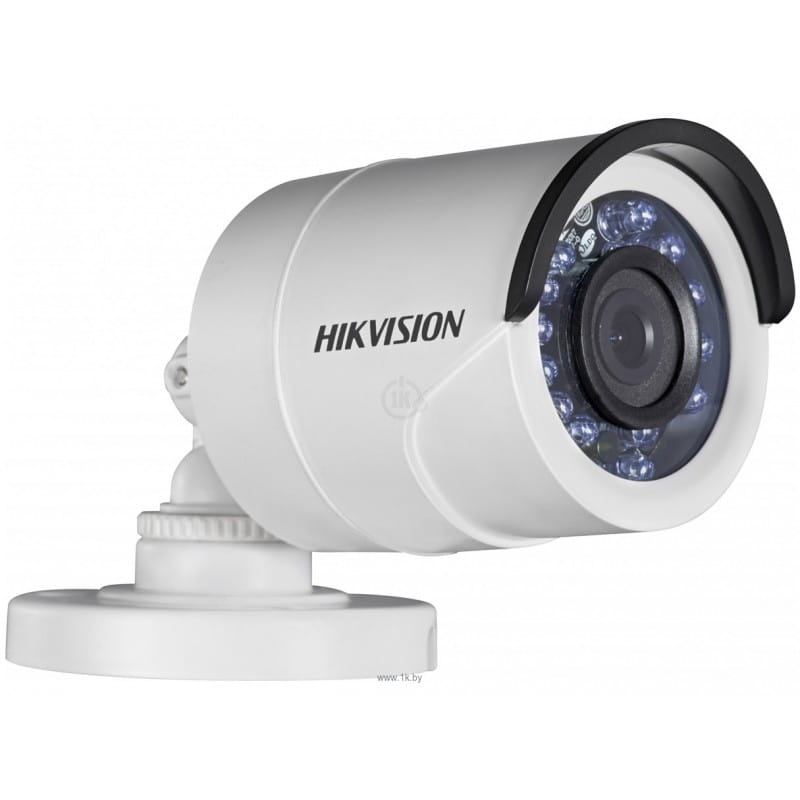

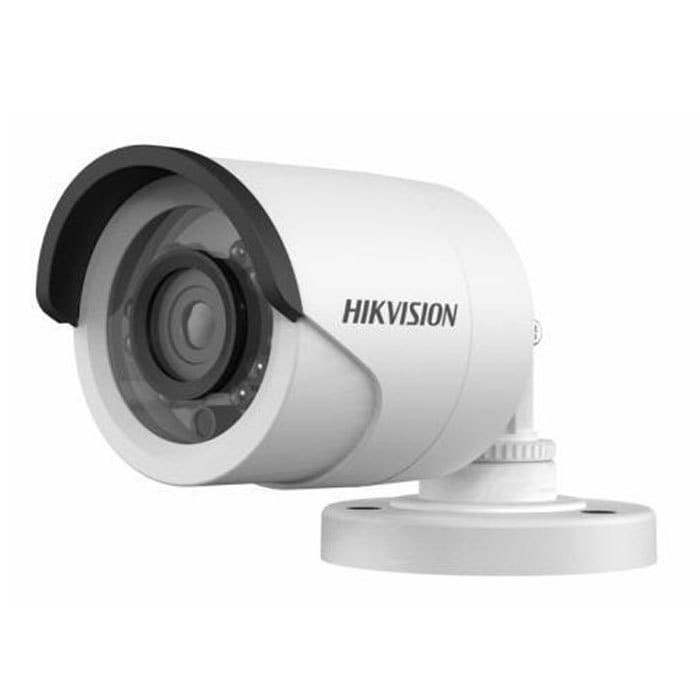

Kamera Turbo-HD Hikvision w miniaturowej obudowie tulejowej, przetwornik: CMOS: rozdzielczość 720p@30kl/s., czułość 0.1Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR 20m, SMART IR, dzień/noc ICR, obiektyw 2.8mm (F1.2). Wyjście BNC: 1xTurbo-HD. Funkcje:DNR. Obudowa IP66. Wymiary: śr.70×149.5mm, waga 290g. Temperatura pracy -40°C~60°C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2015 by HIKVISION. All rights reserved.
1
DS-2CE16C0T-IRP


Key Features
 1.0 Megapixel high-performance CMOS
 Analog HD output, up to 720P resolution
 True Day/Night
 DNR, Smart IR
 Up to 20m IR distance
 IP66 weatherproof
Specification
Model
Parameter
DS-2CE16C0T-IRP
Turbo HD720p IR Bullet Camera
Camera
Image Sensor 1MP CMOS Image Sensor
Effective Pixels 1296(H)*732(V)
Min. Illumination 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25(1/30) s to 1/50,000 s
Lens
3.6mm (2.8mm, 6mm optional)
Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
Lens Mount M12
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Working -40 °C - 60 °C (-40 °F - 140 °F)



©2006 – 2015 by HIKVISION. All rights reserved.
2
Temperature/Humidity Humidity 90% or less (non-condensing)
Power Supply 12V DC±15%
Power Consumption Max. 4W
Weather Proof Ratings IP66
IR Range Up to 20m
Dimension Φ70x149.5 mm (Φ2.76” x5.89”)
Weight 290g (0.64 lb)
Order Model
DS-2CE16C0T-IRP
Dimension
unit:mm
154.5(6.08")
n54.7(2.15")
n70(2.76")
3- n4.2(0.17")
58.3(2.3")


Accessary




DS-1280ZJ-XS DS-1H18 DS-TT-X41T
Junction box Video Balun TVI Tester
