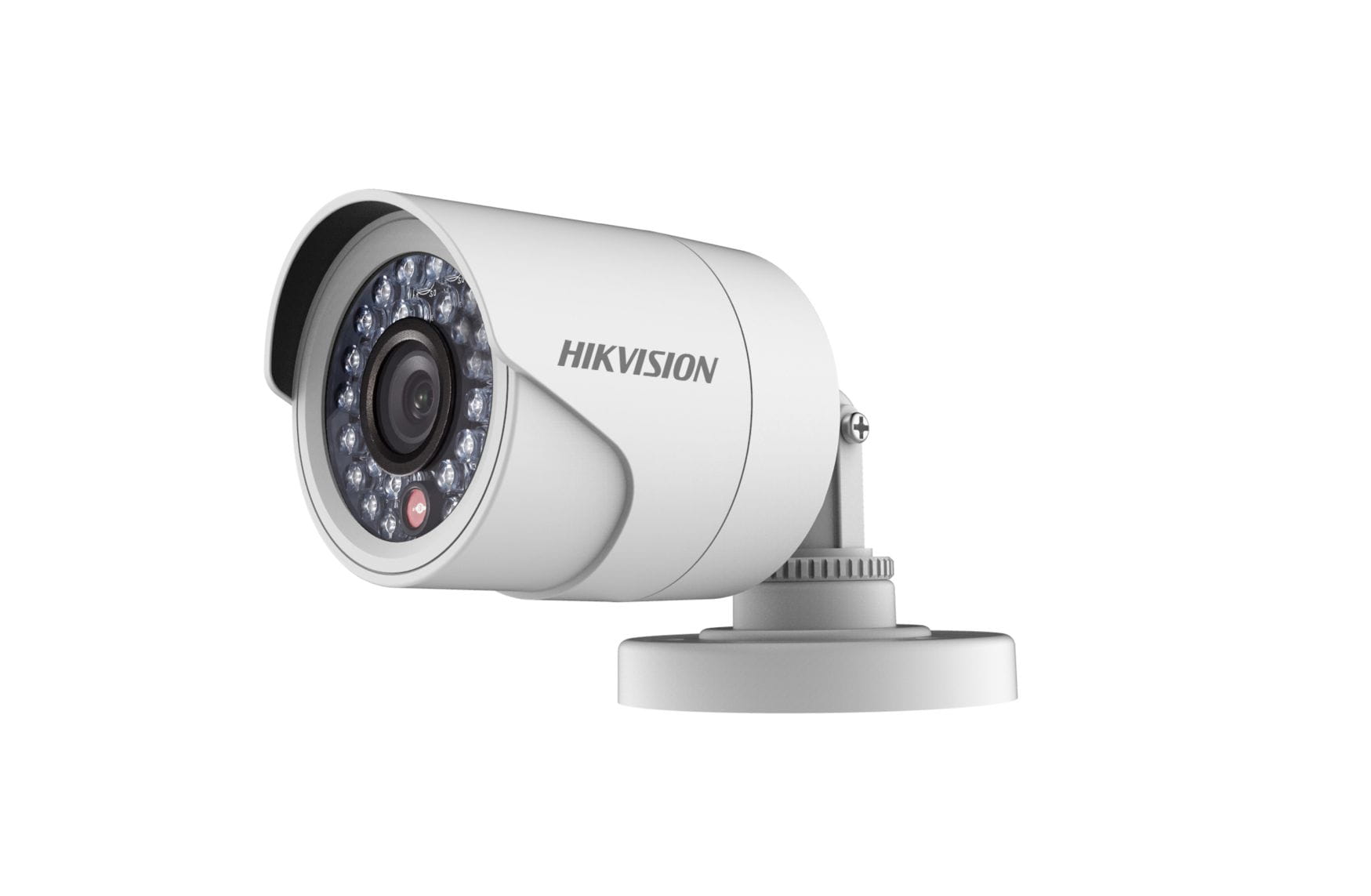

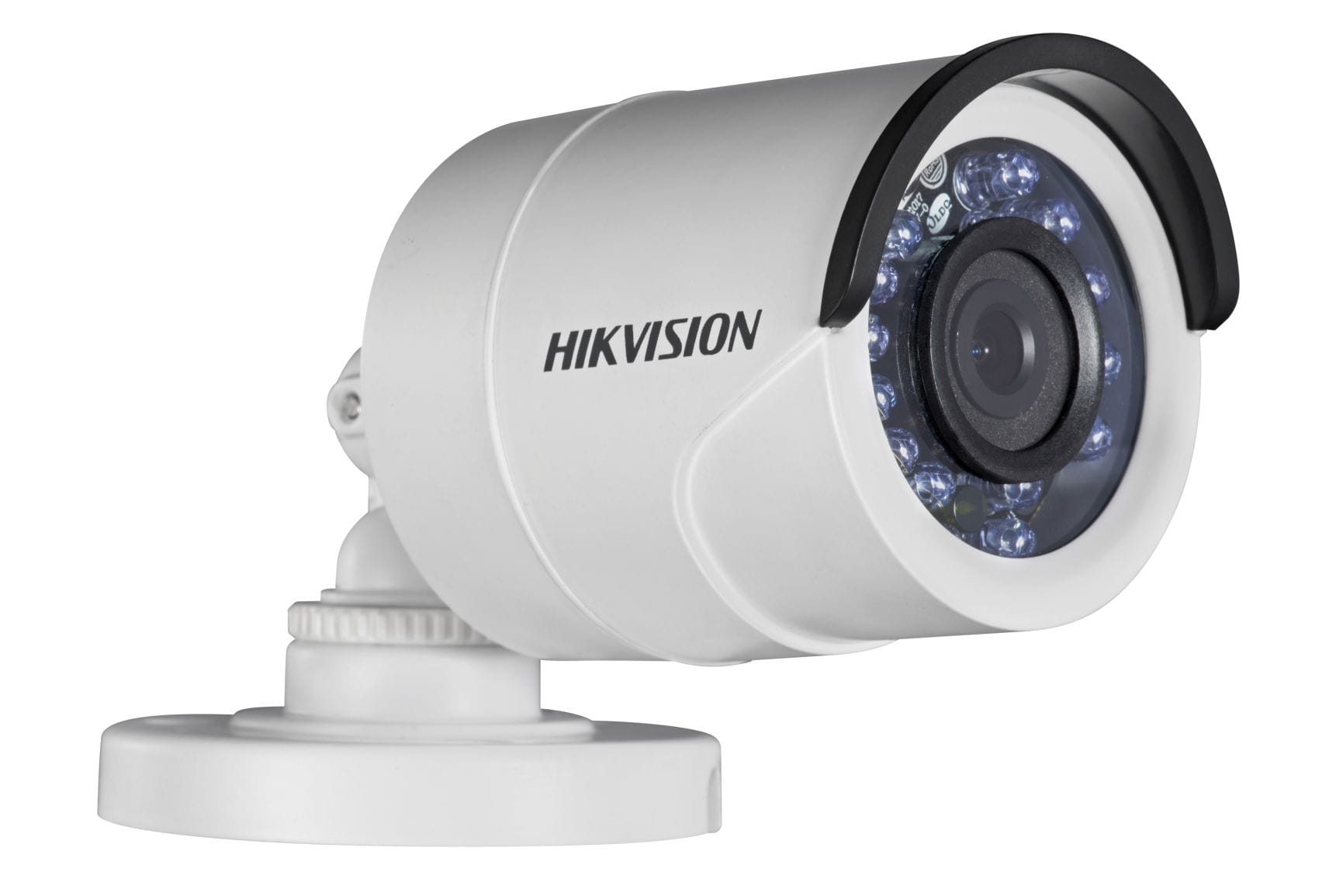

DS-2CE16C0T-IRF(6mm)

Kamera analogowa TVI/AHD/CVI/CVBS, obudowa tulejowa. Rozdzielczość 720p, Przetwornik 1MP CMOS, czułość: 0.1Lux@ F1.2 (wł. AGC), 0 Lux z IR, zasięg IR do 20m, dzień/noc ICR, DNR, Smart IR, obiektyw: 6mm. IP66, 3-osiowa regulacja położenia. Wymiary śr.70×154.5mm. Waga 400g. Zakres temperatur: -40°~60°. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE16C0T-IRPF
HD720p IR Bullet Camera

* 1 megapixel high-performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66
Key Features









Specifications




Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296(H) x 732(V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30 )s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08")
Weight 300 g (0.66 lb.)

Order Model
DS-2CE16C0T-IRPF







153.6 mm (6.05")
6
0.
4

m
m

(
2
.
3
8"
)
Φ

5
5

m
m

(
2
.
1
7"
)
Φ

7
0

m
m

(
2
.
7
6"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)


Dimensions

Accessories


DS-1280ZJ-XS DS-1H18 X41T
Junction Box Video Balun Camera Tester
