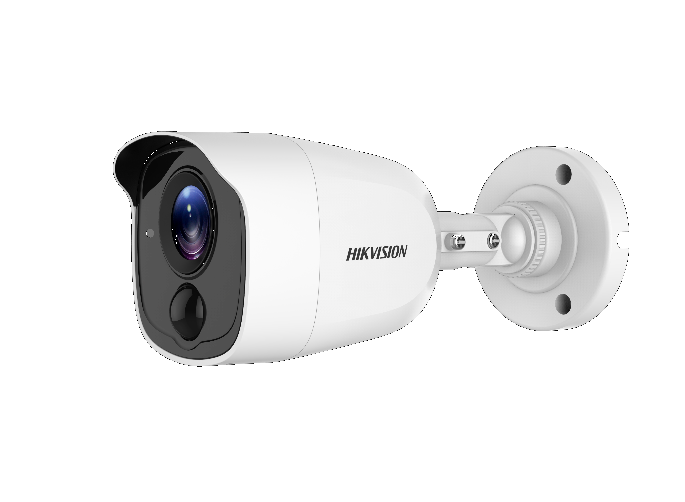

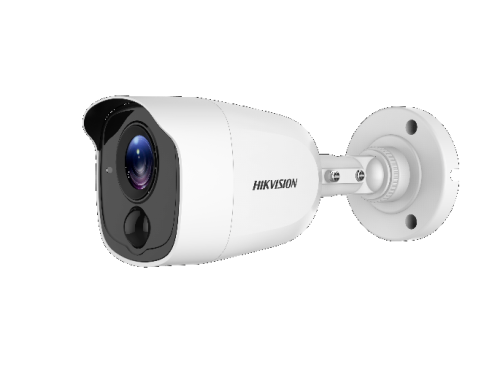

DS-2CE11D8T-PIRL(3.6mm)

Kamera Turbo-HD Hikvision w obudowie typu Bullet. Rozdzielczość PAL:1080p@25kl/s, NTSC: 1080p@30kl/s Przetwornik 2MP CMOS, czułość: 0.005Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 20m, promiennik typu EXIR, dzień/noc ICR, Smart IR, PIR: kąt widzenia 110st., zasięg 11m,120dB true WDR, AGC, DNR, WB, BLC, obiektyw: 3.6mm, kąt widzenia 82.6st.. IP67, 3-osiowa regulacja położenia. Wymiary: 68 mm x 70 mm x 179.8 mm , waga 345g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm fixed focal lens
 PIR detection, visual alarm
 120 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 20 m IR distance
 IP67
 Up the coax (HIKVISION-C)

DS-2CE11D8T-PIRL
2 MP Ultra-Low Light PIR Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm, 3.6 mm fixed focal lens
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm)
Lens Mount M12
Visual Alarm Yes
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
White Light Alarm/Off
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.5 W
Ingress Protection IP67
Material Metal
IR Range Up to 20 m
PIR Range Angle: 110°, Range:11 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 68 mm x 70 mm x 179.8 mm ( 2.68" x 2.76" x 7.08" )
Weight Approx. 345 g (0.76 lb.)
Specification



Order Models
DS-2CE11D8T-PIRL
Dimension
179.8 mm (7.08" )
100.3 mm (3.95" )
68 mm (2.68" )
7
0

m
m

(
2
.
7
6
"

)
3
-
Ø

4
.
2

m
m

(
0
.
1
7
"

)
Ø 55 mm
(2.17" )
Ø

7
0

m
m

(
2
.
7
6
"

)
120°


Accessory

DS-1280ZJ-XS
Junction Box

DS-1H18
Video Balun
