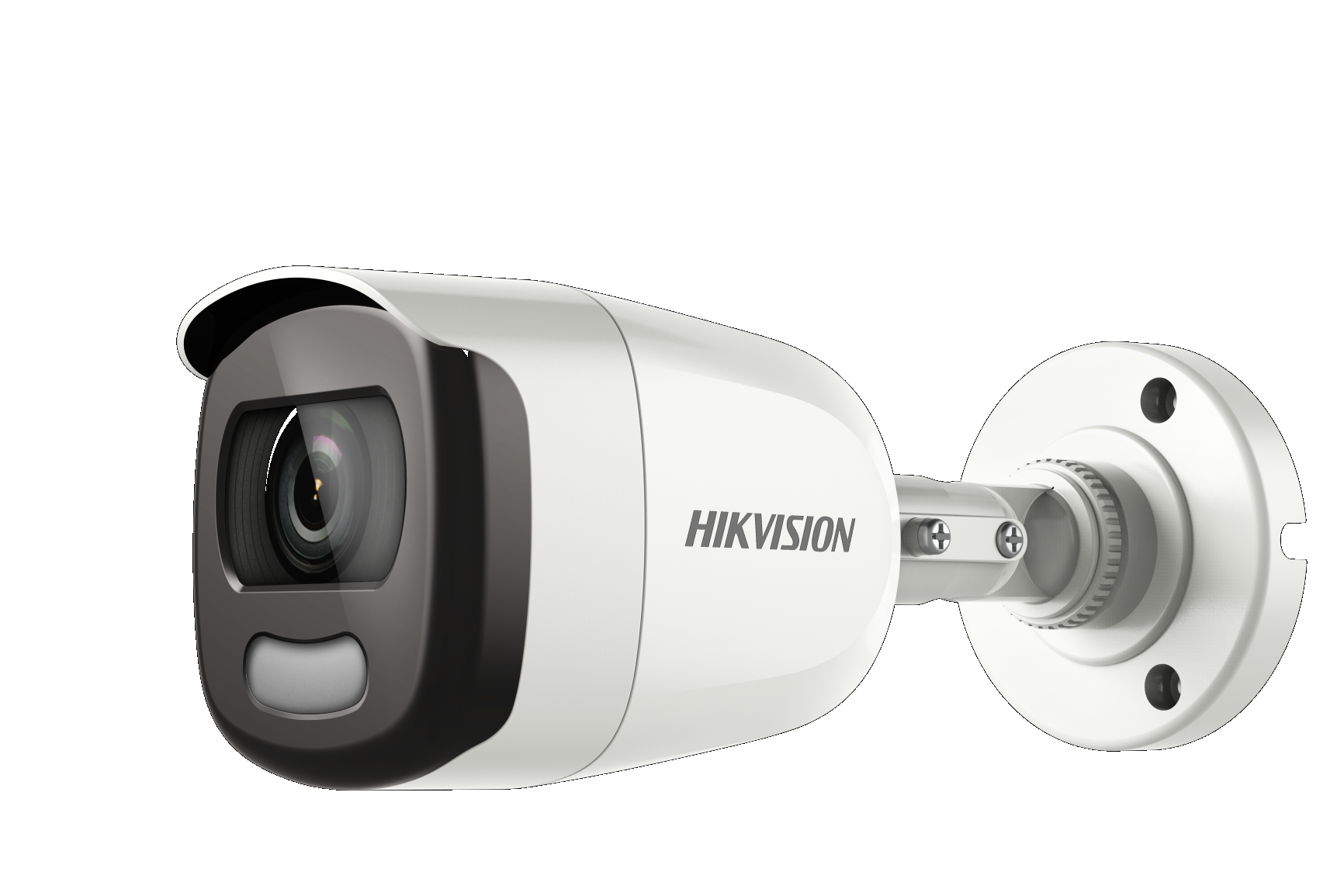

DS-2CE10DFT-F(6mm)

Kamera Turbo-HD Hikvision ColorVu w obudowie typu bullet. Rozdzielczość 1080p, Przetwornik 2MP CMOS, czułość: 0.0005Lux (F1.0, wł. AGC), 0 Lux ze światłem białym, zasięg światła białego do 20m, 3D DNR, True WDR, OSD Menu(Up the Coax), obiektyw 6mm, kąt widzenia 52.8st., Obraz kolorowy przez 24h, IP67, Wymiary śr. 181.4 mm x 70mm x 68 mm...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2 MP high performance CMOS
 1920 x 1080 resolution
 Full time color
 3.6 mm, 6 mm fixed lens
 Up to 20 m white light distance
 OSD menu, 3D DNR, true WDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE10DFT-F
2 MP Full Time Color Bullet Camera





Specifications







Camera
Image Sensor 2 MP CMOS image sensor
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16x
Lens 3.6 mm, 6 mm fixed lens
Horizontal Field of View 83.6° (3.6 mm), 52.8° (6 mm)
Lens Mount M16
Day & Night Color
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Yes
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
WDR Yes
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 3 W
Protection Level IP67
Material Metal
White Light Up to 20 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 181.4 mm x 70 mm x 68 mm (7.14" x 2.75" x 2.68")
Weight Approx. 390 g (0.86 lb.)



Order Model
DS-2CE10DFT-F
Dimension
181.4 mm (7.14" )
101.9 mm (4.01" )68 mm (2.68" )
70
mm
(2.76
" )
Ø 55 mm (2.17" )
120°


Accessory




DS-1280ZJ-XS
Junction Box






0100001080509
