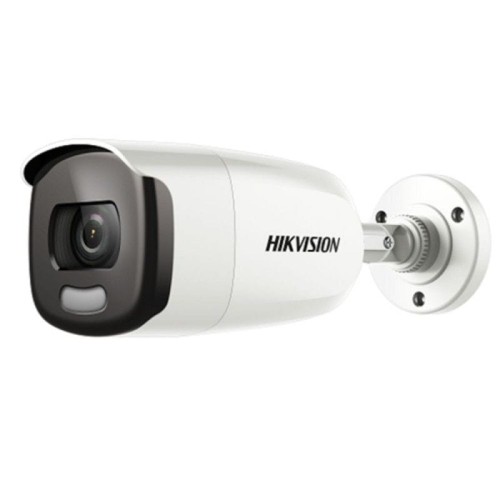

DS-2CE10DFT-F28(2.8mm)

Kamera Turbo-HD Hikvision ColorVu w obudowie typu bullet. Rozdzielczość 1920 x 1080, Przetwornik 2MP CMOS, czułość: 0.0005Lux (F1.0, wł. AGC), 0 Lux ze światłem białym, zasięg światła białego do 20m, 3D DNR,AGC, HLC, BLC, True WDR, OSD Menu, obiektyw 2.8mm, kąt widzenia 104st., 3-osiowa regulacja położenia, możliwość przełączenia wyjść wideo: TVI/AHD/CVI/CVBS, Maski prywatności: 4 obszary, Detekcja ruchu: 4 obszary, Kolorowy obraz 24h, IP67, Wymiary śr. 181.4 mm x 70mm x 68 mm, Zasilanie 12 VDC, Waga 390g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

 2 MP, 1920 x 1080 resolution
 24-hour color image
 2.8 mm fixed focal lens
 Up to 20 m white light distance
 OSD menu, 3D DNR, true WDR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67

DS-2CE10DFT-F28
2 MP Full Time Color Camera





Specification


Camera
Image Sensor 2 MP CMOS
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. illumination 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm fixed lens
Field of View 2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
Lens Mount M16
Day & Night Color
WDR (Wide Dynamic Range) 130 dB
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
Menu
Image Mode STD/HIGH SAT
AGC Yes
White Balance Auto/Manual
HLC Yes
BLC (Backlight Compensation) Yes
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
WDR Yes
Function Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 3 W
Protection Level IP67
Material Metal
White Light Up to 20 m
Communication HIKVISION-C
Dimensions 181.4 mm x 70 mm x 68 mm (7.14" x 2.75" x 2.68")
Weight Approx. 390 g (0.86 lb.)



Order Model
DS-2CE10DFT-F28
Dimension
181.4 mm (7.14" )
101.9 mm (4.01" )68 mm (2.68" )
70
mm
(2.76
" )
Ø 55 mm (2.17" )
120°


Accessory




DS-1280ZJ-XS
Junction Box






0100001090719
