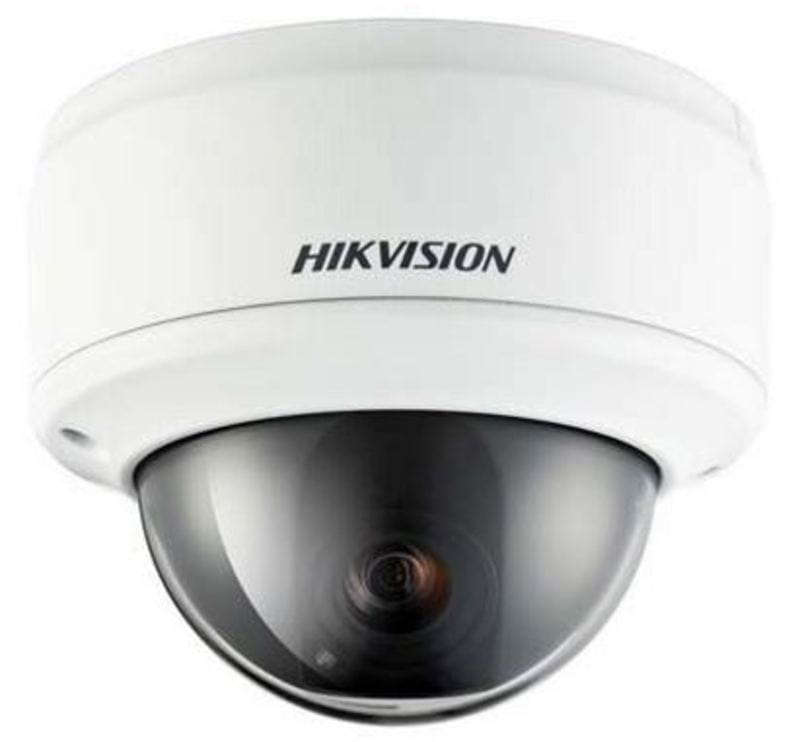

DS-2CD783F-E(4.5-10mm)

Kamera IP kopułkowa wewnętrzna wandaloodporna IK10, 5.0M-7 kl./s, PoE, SDHC, BNC, 4.5~10mm, I/O...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.hikvision.com
1
Key features
Dimensions
Accessories

Specications

DS-2CD783F-E(I)(Z) 5MP Indoor Dome Camera
t 1/2.5p progressive scan CMOS
t Up to 5 megapixel (2560 x 1920) high resolution
t Full HD 1080P real time video
t Day / night auto switch
t IR LEDs optional (-I: up to 20m)
t Vandal-proof housing
t Motorized VF lens optional (-Z)
DS-1227ZJ
(Indoor in-ceiling mount)
DS-1229ZJ
(Vandal-proof wall mount)

Unit: mm

DS-2CD783F-E(I)(Z)
Camera
Image sensor1/2.5p progressive scan CMOS
Min. illumination
0.6 lux@F1.2, AGC on, 0 lux with IR
1 lux@F1.6, AGC on, 0 lux with IR
Shutter time1/25s ~ 1/100,000s
Lens
4.5 ~ 10 mm @F1.6, angle of view: 71° ~ 33.5°
-Z: motorized VF lens, 3.5 ~ 9 mm @F1.6, angle of view: 92° ~ 36°
Lens mount17.5
Auto irisDC drive
Angle adjustmentPan: 0° ~ 360°, tilt: 0° ~ 75°, rotation: 0° ~ 360°
Day & nightElectronic (-I: IR cut lter with auto switch)
Compression Standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate32 Kbps ~ 16 Mbps
Audio compressionG.711 / G.726
Dual streamYes
Max. image resolution2560 x 1920
Frame rate
50 Hz: 6.25 fps (2560 x 1920) 12.5 fps (2048 x 1536) 25 fps (1920 x 1080)
25 fps (1600 x 1200) 25 fps (1280 x 720)
60 Hz: 7.5 fps (2560 x 1920) 15 fps (2048 x 1536) 30 fps (1920 x 1080)
30 fps (1600 x 1200) 30 fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storageNAS (iSCSI optional)
Alarm triggerMotion detection, tampering alarm, network disconnect, IP address conict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
SecurityUser authentication, watermark
System compatibilityONVIF, PSIA, CGI
Interface
Audio input1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio output1-ch 3.5 mm audio interface (line level, 600 )
Communication interface1 RJ45 10M / 100M ethernet port and 1 RS-485 interface
Alarm input2
Alarm output2
Video output1 Vp-p composite output (75 / RCA)
On-board storageBuilt-in SD/SDHC slot, up to 32 GB
Reset buttonYes
General
Operating conditions-10°C ~ 60°C (14°zF ~ 140°zF), humidity 90% or less (non-condensing)
Power supply12 VDC ± 10%, PoE (802.3af)
Power consumption5.5 W ~ 10.5 W (IR LEDs: z2W, motorizzed VzF lens: z3W)
Impact protectionIEC60068-275Eh, 50J; EN50102, up to IK10
IR range-I: approx. 10 ~ 20m
Dimensions 140 x 114 mm ( 5.51p x 4.49p)
Weight1400g (3.09 lbs)
Available models
DS-2CD783F-E, DS-2CD783F-EI, DS-2CD783F-EZ, DS-2CD783F-EIZ
* -I: IR LEDs, up to 20m
* -Z: motorized VF lens
