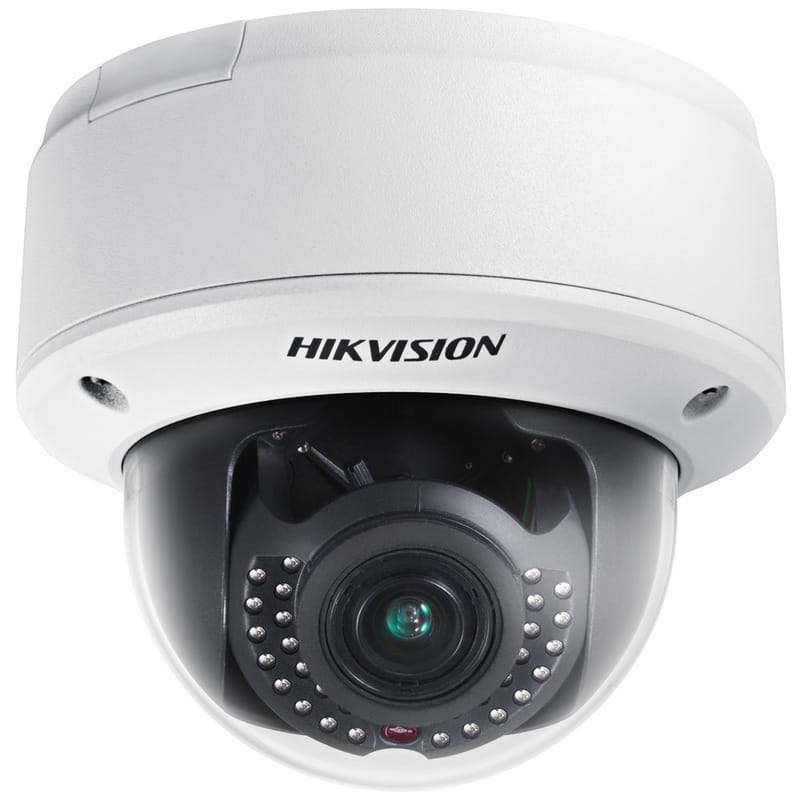

DS-2CD754FWD-EI(2.7-9mm)

Kamera IP kopułkowa wewnętrzna wandaloodporna IK10, oświetlacz 20m, 3.0M-15 kl./s, WDR PRO, PoE, SDHC, BNC, 2.7~9mm, I/O...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.hikvision.com

Key features
Dimensions
Accessories
Specifi cations

WDR

Low Ligh t

1/3”
CMOS
CMOS

• 1/3” progressive scan CMOS
• H.264 / MPEG4 / MJPEG video compression
• Up to 2 megapixel (1920 x 1080) resolution
• Full HD1080P real time video
• 120 dB wide dynamic range
• True day / night
• PoE
• 3-axis adjustment
DS-2CD754FWD-E(I) 2 MP WDR Network Dome Camera
DS-1227ZJ
(Indoor in-ceiling mount)
DS-1229ZJ
(Vandal-proof wall mount)

Unit: mm

DS-2CD754FWD-E(I)
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.1 lux@F1.6, AGC on
-I: 0.1 lux@F1.6, AGC on, 0 lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens
2.7 ~ 9 mm @F1.6
Angle of view: 101° ~ 30.4°
Lens mountΦ14
Auto iris DC drive
Angle adjustment Pan: 0° ~ 360°, tilt: 0° ~ 75°, rotation: 0° ~ 360°
Day & nightElectronic (-I: IR cut fi lter with auto switch)
Wide dynamic range 120 dB
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711
Dual stream Yes
Max. image resolution 1920 x 1080
Frame rate
50 Hz:
25 fps (1920 x 1080)
25 fps (1280 x 720)
60 Hz:
30 fps (1920 x 1080)
30 fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage NAS (iSCSI optional)
Alarm triggerMotion detection, network disconnect , IP address confl ict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP
(SNMP, HTTPS, SIP, FTP, SRTP, 802.1x, IPv6 optional)
Security Password protection, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch microphone input, 3.5 mm mini-jack
Audio output 1-ch 3.5 mm audio interface (line level, 600 Ω)
Communication interface 1 RJ45 10M / 100M ethernet port and 1 RS-485 interface
Alarm input 2
Alarm output 2
Video output 1 Vp-p composite output (75 Ω / RCA)
Local storage Built-in SD/SDHC slot, up to 32 GB
Reset button Yes
General
Operating conditions
-10°C ~ 60°C (14°F ~ 140°F)
Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10% , PoE (802.3af)
Power consumption
5.5W max.
-I: 7W max. (7.5W max. with IR cut fi lter on)
Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
IR range -I: approx. 10 ~ 20m
DimensionsΦ 140 x 114 mm (Φ 5.51” x 4.49”)
Weight 1400g (3.09 lbs)
Available Models
DS-2CD754FWD-E,DS-2CD754FWD-EI

HD Video
