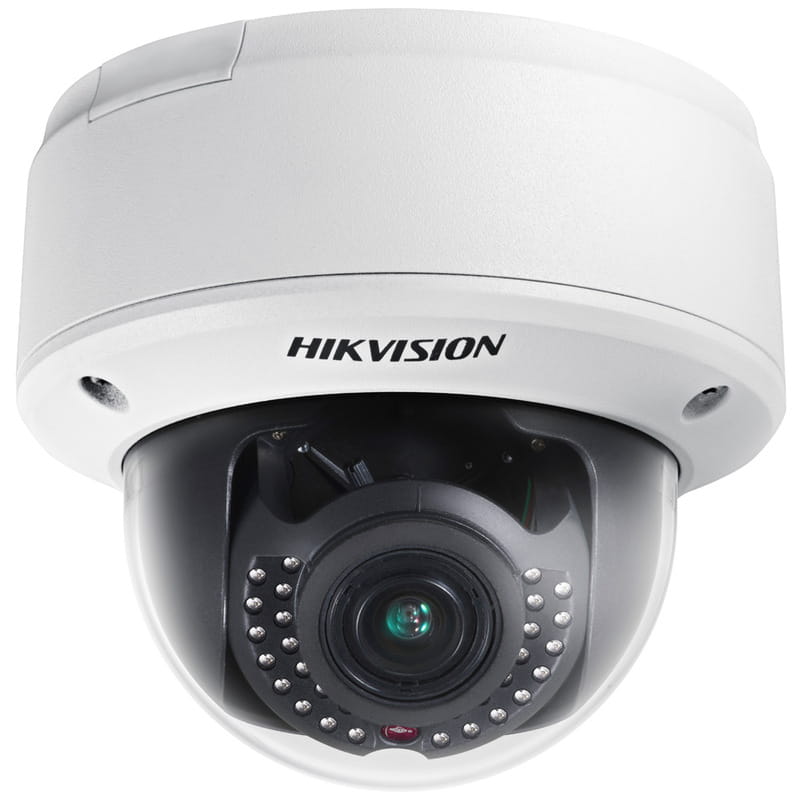

DS-2CD754F-EI(2.7-9mm)

Kamera IP kopułkowa wewnętrzna wandaloodporna IK10, oświetlacz 20m, 3.0M-15 kl./s, PoE, SDHC, BNC, 2.7~9mm, I/O...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.hikvision.com

2

Key features
Dimensions
Accessories


Specifications


DS-2CD754F-E(I)(Z) 3MP Indoor Dome Camera
DS-1227ZJ
(Indoor in-ceiling mount)
DS-1229ZJ
(Vandal-proof wall mount)

Unit: mm

• 1/2.5” progressive scan CMOS
• Up to 3 megapixel (2048 x 1536) resolution
• Full HD 1080P real time video
• Day / night auto switch
• IR LEDs optional (-I, up to 20m)
• Motorized VF lens optional (-Z)
• Vandal-proof housing

DS-2CD754F-E(I)(Z)
Camera
Image sensor 1/2.5” progressive scan CMOS
Min. illumination
0.6 lux@F1.2, AGC ON, 0 lux with IR
1 lux@F1.6, AGC ON, 0 lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens
2.7 ~ 9 mm @F1.6, angle of view: 101° ~ 30.4°
-Z: motorized VF lens
Lens mountΦ14
Auto iris DC drive
Angle adjustment Pan: 0° ~ 360°, tilt: 0° ~ 75°, rotation: 0° ~ 360°
Day & night Electronic (-I: IR cut filter with auto switch)
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Audio compression G.711 / G.726
Dual stream Yes
Max. image resolution 2048 x 1536
Frame rate
50 Hz: 12.5 fps (2048 x 1536) 25 fps (1920 x 1080) 25 fps (1600 x 1200)
60 Hz: 15 fps (2048 x 1536) 30 fps (1920 x 1080) 30 fps (1600 x 1200)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage NAS ( iSCSI optional)
Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional)
Security User authentication, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Audio input 1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio output 1-ch 3.5 mm audio interface (line level, 600 Ω)
Communication interface 1 RJ45 10M / 100M ethernet port and 1 RS-485 interface
Alarm input 2
Alarm output 2
Video output 1 Vp-p composite output (75 Ω / RCA)
On-board storage Built-in SD/SDHC slot, up to 32 GB
Reset button Yes
General
Operating conditions -10°C ~ 60°C (14°F ~ 140°F) Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption 5.5 W ~ 10.5 W (IR LEDs: +2W, motorized VF lens: +3W)
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
IR range -I: approx 10 to 20 meters
DimensionsΦ 140 x 114 mm (Φ 5.51” x 4.49”)
Weight 1400g (3.09 lbs)
Available models
DS-2CD754F-E, DS-2CD754F-EI, DS-2CD754F-EZ, DS-2CD754F-EIZ
* -I: IR LEDs, up to 20m
* -Z: motorized VF lens

1/2.5 ”

CMOS
CMOS

HD Video
IR

Motoriz ed
VF Lens
