DS-2CD7153-E(4mm)

Kamera IP mini-kopułkowa IP66 wandaloodporna IK10, 2.0M-15 kl./s, PoE, 4mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

www.hikvision.com

Key features
Dimensions
Accessories

Specifications

1/3”

CMOS
CMOS

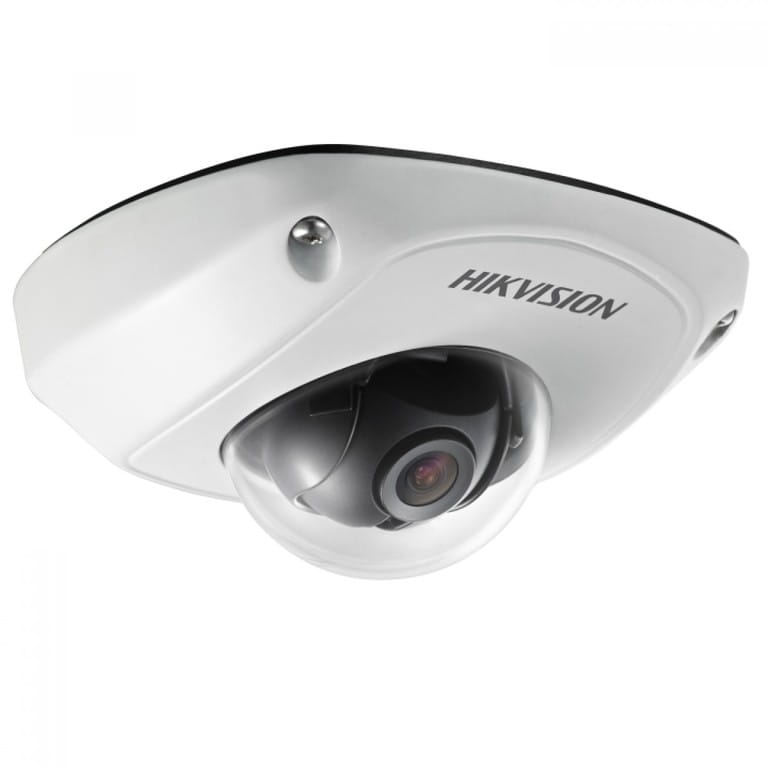

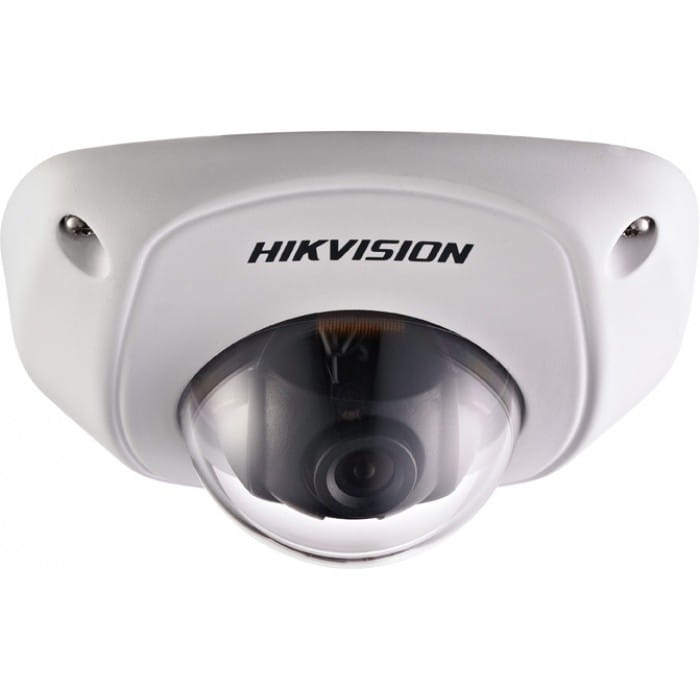

DS-2CD7153-E 2 MP Network Mini Dome Camera
• 1/3” progressive scan CMOS
• H.264 / MPEG4 / MJPEG video compression
• Up to 2 megapixel resolution
• HD 720P real time video
• Day / night auto switch
• PoE
• 3-axis adjustment

DS-2CD7153-E
Camera
Image sensor 1/3” progressive scan CMOS
Min. illumination
0.5 lux@F1.2, AGC on, 0.1 lux@F1.2, AGC on, sens-up x 5
1.1 lux@F1.8, AGC on, 0.2 lux@F1.8, AGC on, sens-up x 5
Shutter time 1/25s ~ 1/100,000s
Lens
4 mm @F1.8 (2.8, 6, 8mm optional)
Angle of view: 71°
Lens mount M12
Angle adjustment Pan: ± 15°, tilt: 0 ~ 90°, rotation: ± 15°
Day & night Electronic
Compression standard
Video compression H.264 / MPEG4 / MJPEG
Bit rate 32 Kbps ~ 16 Mbps
Dual stream Yes
Max. image resolution 1600 x 1200
Frame rate
50 Hz:
12.5 fps (1600 x 1200)
12.5 fps (1600 x 912)
25 fps (1280 x 960)
25 fps (1280 x 720)
60 Hz:
15 fps (1600 x 1200)
15 fps (1600 x 912)
25 fps (1280 x 960)
30 fps (1280 x 720)
Image settings Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage NAS (iSCSI optional)
Alarm trigger Motion detection
Protocols
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP
(SNMP, HTTPS, SIP, FTP, SRTP, 802.1x, IPv6 optional)
Security Password protection, watermark
System compatibility ONVIF, PSIA, CGI
Interface
Communication interface 1 RJ45 10M / 100M ethernet port
Reset button Yes
General
Operating conditions
-10°C ~ 60°C (14°F ~ 140°F)
Humidity 90% or less (non-condensing)
Power supply 12 VDC ± 10%, PoE (802.3af)
Power consumption 4W max.
Impact protection IEC60068-275Eh, 50J; EN50102, up to IK10
Weather-proof rating IP66
Dimensions
99.9 x 97.5 x 46.5 mm
(3.93” x 3.84” x 1.83”)
Weight 250g (0.55 lbs)
Available models
DS-2CD7153-E

Unit: mm

IP66

HD Video
