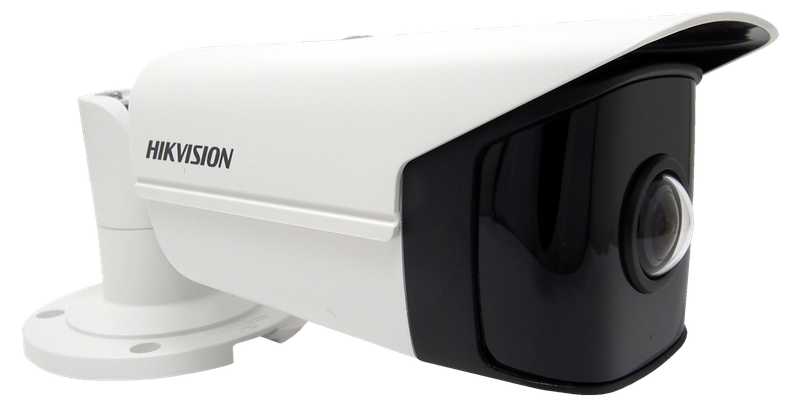

DS-2CD2T45G0P-I(1.68mm)

Kamera typu Bullet 4MP IR; przetwornik 1/2.7" Progressive Scan CMOS; min. Oświetlenie: 0.028 Lux @ (F2.0, AGC ON), 0 Lux z IR; Obiektyw 1.68 mm, F2.0 HFOV: 180st., VFOV: 101st., DFOV: 180st.; Zasięg IR do 20m, dodatkowe światło smart; rozdzielczość 2688 x 1520, kompresja H.265+/H.265/H.264+/H.264, Funkcje smart: detekcja przekroczenia linii, detekcja intruza, detekcja pozostawienia/ zabrania przedmiotu, detekcja twarzy, detekcja nagłej zmiany sceny; BLC, HLC, EIS, zniekształcenie obiektywu,3D DNR; slot na kartę micro SD/SDHC/SDXC do 256 GB; Zasilanie 12 VDC +/- 25%; PoE (802.3at, class 4); Waga w przybliżeniu 570g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2T45G0P-I
4MP IR Bullet Network Camera









● 1/2.7" Progressive Scan CMOS
● 2688 x 1520 @ 25fps
● 1.68 mm ultra wide angle fixed lens
● 120dB WDR


DORI
The DORI (detect, observe, recognize, identify) distance
gives the general idea of the camera ability to distinguish
persons or objects within its field of view.
It is calculated based on the camera sensor specification
and the criteria given by EN 62676-4: 2015.
● H.265+, H.265, H.264+, H.264
● Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
● IP67
DORI Detect Observe Recognize Identify
Distance 3.6 m 1.4 m 0.8 m 0.4 m

































Specifications

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night ICR Cut
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type 1.68 mm
Focus Fixed
Aperture F2.0
FOV Horizontal: 180°, vertical: 101°, diagonal: 180°
Lens Mount M12
Illuminator
IR Range 20 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25fps (2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 24fps (2688 x 1520), 30fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264 /MJPEG
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Bit Rate Control CBR/VBR
Stream Type Main stream, sub-stream
Scalable Video Coding (SVC) H.264 and H.265
Smart Feature-Set
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object
removal detection, face detection, scene change detection



Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture.
Trigger recording: memory card, network storage, pre-record and post-record.
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email. Trigger notification:
HTTP, ISAPI, alarm output, Email
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Image Enhancement BLC, HLC, EIS, Lens distortion,3D DNR
Image Setting Saturation, brightness, contrast, sharpness, rotate mode, white balance, AGC
Day/Night Switch Day/Night/Auto/Schedule
SNR ≥ 50 dB
Privacy Mask 4 regions of privacy mask
Network
Network Storage
micro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network
replenishment (ANR)
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: Chrome 45.0+, Firefox 52.0+
Plug-in free live view: Chrome 41.0+, Firefox 30.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
General
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Privacy mask, heartbeat, mirror, flash log, password reset via e-mail, pixel counter
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%; PoE (802.3at, class 4)
Power Consumption and Current 12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W



Power Interface Φ5.5 mm coaxial power plug
Material Metal
Dimensions
Camera: Φ105 x 278 mm (Φ4.1″ x 10.9″)
With package: 386 x 156 x 155 mm (15.20″ x 6.14″ x 6.10″)
Weight
Camera: 570 g (1.26 lb.)
With package: 760 g (1.68 lb.)
Approval
Class Class B
Protection IP67
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-
1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA
(IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.
Available Model
DS-2CD2T45G0P-I(1.68 mm)
Dimension
62
.6
(2
.5
")
83
.8
(3
.3
")
62.6 (2.5")
278.4 (11.0")
264.5 (10.4")
158.1 (6.2")
Ø105 (Ø0.4")
Unit: mm (inch)



05060120191203

Accessory




DS-1275ZJ-SUS
Vertical Pole Mount
DS-1260ZJ
Junction Box
DS-1276ZJ-SUS
Corner Mount

DS-1280ZJ-S DS-1275ZJ-S-SUS
Junction Box Vertical Pole Mount
