DS-2CD2T32-I8(6MM)

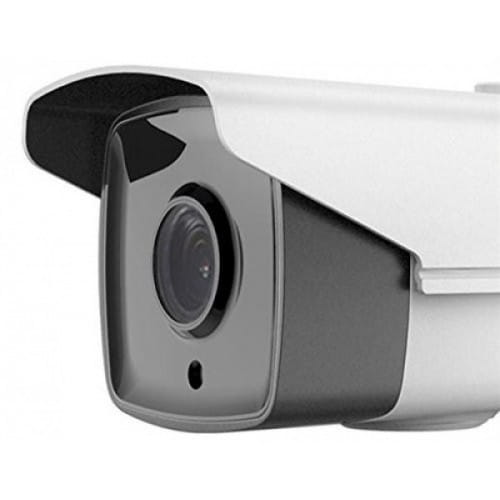

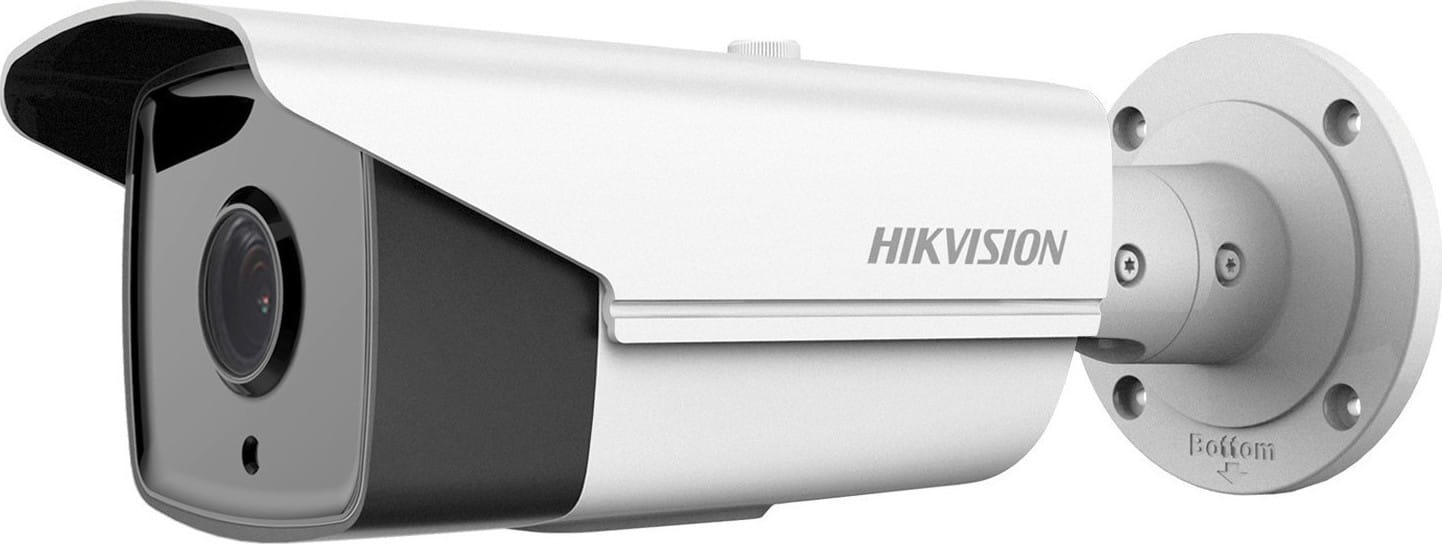

Kamera IP Hikvision w obudowie tulejowej, rozdzielczość 3 MP - 2048×1536@20kl/s, 1280×960@30kl/s, przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.014Lux@ F1.4 (wł. AGC), 0 Lux z IR, 4xEXIR, zasięg IR: 80m, dzień/noc ICR, obiektyw: 6mm/F1.4, kompresja: H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, obudowa IP66, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2T32-I3/I5/I8


Key Features
 Up to 3 megapixel (2048 x 1536) resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 EXIR technology, up to 30/50/80 meters IR range
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 3D DNR
 DWDR
 Ingress Protection level: IP66
 Auto-iris, electronic shutter for different surveillance environments
 Support intrusion detection and line crossing detection
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
 Other functions: reset, heartbeat, mirror, etc.
 3-axis adjustment
Specification
Model
Parameter
DS-2CD2T32-I3/I5/I8
3 Megapixel EXIR Bullet Network Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination
0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm, 6mm, 16mm optional
Angle of view: 70° (4mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise 3D DNR



©2006 – 2014 by HIKVISION. All rights reserved.
2
Reduction
Wide Dynamic
Range
Digital WDR
Compression Standard
Video Compression H.264/ MJPEG
H.264 Compression
Type
Main Profile
Video Bit Rate 32 Kbps – 12 Mbps
Dual Stream Yes
Max. Resolution 2048 x 1536
Frame Rate
50Hz: 20fps @2048 x 1536, 25fps @(1920 x 1080, 1280 x 720)
60Hz: 20fps @2048 x 1536, 30fps @(1920 x 1080, 1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic
Analysis, Tampering alarm, Network disconnect, IP address conflict,
Storage full, Storage error
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
General
Operating
Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply
12 V DC ± 10%
PoE (802.3af)
Power
Consumption
I3: Max. 6W
I5: Max. 7.5W
I8: Max. 10.5W
Ingress Protection IP66



©2006 – 2014 by HIKVISION. All rights reserved.
3
level
IR Range
I3: 30 meters
I5: 50 meters
I8: 80 meters
Dimensions(mm) 299.71 x 86.48 x 85.11(11.8’’ x 3.4’’ x 3.35’’)
Weight 1200g
Order Models
DS-2CD2T32-I3, DS-2CD2T32-I5, DS-2CD2T32-I8
Dimensions
