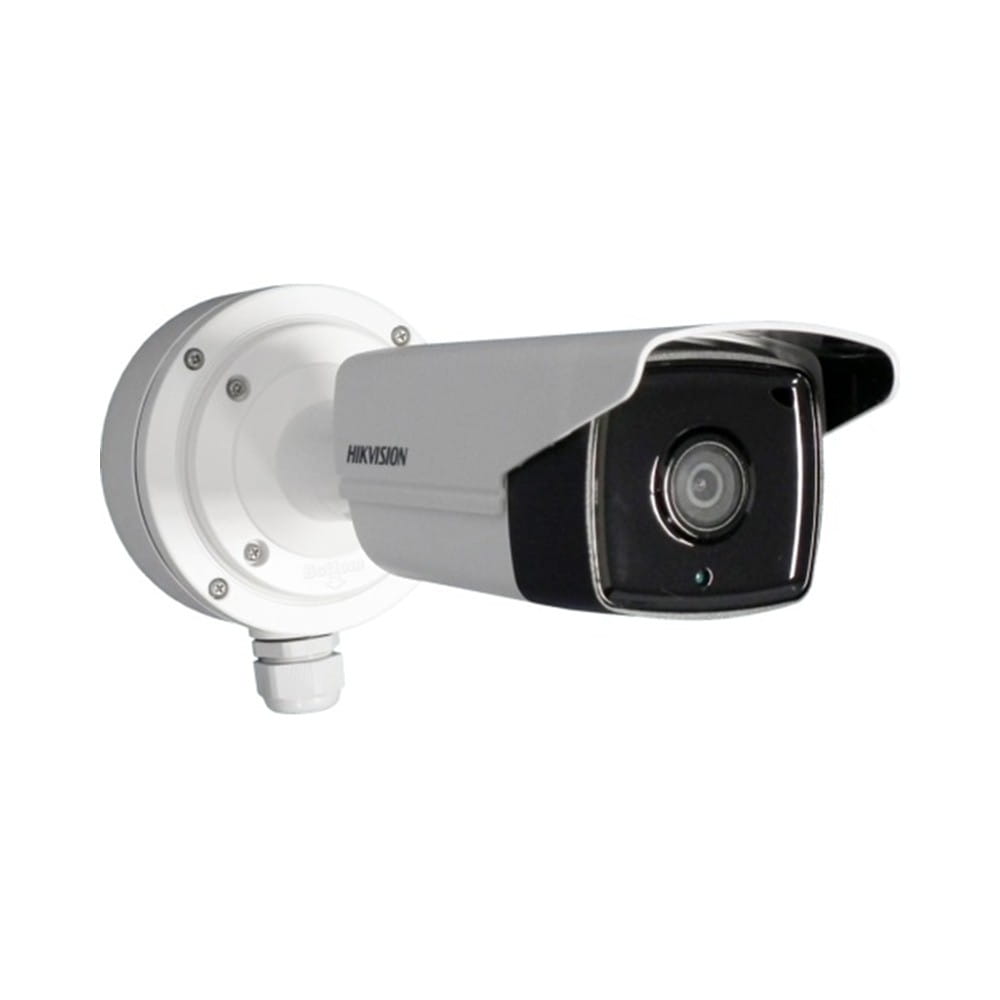

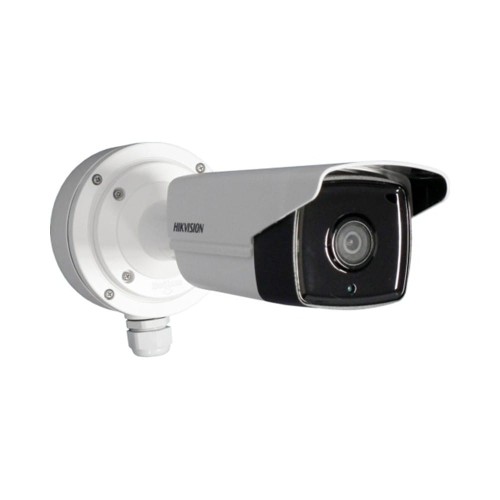

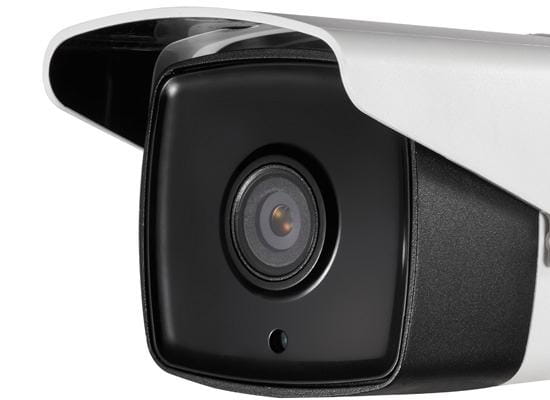

DS-2CD2T22-I8(4MM)

Kamera IP Hikvision w obudowie tulejowej, rozdzielczość 2 MP - 1920×1080@30kl/s, przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.014Lux@ F1.4 (wł. AGC), 0 Lux z IR, 4xEXIR, zasięg IR: 80m, dzień/noc ICR, obiektyw: 4mm/F1.4, kompresja: H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, obudowa IP66, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2T22WD-I3/I5/I8
2.0MP EXIR Network Bullet Camera


 1/2.8” Progressive Scan CMOS
 Up to 2 megapixel resolution
 Full HD1080p real-time video
 120dB Wide Dynamic Range
 3D DNR
 EXIR high performance LEDs
 Up to 30/50/80 meters IR range
 12V DC±10% & PoE(802.3af)
 Support H.264+
 IP66
 Mobile monitoring via EZVIZ or iVMS-4500








Specification
Camera
Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/10,000 s
Slow Shutter Support
Lens (-I3: 4,6mm; -I5: 4,6,12mm; -I8: 6,12,16mm) @F2.0
Lens Mount M12
Day & Night IR cut filter with auto switch
WDR 120dB
Compression Standard

Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 256 Kbps – 16 Mbps
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps(1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)

Image Enhancement BLC/3D DNR/ROI
Image Setting
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web
browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion Detection, Line Crossing detection, Motion detection, Dynamic Analysis, Tampering alarm,
Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security
Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±10%, PoE (802.3af)
Power Consumption -I3: Max. 6W; -I5: Max. 7.5W; -I8: Max. 10.5W
Ingress Protection
level
IP66
IR Range -I3: 30 meters; -I5: 50 meters; -I8: 80 meters
Dimensions 299.71 x 86.48 x 85.11(11.8’’ x 3.4’’ x 3.35’’)
Weight 1200g (2.65 lbs)
Order Model
DS-2CD2T22WD-I3, DS-2CD2T22WD-I5, DS-2CD2T22WD-I8


DS-2CD2T22WD-I3/I5/I8
2.0MP EXIR Bullet
Network Camera
