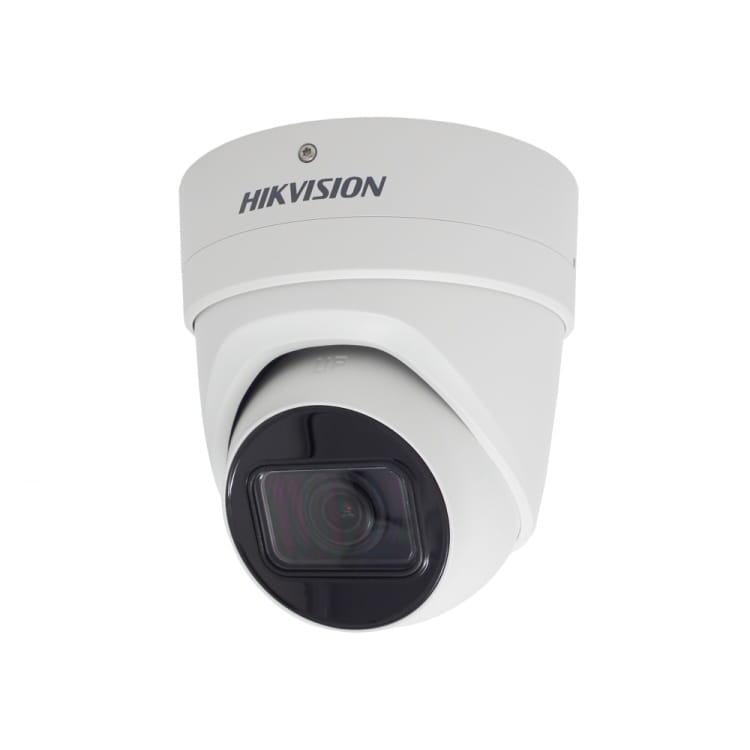

DS-2CD2H45FWD-IZS(2.8-12mm)(BLACK)

Dostępność: 0
Cena: 1 967,00 zł 1967.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 311308650

Opis

Kamera IP Hikvision typu Turret, rozdzielczość 4MP (50Hz: 25 kl/s 2688 x 1520), 1/2.9" Progressive Scan CMOS, czułość: kolor: 0.008 Lux @ F1.2 (wł. AGC), 0.011 Lux @ F1.4 (wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8-12mm/F.4, HFOV 114st. - 32st., VFOV 59st. - 18st., DFOV 141st. - 36.5st., kompresja H265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR/ BLC/HLC, ROI: 1 obszar, kompresj audio: G.711/G.722.1/G.726/MP2L2/PCM. Analityka: detekcja przekroczenia linii, intruza, pozostawienia bagażu, usunięcia przedmiotu, wykrycie twarzy. Funkcje: detekcja ruchu, sabotaż, rozłączenie sieci, konflikt adresów IP, błędne logowanie, błąd HDD, HDD pełny. Ogólne funkcje: ochrona haseł, znak wodny, filtr adresów IP, 3-osiowa regulacja położenia, slot na kartę pamięci: 128 GB, audio: 1 wejśce (liniowe)/ 1 wyjście, alarm: 1 wejście/ 1 wyjście. Temperatura pracy: -30st.C do +60st.C. Zasilanie: 12 VDC/PoE. Wymiary: śr. 135.8 mm x 145.5 mm. Waga: 1220g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2H45FWD-IZS
4 MP IR Vari-focal Network Turret Camera
* BLC/3D DNR/ROI/HLC
* IP67, IK10
* IR range: up to 30 m
* Built-in microSD/SDHC/SDXC card slot, up
to 128 GB
* Color: 0.008 lux @(F1.2, AGC ON), 0.011
lux @(F1.4, AGC ON), 0 lux with IR
* 1/2.5" Progressive Scan CMOS
* 2688 x 1520@30 fps
* 2.8 to 12 mm motorized vari-focal lens
* H.265+, H.265, H.264+, H.264
* 4 Behavior analyses
* 120dB WDR
* Powered by Darkfighter

Key Features



Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length 2.8 to 12 mm
Aperture F1.4
Focus Auto
FOV
Horizontal field of view: 114° to 32°
Vertical field of view: 59° to 18°
Diagonal field of view: 141° to 36.5°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2688 x 1520
Main Stream
50Hz: 25 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
60Hz: 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)







Third Stream
50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client
software or web browser
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.52
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output No
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, terminal block for DC input
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 1 A, max. 11 W
PoE (802.3af, 36V to 57V), 0.4 A to 0.3 A, max. 12.5 W
Protection Level IP67, IK10
Material Metal
Dimensions Φ 135.8 mm x 145.5 mm (Φ 5.4" x 5.7")
Weight
With Package: approx. 1220 g (2.7 lb.)
Camera: approx. 1060 g (2.3 lb.)
Available Model:
DS-2CD2H45FWD-IZS(2.8 to 12 mm)



Φ135.8 mm
(5.4")
145.5 mm
(5.7")46 mm (1.8")
35 mm (1.4")
83.5 mm
(3.3")
Φ 36 mm (1.4")
Φ 4.5 mm
(0.2")









DS-1473ZJ-135
Wall Mount
DS-1471ZJ-135
Pendant Mount
DS-1281ZJ-DM23
Inclined Ceiling
Mount
DS-1475ZJ-SUS
Vertical Pole
Mount
DS-1476ZJ-SUS
Corner Mount
DS-1473ZJ-135B
Wall Mount
with Junction Box





Accessories
05055220180619

Dimensions
