DS-2CD2E20F(4mm)
Opis

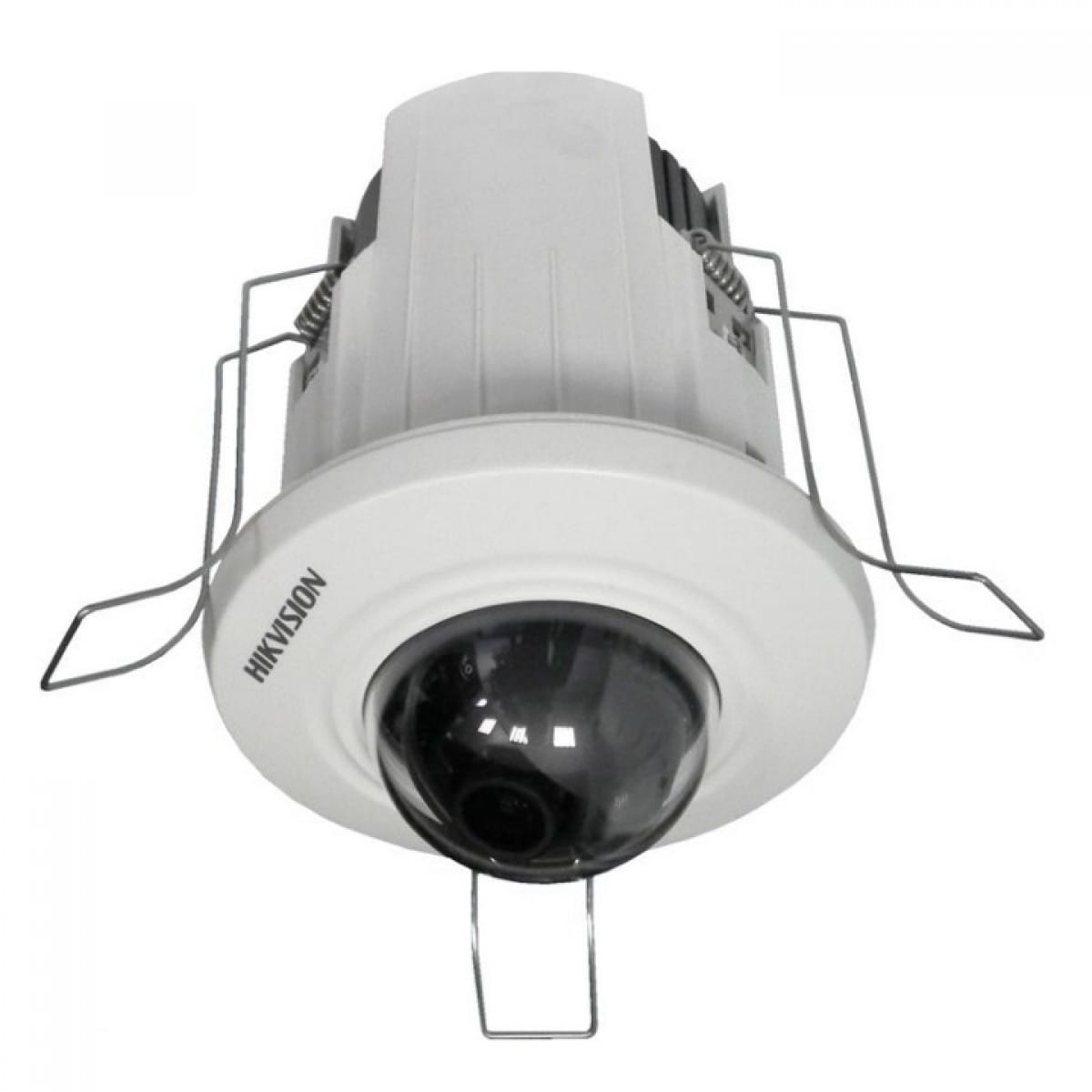

Kamera IP Hikvision w miniaturowej obudowie kopułowej do montażu sufitowego: rozdzielczość 2 MP - 1920×1080@30kl/s, przetwornik: 1/3" Progressive Scan CMOS, czułość: 0.01Lux@ F1.2 (wł. AGC), elektroniczny tryb dzień/noc, wbudowany slot kart pamięci (do 128 GB), obiektyw: 4mm (dostępne obiektywy: 2.8/6/8mm), kompresja: H.264/MJPEG, dwa strumienie, DWDR, 3D DNR, BLC, ROI: 1 obszar, detekcja przekroczenia linii, detekcja naruszenia strefy. Zasilanie 12VDC/PoE....
Gwarancja: 36 mies.
Uwaga! Produkt wycofany z produkcji!
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-2CD2E20F (-W)
2.0MP Recessed Mount Dome
Hikvision understands the importance of workplace aesthetics,
especially in smaller business environments where surveillance
gear can be more conspicuous. The Hikvision 2E Series
Recessed-mount IP Camera features HD resolution, on-board
storage, a Wi-Fi connection, ultra-compact design and a choice
in cover colors to blend in with your business environment,
making this camera the ideal solution for any small business or
office space. The camera is easy to install; prongs adjust to fit
any space and don't require installation tools.
* Up to 1920 x 1080 resolution
* Full HD1080p real-time video
* Efficient encoding capability
* Support SD/SDHC/SDXC card, up to 128GB
* Tool-free installation
* Support DC12V and PoE power supply
* 3D Digital Noise Reduction
* Digital WDR
* Dual-streams
* Backlight Compensation
* Support EZVIZ Cloud service
* Mobile monitoring (IVMS-4500 or EZVIZ app)
* Built-in Wi-Fi optional
Specification
Camera
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination 0.01 Lux @ F1.2, AGC ON
Shutter Speed 1/3s ~ 1/100,000s
Lens Type 4mm fixed lens (2.8mm/6mm lens optional)
Angle of view 4mm: 85°, 2.8mm: 106°, 6mm: 52°
Lens Mount M12
Day & Night Electronic
DNR 3D Digital Noise Reduction
WDR Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Dual streams Support
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps (1920 x 1080, 1280 x 960,1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960,1280 x 720)
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
D/N Switch Auto/Schedule/Triggered by Alarm In
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
DS-2CD2E20F (-W)
2.0MP Recessed Mount Dome
Network Camera
Wi-Fi * only for –W models
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Output Power
11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Reception Sensitivity
11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment.
General
Operating Conditions -10 °C ~ 40 °C (-14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 4.2W
Dimensions Φ93.9x121.6
Weight 200g
Order Models
DS-2CD2E20F, DS-2CD2E20F-W
Accessories
Lens Cover
Golden Color
Lens Cover
Silver Color
Lens Cover
Golden Color
Dimensions
DS-2CD2E20F (-W)
2.0MP Recessed Mount Dome
Network Camera
