DS-2CD2955FWD(1.05mm)

Dostępność: 0
Cena: 1 887,00 zł 1887.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 300821639

Opis

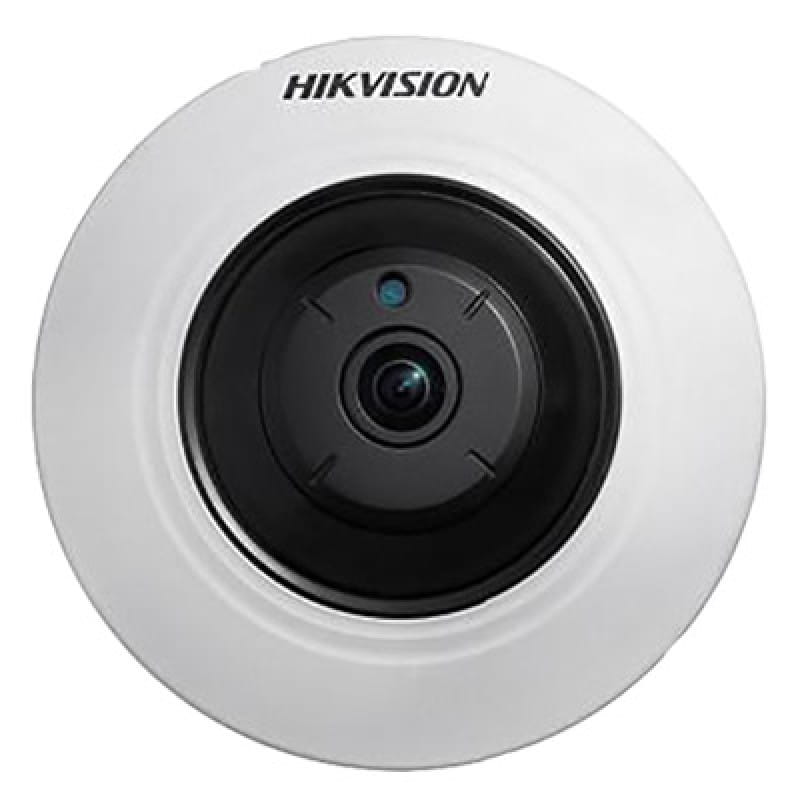

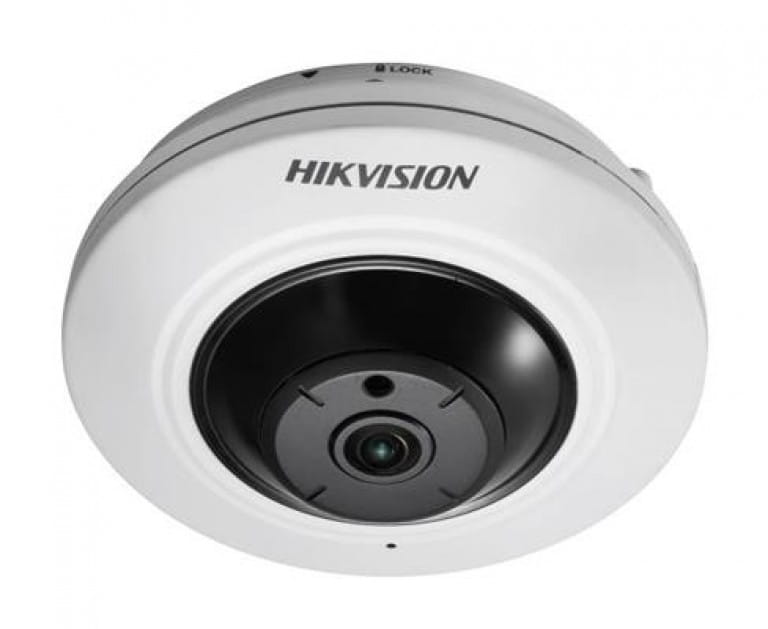

Kamera IP FishEye Hikvision, rozdzielczość 5MP (max. 2560x1920@30kl/s), przetwornik: 1/2.9" Progressive Scan CMOS, czułość: 0.01Lux@(F1.2, wł. AGC), wbudowany slot kart pamięci (do 128 GB), obiektyw: 1.05mm/F2.2, kompresja: H.265+/H.265/H.264+/H.264/MJPEG, BLC, WDR 10dB, ROI, 3D DNR, Defog, detekcja przekroczenia linii, detekcja intruza. Wymiary: śr.119.9x41.2. Temperatura pracy: -10st.C do +50st.C. Zasilanie 12VDC/PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2955FWD-I(1.05mm)

Kod produktu zamiennego: 300819082

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2CD2955FWD-I(S)
5 MP Network Fisheye Camera
Key Features
 Up to 5 megapixel high resolution
 2560x1920 @30fps
 H.265, H.265+, H.264+, H.264
 Support 14 display modes
 FOV: horizontal field of view 180°, vertical
field of view 180°
 Dual video streams
 Digital Noise Reduction
 Support on-board storage, up to 128 G

 DC12V & PoE (802.3af)
 Up to 8 m IR range
 -S: Audio/Alarm IO
 Mobile Monitoring via Hik-Connect or
iVMS-4500




Specification
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Lens 1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
Lens Mount M12
Day &Night IR cult filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120 dB
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2
Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Max. Resolution 2560 x 1920
Main Stream
Max. Frame Rate
50Hz: 25fps (2560 x 1920, 2048 x 1536, 1280 x 960)
60Hz: 30fps (2560 x 1920, 2048 x 1536, 1280 x 960)
Sub Stream
Max. Frame Rate
50Hz: 25fps (352x 288, 704 x 576)
60Hz: 30fps (352 x 240, 704 x 576)
Image Settings Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser
Image Enhancement WDR/3D DNR/Backlight Compensation/Defog
Day/Night Switch Auto/Schedule/Triggered by Alarm In (-S model supports)
Region of Interest Support 1 fixed region for each stream
Lens Distortion Correction Support
Target Cropping Support
Live View Display
Mount Type Support table, wall, and ceiling
Display Mode
Support 14 display modes in total (including display modes of different mount types):
Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ,
360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ,
Panorama View, Panorama + 3PTZ, Panorama + 8PTZ
Audio (-S)
Environment Noise Filtering Support
Audio I/O Support
Sampling Rate Max. 48kHz
Network
Network Storage NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR











Unit: mm(inch)



Alarm Trigger
Video tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal
login
Detection Motion detection, dynamic analysis, intrusion detection, line crossing detection
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
One-key reset, anti-flicker, fassword protection, privacy mask, IP Address filtering, heartbeat,
watermark
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio (-S) 1 audio input (line in), 1 audio output interface
Alarm (-S) 1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.)
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 G
General
Operating Conditions -10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Supply
DC 12V ± 25%, 2A, 5W
PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W
IR Range Up to 8 m
Dimensions Φ 119.9 x 41.2 mm (Φ 4.72″ x 1.62″)
Weight 600 g (1.32 lbs.)
Available Models
DS-2CD2955FWD-I, DS-2CD2955FWD-IS
With –S model: supports 1 audio input, 1 audio output, 1 alarm input, 1 alarm output.
Dimensions









DS-1294ZJ
Wall mount
DS-1281ZJ-DM27
Inclined ceiling mount
DS-1297ZJ
Pendant mount
(extendable)
DS-1299ZJ
Pendant mount



Accessories


05040220161123
