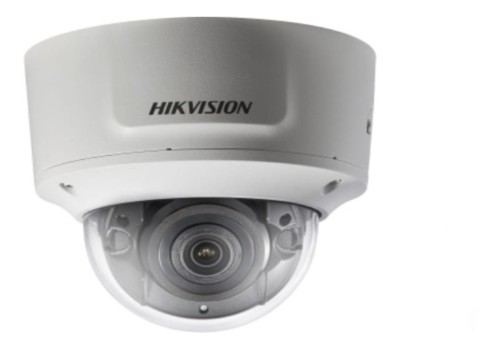

DS-2CD2783G1-IZS(2.8-12mm)

Kamera IP Hikvision w obudowie kopułowej, rozdzielczość 8MP (50Hz: 12.5 kl/s; 3840x2160), 1/2.5" Progressive Scan CMOS, czułość: kolor: 0.01 Lux @ F1.2 (wł. AGC), 0.018 Lux @ F1.6 (wł. AGC), 0 Lux i IR, zasięg IR do 30m, dzień/noc ICR, obiektyw: 2.8-12mm/F1.6, HFOV 105st. - 34.5st., VFOV 55st. - 19st., DFOV 125st. - 40st., kompresja H.265+/H.265/H.264+/H.264/MJPEG, trzy strumienie, WDR: 120dB, 3D DNR/ BLC/HLC, IP67, IK10, ROI: 1 obszar, kompresja audio: G.711/G.722.1/G.726/MP2L2/PCM. Analityka: detekcja przekroczenia linii, detekcja intruza, wykrycie twarzy. Funkcje: detekcja ruchu, sabotaż, rozłączenie sieci, konflikt adresów IP, błędne logowanie, błąd HDD, HDD pełny. Ogólne funkcje: przycisk resetu, ochrona przed migotaniem, odbicie lustrzane, ochrona haseł, maski prywatności, znak wodny, filtrowanie adresów IP,3-osiowa regulacja położenia, slot na kartę pamięci: 128 GB, audio: 1 wejśce (liniowe)/ 1 wyjście, alarm: 1 wejście/ 1 wyjście. Temperatura pracy: -30st.C do +60st.C. Zasilanie: 12 VDC/5.5mm przewód koncentryczny/PoE. Wymiary: śr.153.4 x 111.6 mm. Waga: 835g....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2CD2783G2-IZS(2.8-12mm)

Kod produktu zamiennego: 311316146

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CD2783G1-IZ(S)
8 MP IR Varifocal Dome Network Camera
* BLC/3D DNR/ROI/HLC
* IP67, IK10
* Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB

* 1/2.5" Progressive Scan CMOS
* 3840 x 2160 @15 fps
* 2.8 to 12 mm varifocal lens
* Color: 0.01 Lux @ (F1.2, AGC ON), 0.018
Lux @ (F1.6, AGC ON), 0 Lux with IR
* H.265+, H.265, H.264+, H.264
* 2 Behavior analyses
* 120dB WDR

Key Features




Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Lens Type Motorized
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 105° to 34.5°
Vertical field of view: 55° to 19°
Diagonal field of view: 125° to 40°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 3840 x 2160
Main Stream
50Hz: 12.5 fps (3840 x 2160), 20fps (3072 x 1728), 25 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Third Stream
50Hz: 25fps (1280 x720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web





browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
* Note: When the main stream resolution is 3840 x 2160, max frame rate is 12.5 fps (50Hz)/15 fps (60Hz) for all streams. When the
main stream resolution is 3072 x 1728, max frame rate is 20 fps for all streams.
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio (-S) 1 input (line in), 1 output (line out), mono sound, terminal block
Alarm (-S) 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.8A, max. 10W
PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
Protection Level IP67, IK10
Material Metal
Dimensions Camera: Φ 153.3 x 111.6mm (Φ 6" x 4.4")
Weight
Camera: Approx. 835g (1.8 lb.)
With Package: Approx. 1305g (2.9 lb.)
Available Model:
DS-2CD2783G1-IZ (2.8 to 12 mm), DS-2CD2783G1-IZS (2.8 to 12 mm)








Unit: mm(inch)
153.3(6")
100.4(4")
111
.6
(4
.4
")
46(1.8")
83
.5
(3
.3
")








DS-1471ZJ-155
Pendant Mount
DS-1473ZJ-155
Wall Mount
DS-1475ZJ-SUS
Vertical Pole Mount
DS-1476ZJ-SUS
Corner Mount



DS-1280ZJ-DM55
Junction Box
DS-1273ZJ-155(Black)
Wall Mount
DS-1475ZJ-SUS(Black)
Vertical Pole Mount
DS-1276ZJ-SUS(Black)
Corner Mount


DS-1280ZJ-DM55(Black)
Junction Box


Accessories
Dimensions
